9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
4.23

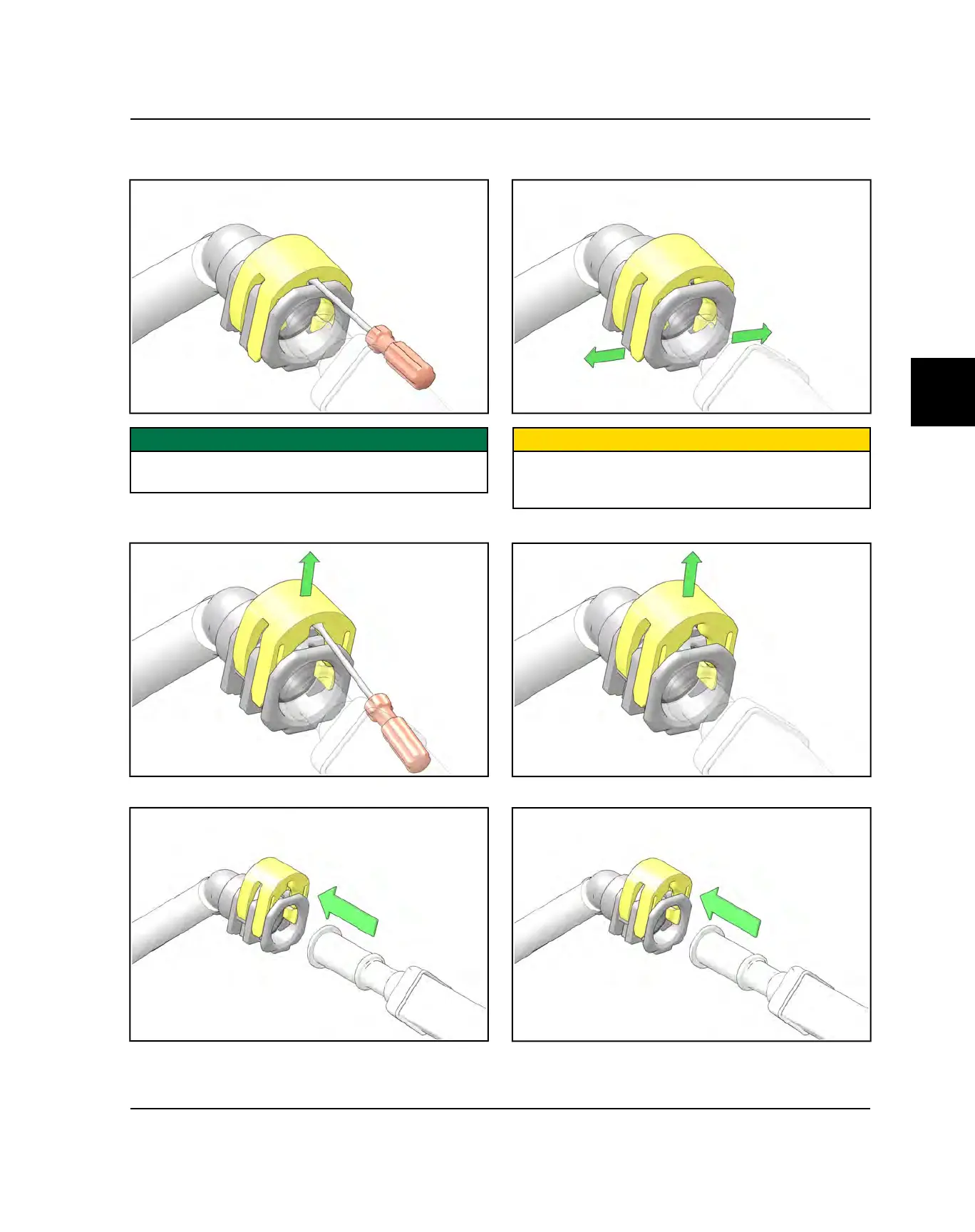

1. Insert a #1 flat blade screw driver into the pry slot on
the top of the retaining clip.
IMPORTANT
To prevent damage to the retaining clip, be sure to use
a flat blade screwdriver that fits into the pry slot.
2. Gently pry the retaining clip upwards into the open
position.
3. Remove quick connect from the fuel fitting.
Hand Method:
4. Gently pull outward on retaining tabs to unlock
retaining clip.
CAUTION
Do not over-pry or excessively bend the retaining tabs.
This can damage the retaining clip, and require
replacement of the fuel line assembly.
5. Push retaining clip upward into the open position.
6. Remove quick connect from the fuel fitting.
Replacement Needs:
FUEL SYSTEM
