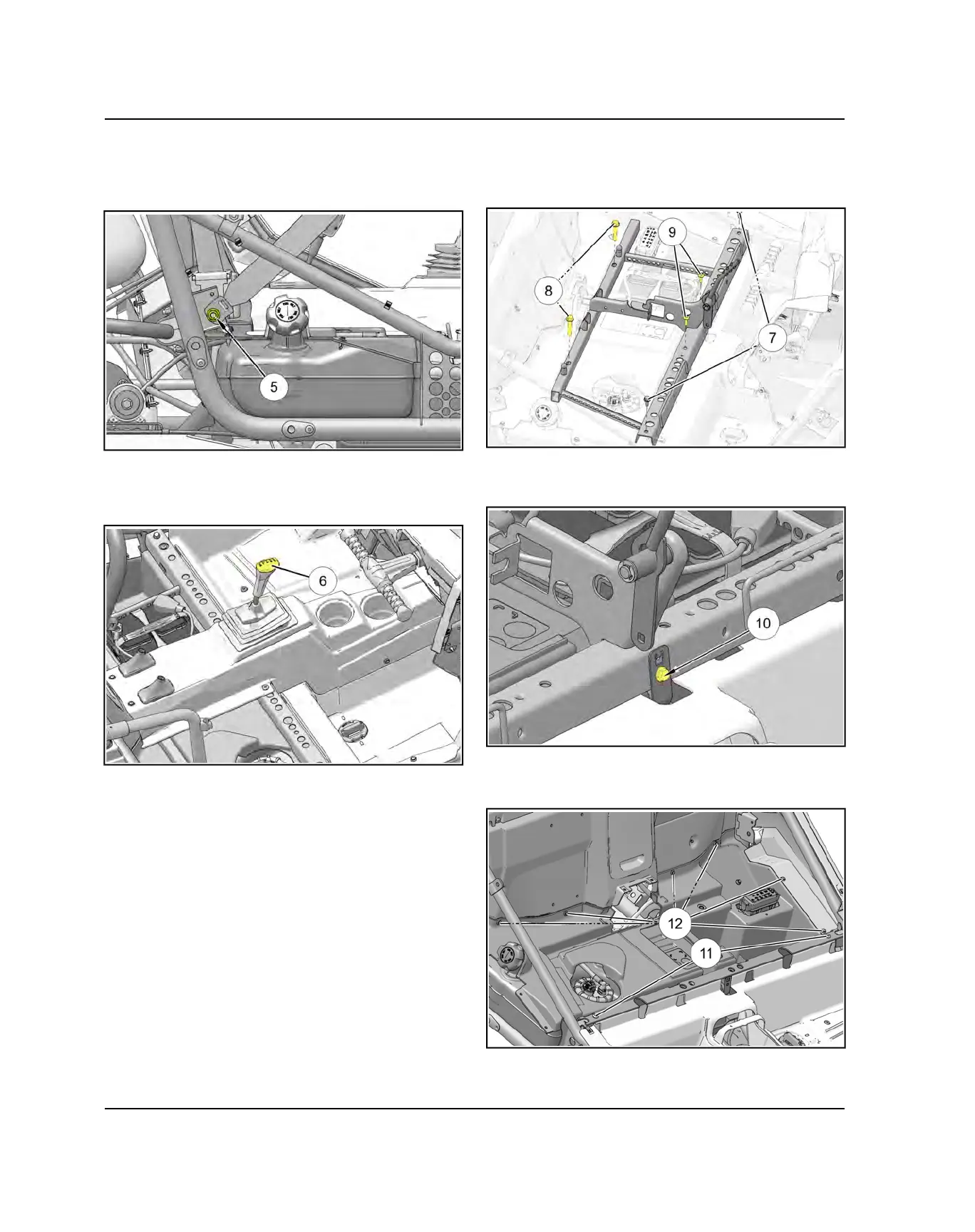

6. Remove the fastener
t
retaining the seat belt
mechanism to the frame near the right rear portion of
the fuel tank. Once removed, place the mechanism
in the rear cargo box to keep it out of the way.
7. Remove the shift knob
y
using a flat blade
screwdriver and T25 Torx driver. Remove the Torx
screws retaining the center console. Remove the
console from the vehicle.
8. Remove the shift linkage from the shifter.
9. Remove the two bolts
u
and two T40 Torx screws
o
retaining the front of the seat base frame and two
rear bolts
i
. Remove the rear seat base assembly
from the vehicle.
10. Remove the T-40 Torx screw
a
retaining the fuel
tank strap to the seat base frame. Remove the strap
from the other side of the seat base frame as well.
11. Remove the Torx screws
s
and plastic rivets
d
retaining the block-off panel using a T40 Torx driver.
Remove the panel from the vehicle.
