9928492 R04 - 2017-2018 RZR XP 1000 / XP4 1000 Service Manual
© Copyright Polaris Industries Inc.
6.15

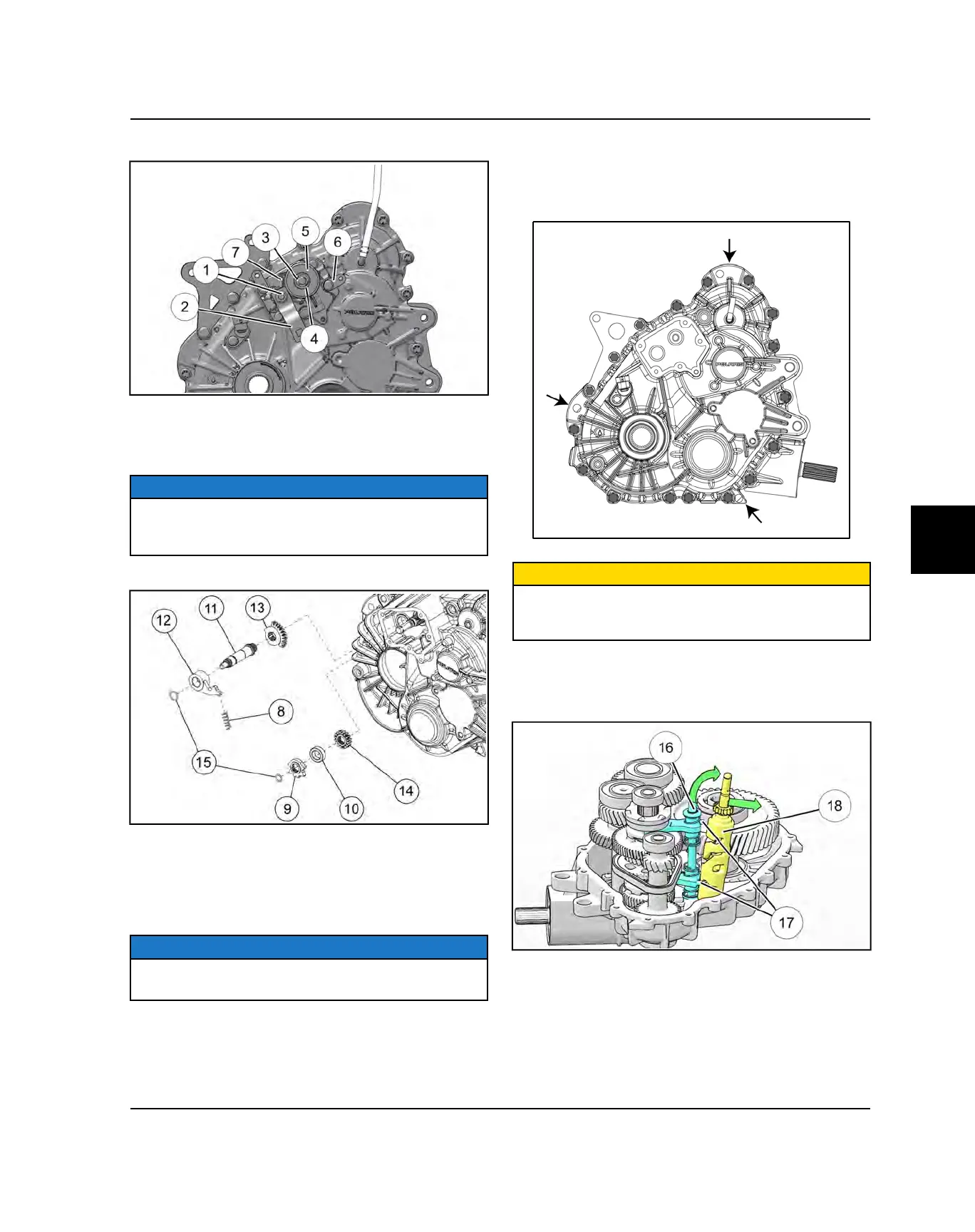

3. Remove the bell crank nut
q
and bell crank
w
.
4. Remove E-clip
e
that retains spring and flat washers
r
and gear switch
t
. Remove the switch.
5. Remove the sector cover bolts
y
and remove the
sector cover
u
.
NOTE
Removal can be aided by using your thumbs to press in
on the shafts while pulling out the cover with your
fingers.
6. Remove the compression spring
i
.
7. Remove the detent star
o
. Note how the detent star
fits onto the splined shaft with the raised edge facing
outward for reassembly.
8. Remove the spacer
a
.
9. Remove the shift shaft
s
, detent pawl
d
and the shift
sector gears
f
and
g
.
NOTE
Note the timing marks on the shift gears for reassembly
purposes.
10.Remove the O-rings
h
from each shaft and discard.
Use new O-rings upon assembly.
11. Remove all the transmission case bolts. Using suit-
able pry bars, remove the cover using the designated
pry points (indicated by the black arrows in the illus-
tration below).
CAUTION
Do not pry on case sealing surfaces.
Use only the designated pry points on the
transmission.
12.Lift up on the shift shaft rail
j
and move the rail
assembly rearward to allow the shift fork pins
k
to be
removed from the shift drum
l
. Remove the shift
drum from the transmission housing.
TRANSMISSION
