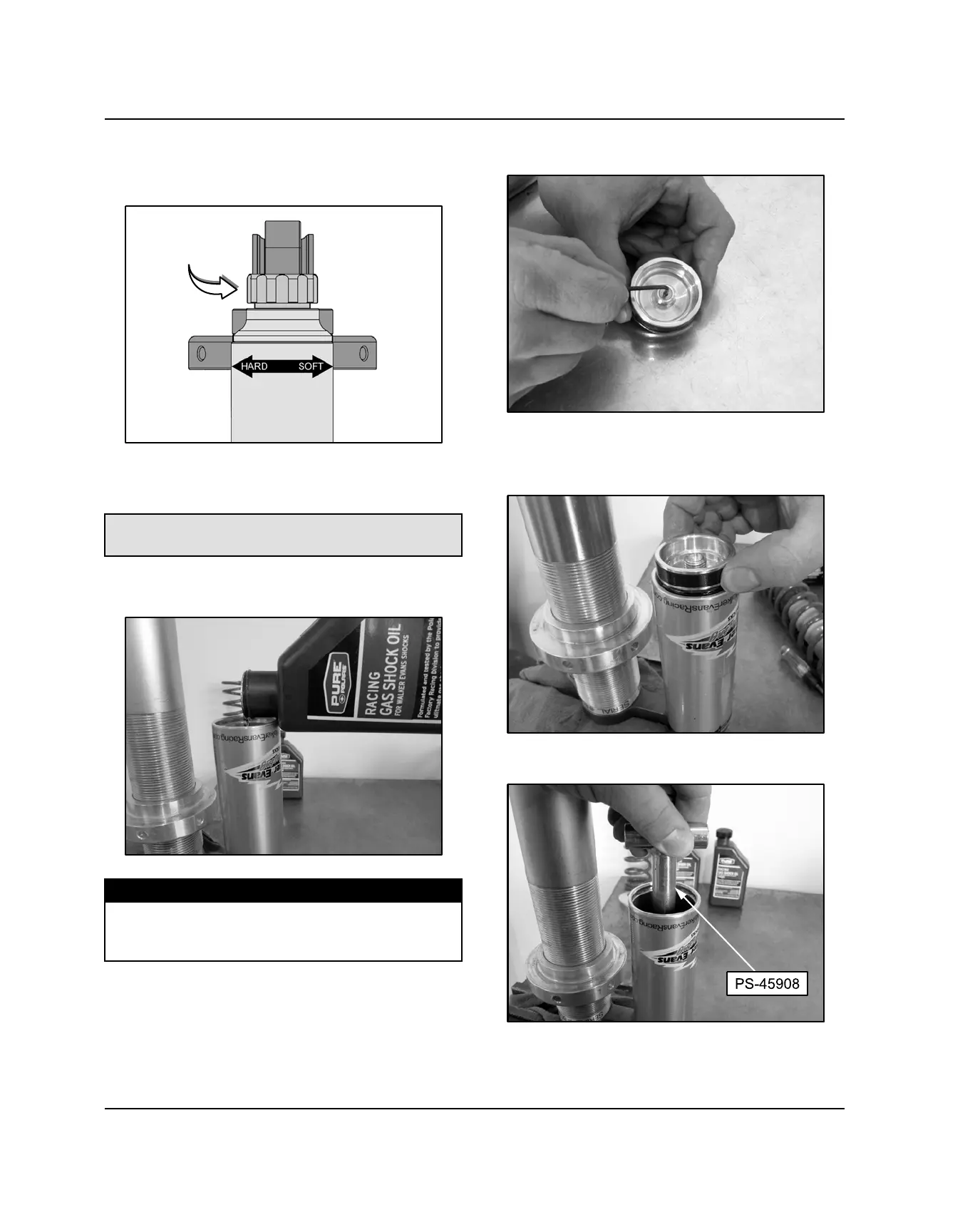

10. Turn the compression adjuster knob counter-
clockwise (soft) until it stops, so damping is in the full
open position.
11. Use the appropriate shock body holding tool to
properly secure the shock assembly into a vice for
service.
Front Shock Body Holding Tool: PU-50979
Rear Shock Body Holding Tool: PU-50938
12. Fill the shock body and remote reservoir 1/2 full of
the recommended gas shock oil.
FLUID CAPACITY
Recommended Shock Oil:
Racing Gas Shock Oil (PN 2874124) (Quart)
10 Weight for Walker Evans Shocks
13. Using a 3/32" Allen wrench, remove IFP bleed screw.
14. Apply a thin film of oil to IFP O-ring and wear band.
Insert IFP into reservoir until completely submerged.
Allow air to escape as you install the piston.
15. Screw IFP Tool (PS-45908) onto the floating piston.
