Polaris Victory Cross Roads User Manual

17
Identification

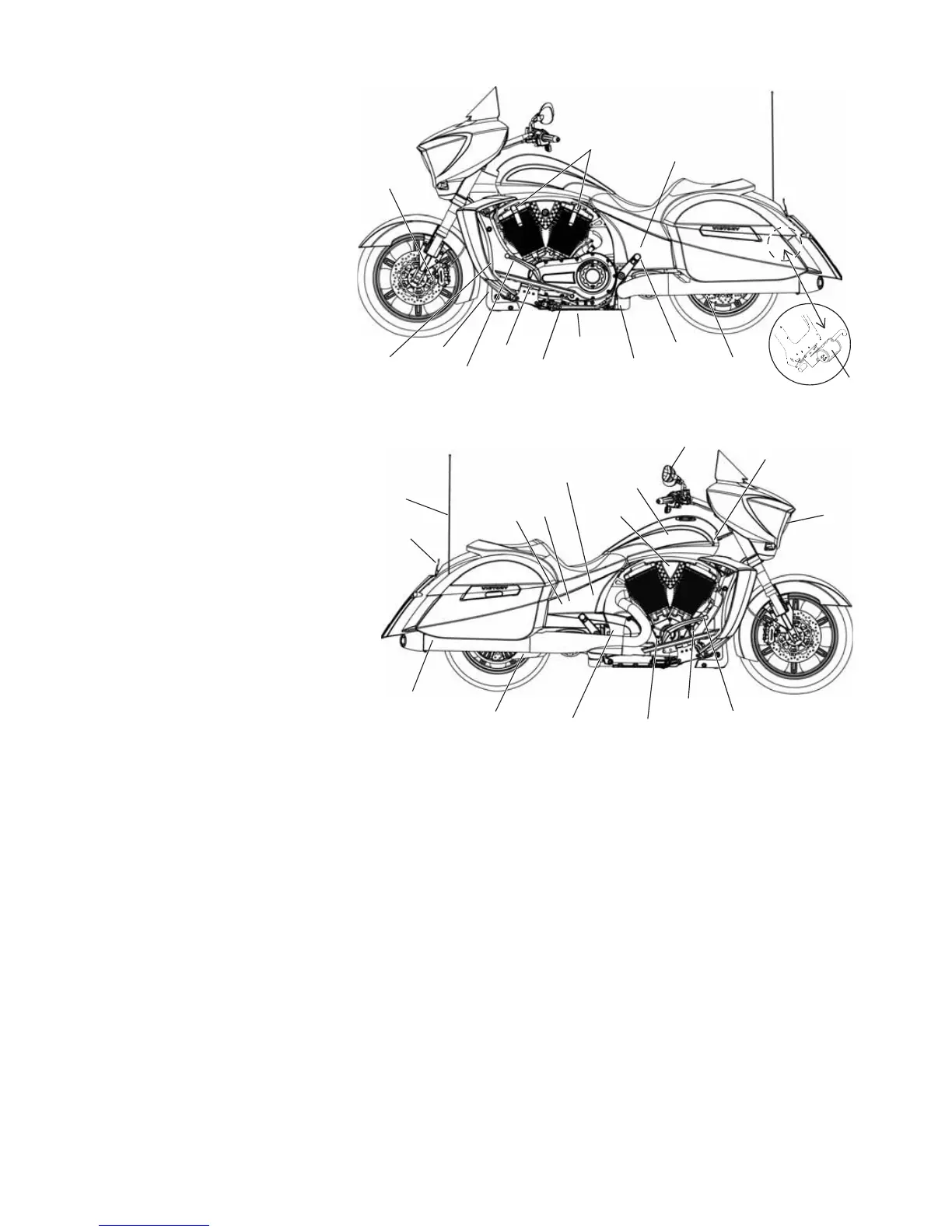

Left Side View
1. Spark Plugs
2. Front Brake Caliper
3. Oil Cooler
4. Battery
5. Gear Shift Pedal
6. Operator Footrest
7. Sidestand
8. Oil Drain Plug
9. Oil Filter
10. Passenger Footpeg
11. Rear Brake Caliper
12. Evaporative Emissions
Canister
13. Diagnostic Connector
(under cover)
Right Side View
1. Exhaust Mufflers
2. Drive Belt Guard
3. Drive Sprocket (under cover)
4. Engine Oil Fill Cap / Dipstick
5. Rear Brake Fluid Reservoir
6. Rear Brake Pedal
7. Air Filter
8. Headlamp
9. Mirror
10. Fuel Tank
11. Access Cover
12. Fuse Box (under cover)
13. Accessory Fuse (under
cover)
14. Rear Shock Air Fitting
(under cover)
15. Radio Antenna (if equipped)
16. License Plate Bracket
1
2
5
6
7
8
9
10
11
3
12
4
13
2
3
4
6
12
14
1
8
7
5
16
15
9
10
13
11
