80
Maintenance
Side Covers

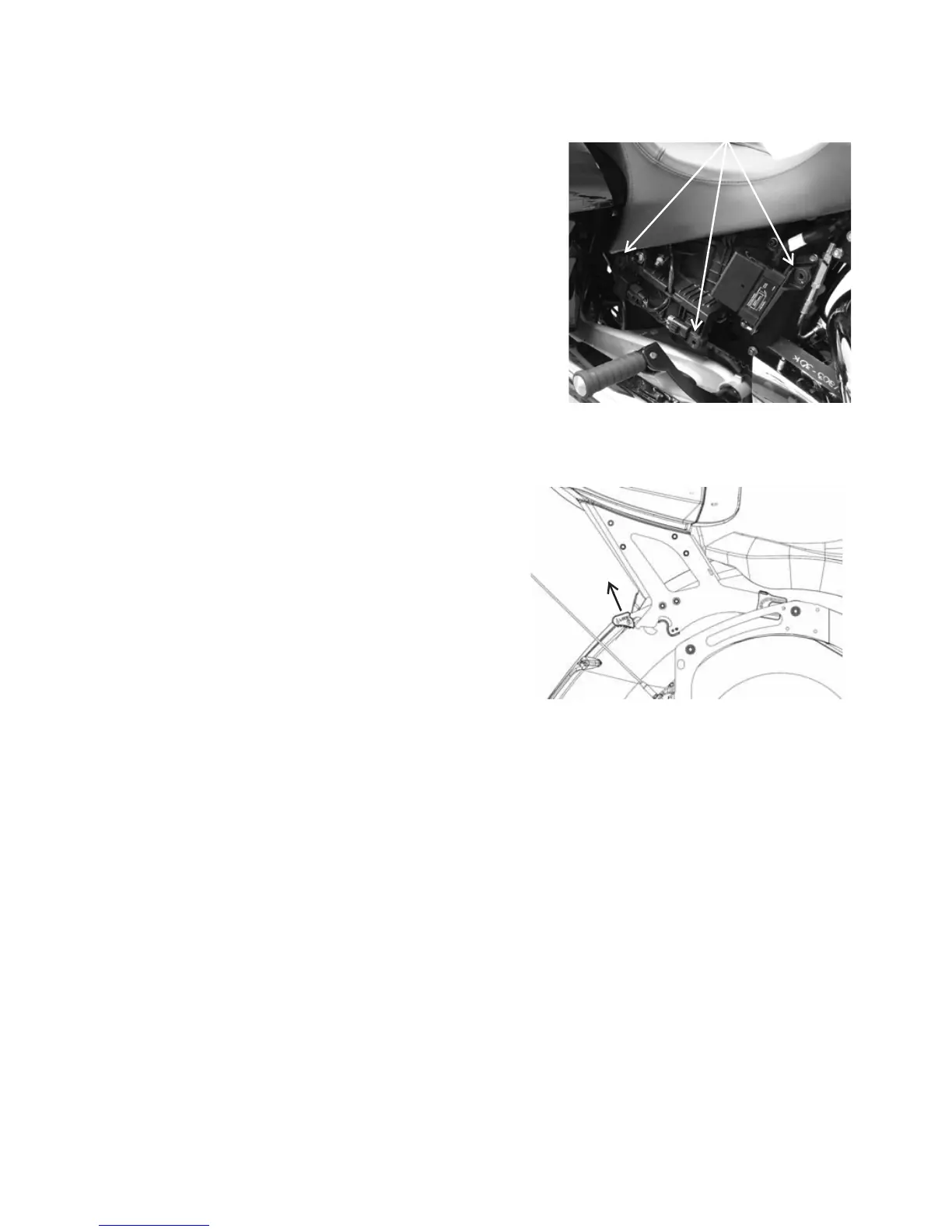

Remove the left side cover to access the electronic
control module, diagnostic connector and chassis-to-
engine harness connector.
Remove the right side cover to access the fuses, rear
suspension air fitting, clutch cable adjuster, purge
valve and flasher unit.
Remove both side covers to access the seat screws.
1. Pull outward at each corner of the side cover to
disengage the three darts.
2. Remove the side cover from the motorcycle.
3. To reinstall the side cover, make sure each rubber
grommet is properly positioned. Align each dart
with the appropriate grommet and press inward
firmly to secure each dart.
Trunk Removal (CROSS COUNTRY TOUR)
1. Open both saddlebag covers. Remove the
left saddlebag and side cover. Place them in
a safe location to prevent damage to the
painted surfaces.
2. Disconnect the trunk wire harness.
3. Pull the two trunk latch levers fully upward
to release the latches.
4. From the rear of the motorcycle, grasp the
trunk firmly with both hands. Pull the trunk
assembly rearward to disengage the trunk
support legs from the saddlebag support
bracket bushings.
5. Place the trunk assembly in a safe location to prevent damage.
6. Reinstall the side cover and left saddlebag.
7. Reverse this procedure to reinstall the trunk assembly. Make sure the trunk support legs
are firmly anchored onto the saddelbag support bracket bushings. Push both trunk latch
levers fully downward to engage the latches. When properly latched, theft prevention
bolts prevent latches from rotating and releasing.
WARNING! An insecurely latched trunk assembly can cause loss of control resulting in serious injury
or death. Always make sure trunk latches are secure before operating the motorcycle.
