POWER SUPPLY AND CONTROLLER
The Pool Lab power supply and controller is supplied with a mounting bracket, three
screws and three masonry plugs. To comply, the unit must be mounted vertically with the
outlet socket facing downwards on a solid wall or post that covers an area no less than the
rear area of the back of the power pack. Always mount the power pack as per local
electrical codes and within 3m (9 feet) of the cell and 2m from the pool pump. Air flow
around the power supply must not be restricted or close to any heat source such as a gas
heater exhaust.
The unit is suitable for outdoor installation and has an IP23 rating. The unit must be
mounted outside of the pool zones as defined by AS/NZS 3000. As a general rule for
swimming pools, Pool Lab units must be mounted at least 3.5m away from the inside edge
of the pool to be clear of the pool zones, and at least 45cm above the ground to protect
from water being splashed up from the ground.
The Pool Lab chlorinator should be mounted so that the equipment such as the filtration
pump can be easily connected.
Masonry plugs and screws are provided with the mounting bracket, and the screws
provided are also suitable for mounting to timber.

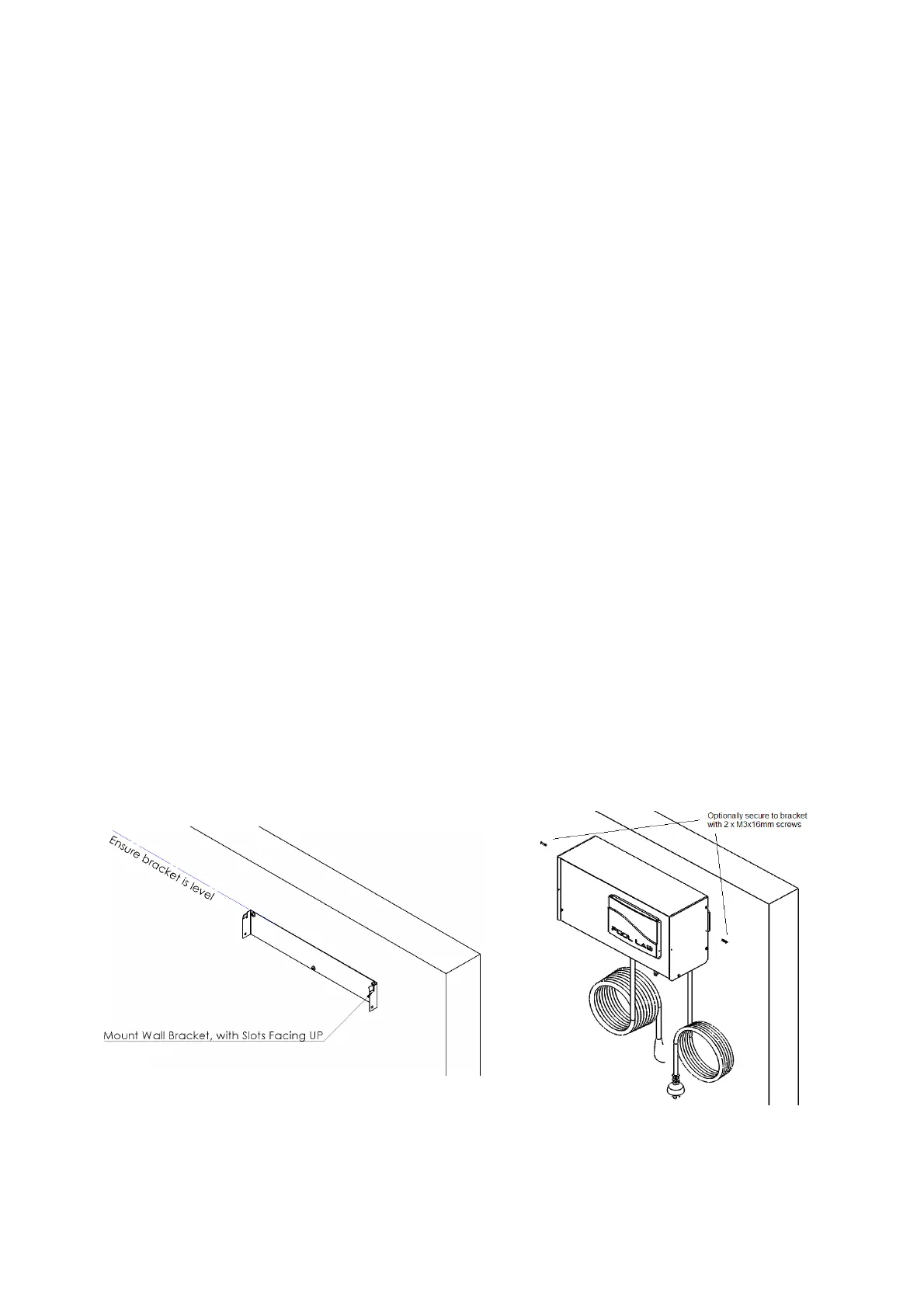

Secure the mounting bracket in place with the slotted edge to the top, and ensure the
bracket is level and firmly secured before mounting the Pool Lab chlorinator onto it.
The bracket at the back of the unit hooks over the slots on the top edge of the mounting
bracket. Optionally you can secure the unit to the bracket with the M3x16mm screws
provided.
