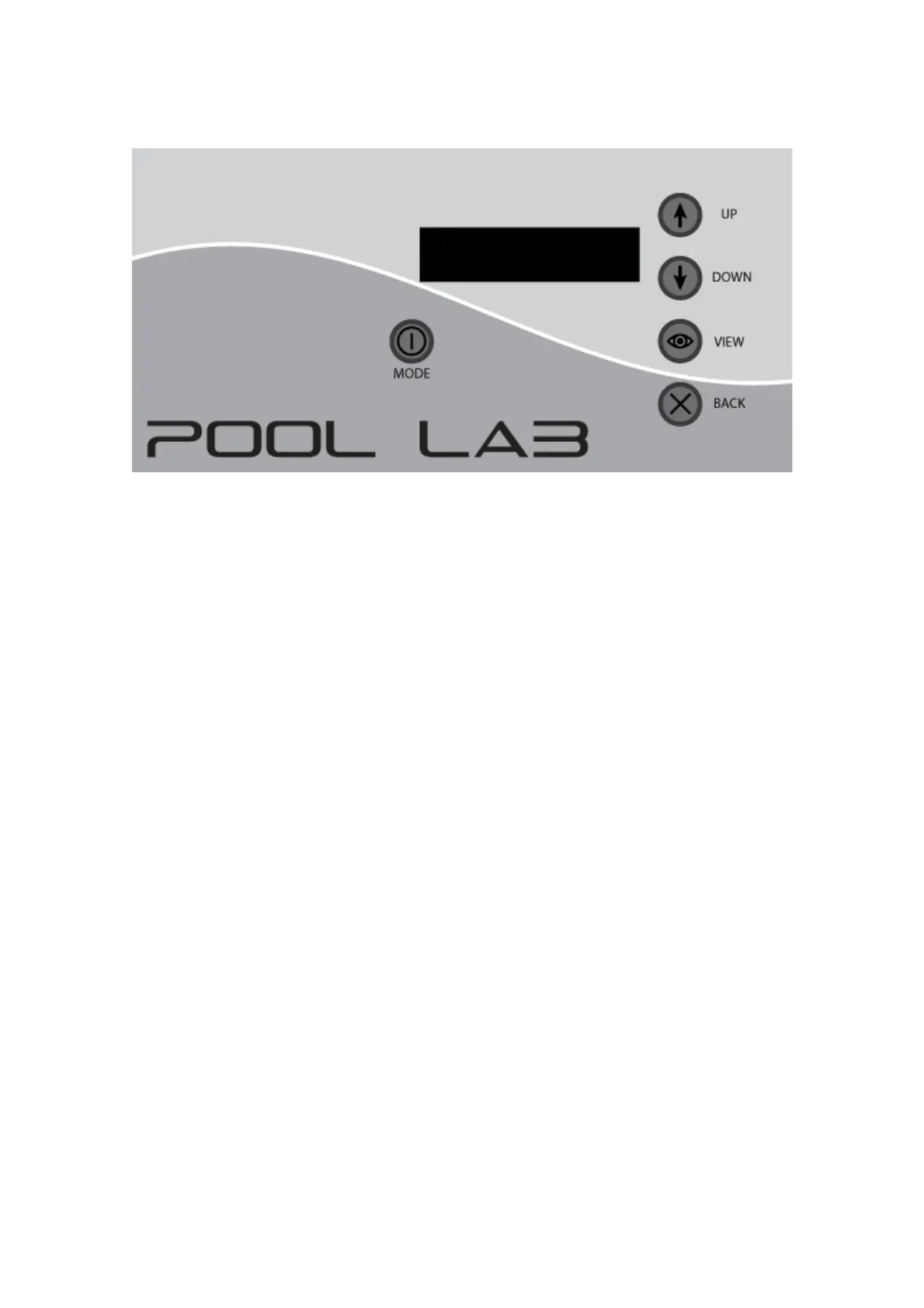

CONTROL PANEL OVERVIEW
LCD DISPLAY
– The display has three top level views, and a menu system:
HOME – Displays running mode and chlorinator output.
TIME/DATE – Displays current time and date
TIMER – Displays filtration ON / OFF times
MAIN MENU – Access settings and configuration items
UP / DOWN BUTTONS
– Adjust the chlorine output level (view “HOME”)
– Adjust the time / date (view “TIME/DATE”)
– Adjust the ON / OFF times (view “TIMER”)
– Navigate menu system (menu system list views)
– Adjust values (menu system field editing)
VIEW BUTTON
– Switch between LCD display top level views
– Moves to the next adjustable field, or set adjusted field
– Hold for 5 seconds to enter the MAIN MENU
(view “HOME” only)
– Select a menu item, or edit a field (menu system views)
BACK BUTTON
– Return to previous view, or return to view “HOME”
– Exit adjustment mode
– Display detailed cell output data (view “HOME”)
MODE BUTTON
– Toggle ON / OFF / AUTO running mode.
– Returns to HOME VIEW (from any top level view)
