poolstar POOLEX - 2.3 Product dimension; 2.4 Exploded view

EN | 9
EN

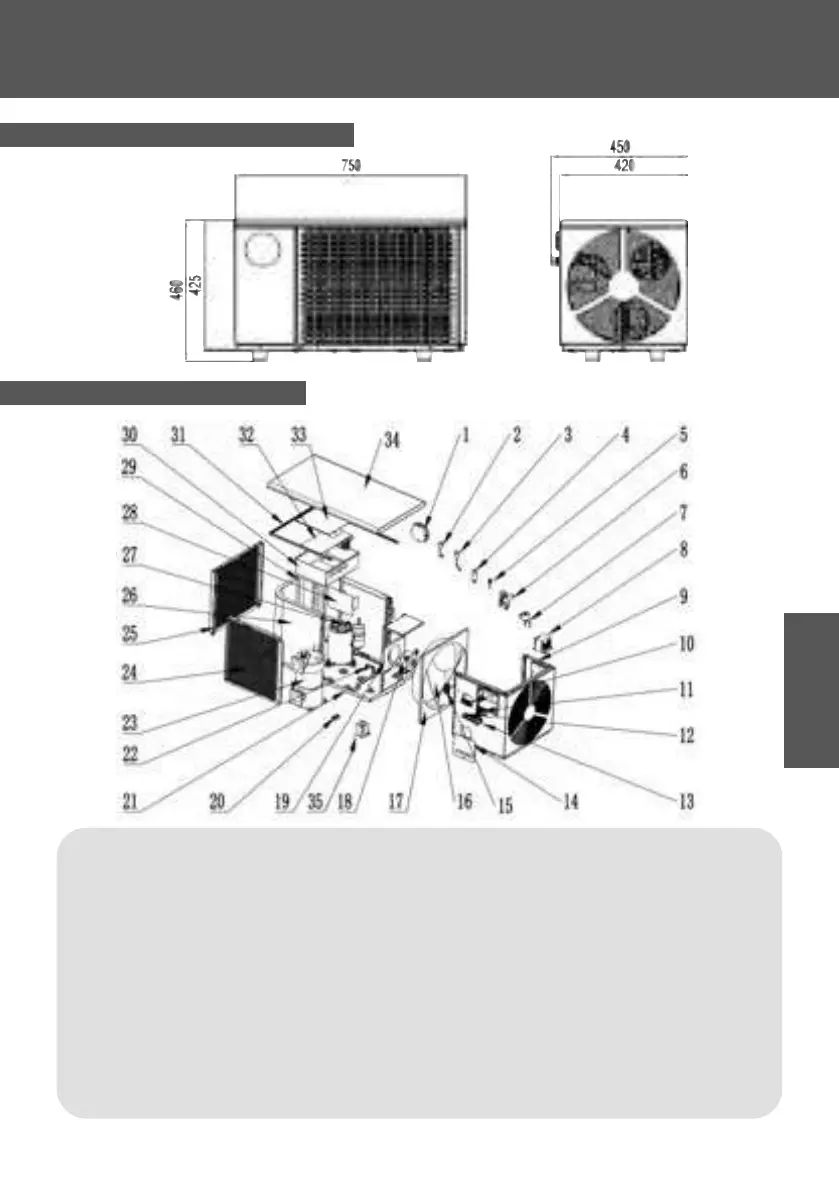

2.3 Product dimension
2. DESCRIPTION
2.4 Exploded view
1 Display 13 Connector PG13.5 25 Back Panel
2 High Pressure Switch 14 Electrical Box Cover 26 Evaporator
3 Low Pressure Switch 15
Temperature Sensor Retaining Clip 27 Compressor
4 Filter 16 Fan Blade 28 Reactor Protecon Cover
5 Needle Valve 17 Air Deector 29 Electrical Box Support Plate
6 Four-Way Valve 18 Fan Motor 30 Electrical Box
7 EEV 19 Motor Support Assembly 31 Top Frame Assembly
8 Reactance 20 Two-posion Terminal Board 32 Main Board
9 Front Panel 21 Chassis 33 Electrical Box Cover
10
Twelve-posion Terminal Board 22 Copper pipe Fixing Bracket 34 Top Cover
11
Three-posion Terminal Board 23 Titanium Heat Exchanger 35 Relay
12 Connector PG7 24 Le Panel
