POS-X EVO 2D - Interface Cable Pinouts

9 - 2
Standard Cable Pinouts
Keyboard Wedge
1 Cable shield 2Cable select 3 Supply ground 4 Terminal data 5 Terminal clock 6 Keyboard clock 7 Supply power input +5V power 8 Keyboard data 9 10
Note: Pin assignments are not compatible withlegacy products.
Use of a cable with improper pin assignments may lead to damage to the unit.
Use of any cables not provided by the manufacturer may result in damage not
covered by your warranty.

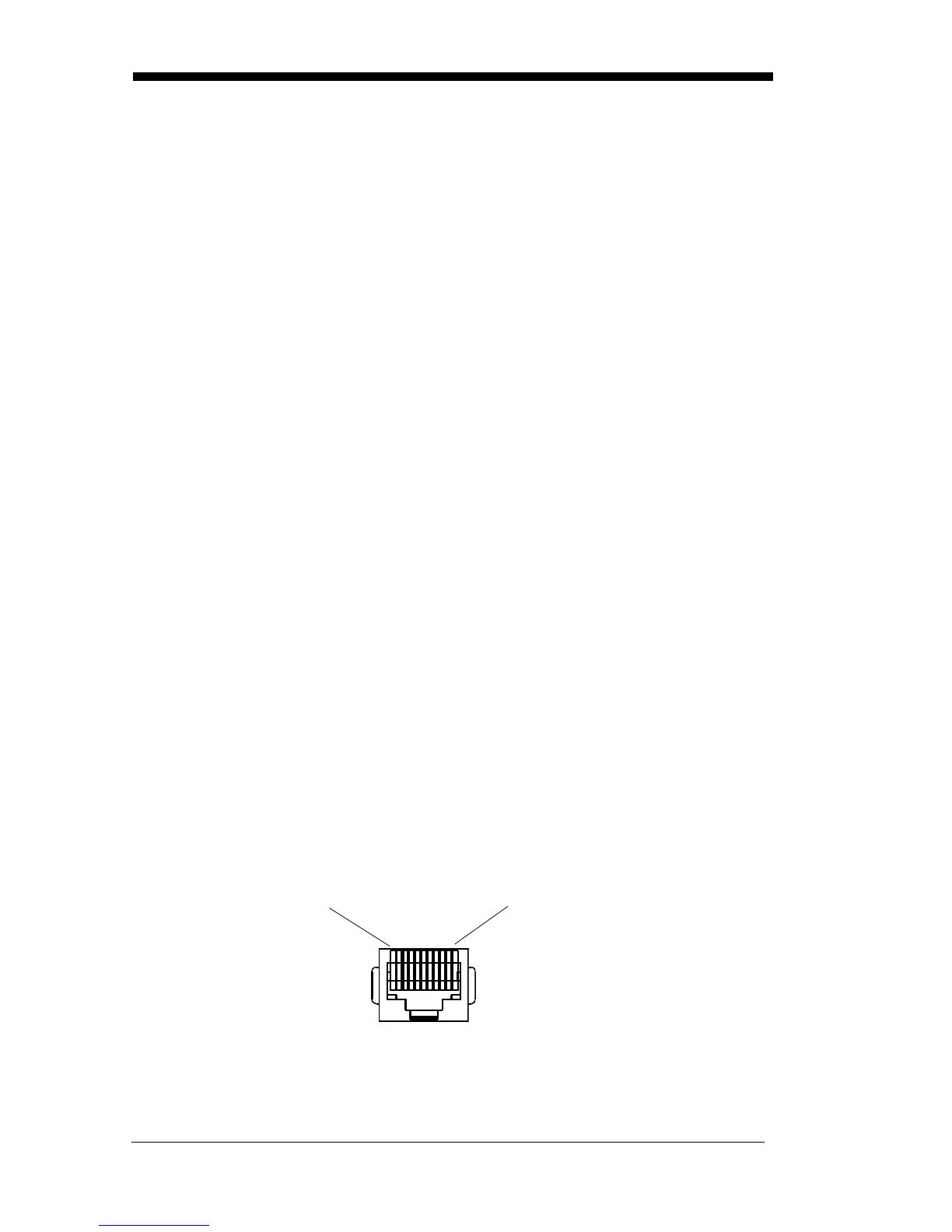

10 Pin RJ45 Modular Plug
