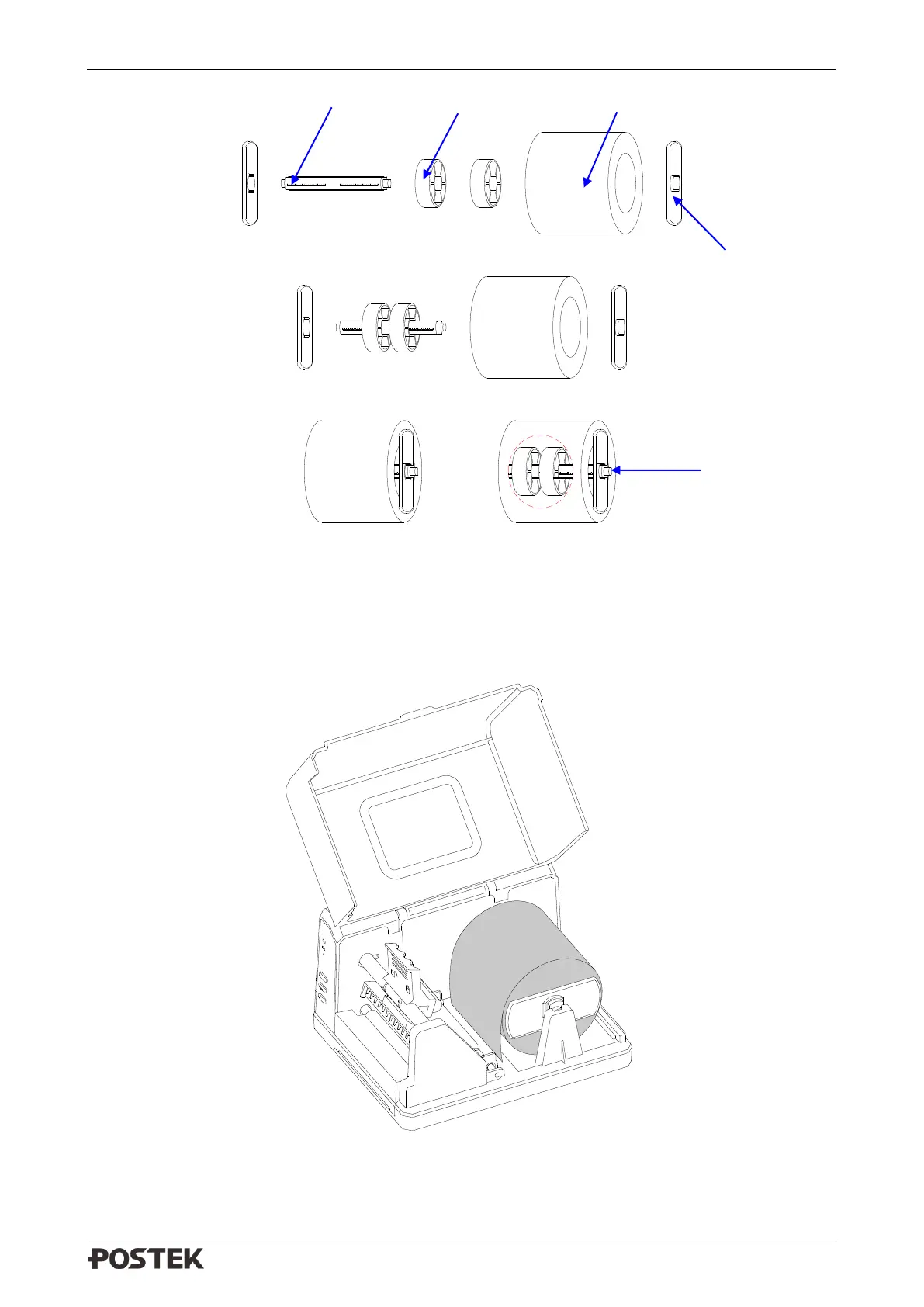

Figure 2-5 Place Media Roll on Media Spindle
3. Place the entire unit into the printer’s Media Compartment.
4. Position the media roll in the middle of the Spindle, using the ruler on the Media Spindle for
alignment. See Figure 2-6.
Figure 2-6 Load the Media
Media Roll
Media Roll Adaptors
Media Spindle
Media Roll Guide
Media Roll
Module correctly
fitted with Spindle
and Guides
