SD700 – TOUCH-GRAPHIC DISPLAY
POWER ELECTRONICS
32
APPLICATION MANAGEMENT
2.7. System Menu
The main configuration options and the system tools for the graphic display are included in the
system menu. To access to this menu, the user should tap on the ‘P’ icon (Power logo), located on
the left upper corner on the title bar.

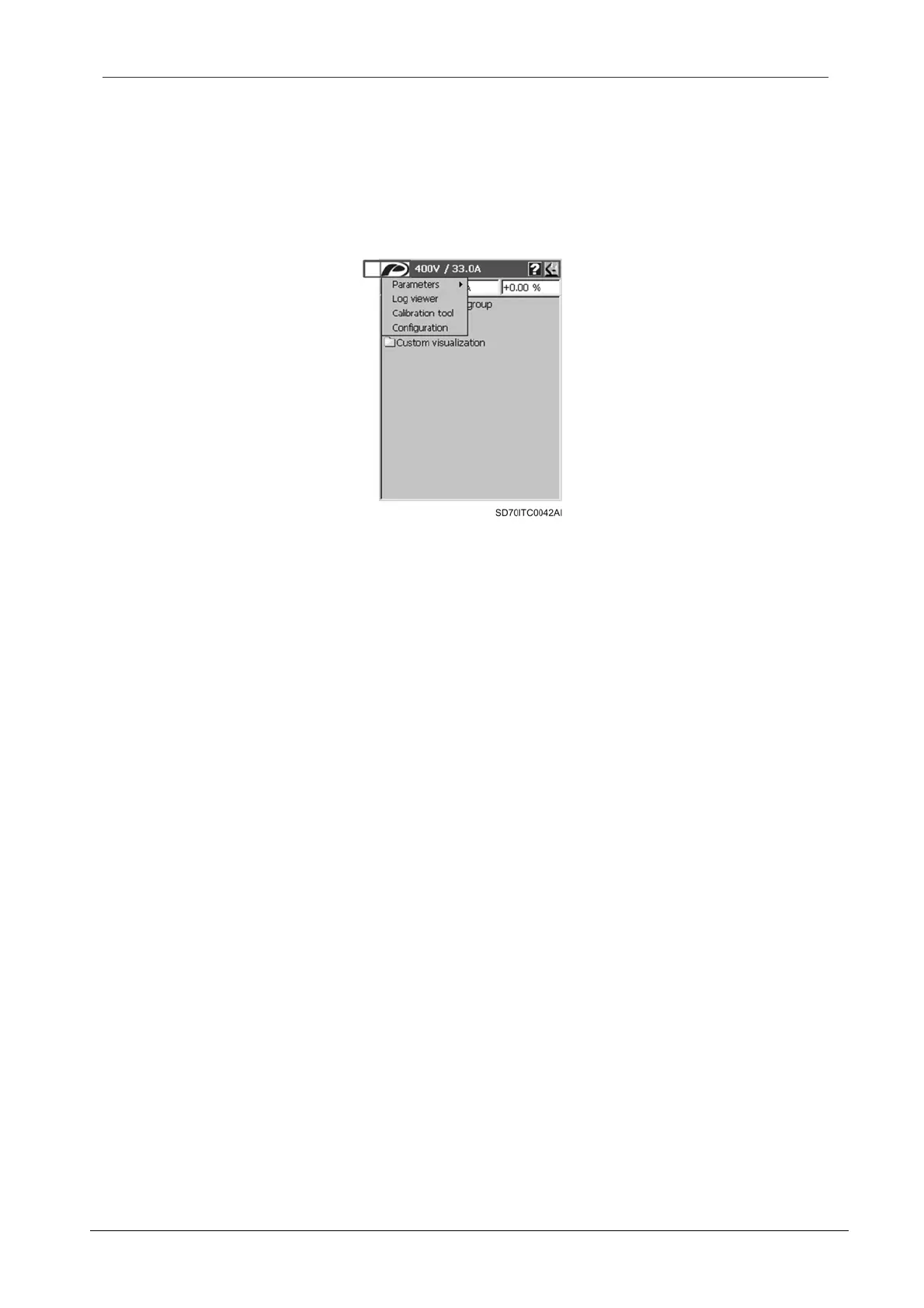

Figure 2.20 System menu
The following options are included:
Parameters:
This option allows the user to save the all of the drive parameters settings (drive configuration) on
the graphic display memory (upload), and then, load this configuration to the same equipment or
other drive (download). Additionally, the saved configurations can be deleted. See section ‘2.7.1.
Save, Load and Delete Parameters’.
Log viewer (Fault Registers):
With this option, the user can access to the Fault Registers screens which shows the last ten fault
registers. A fault register (log) is an internal file created when a fault occurs and which stores
information about some parameters of the drive at the moment of the fault. See section ‘2.7.2.
Fault Registers (Log Viewer)’.
Calibration tool:
This option allows the user to calibrate the touch panel of the display. See section ‘2.7.3. Touch
Panel Calibration’.
Configuration:
This option allows the user to setup the graphic display and the SMS service. See section ‘2.7.4.
Graphic Display Configuration’.
