POWER ELECTRONICS
SD700 – TOUCH-GRAPHIC DISPLAY
DESCRIPTION
13
1.1. Status LEDs
Leds offer an easy method of identifying if the SD700 is powered up, if the drive is supplying output
voltage, or if the drive has tripped.
Led ON: Yellow colour. When it is lit, indicates equipment is powered up.
Led RUN: Green colour. When it is lit, indicates the motor is powered by the SD700.
Led FAULT: Red colour. When it is blinking, indicates the equipment is in fault status.

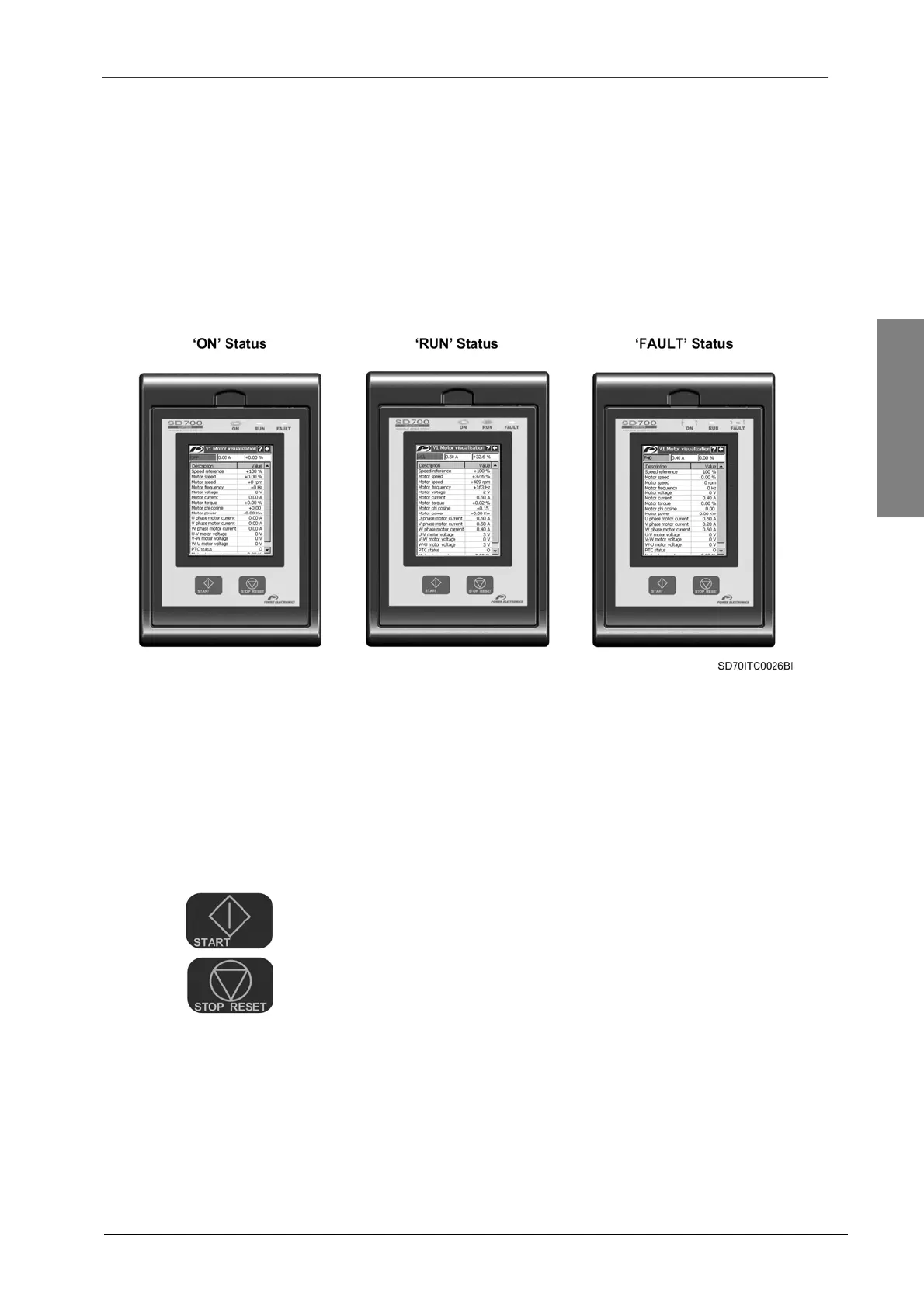

Figure 1.2 Status visualization
1.2. Control Keys
There are two keys on the bottom of the display unit that are:
To start the drive from the keypad when the control has been set as local
control (check drive configuration).
To stop the drive from the keypad when the control has been set as local
control. In the case of tripping this key can be used to reset the drive, if local
control is enabled.
