POWER ELECTRONICS
VS65
PROGRAMMING KEYBOARD
23
Code
Function
Name Range Default Description
07 Interlock control 0-6 0 0: delay See 4.3.6
08 Starting mode 0-6 0
0: Current limiting 1:Voltage
2: Heavy load
09 Control mode 0-5 1
0:Keypad 1: Remote
2:Keypad + remote 3:PC 4:Keypad + PC
5:Remote +PC
10
Analogue current
selection
0-5 0 0-20mA current
11 Current display 0-1000 0
0: percentage of SS rating
1-1000: actual motor current
12 Fault relay 0-1 0
0: Normal-open
1: Normal-closed
13 Slave address 0-125 0 Slave address setting
14
Restart 0-1 0
0:Not allowed
1:Allowed,only two-wire control
15 Communication 0-1 0 0: Modbus 1: Profibus
16 Communication speed 300-19200 0 96 means 9600
17 Parity check 0-2 0 0: Non parity 1: Odd 2:Even
18 Communication bus 0-1 0 0: PPO1 1: PPO 3
19 Communication bus fault 0-1 0 0: Only alarm 1: alarm and stop
20 RET program 0-2 0
0: reset is disable
1: reset is enable
21 Language 0-1 0
It allows selection of the user language.
0: English
22 Invary void 25% - 80% 35% It is valid under the voltage or heavy load mode
23 Invary time 5-60s 20s It is valid under the voltage or heavy load mode
24 Write protection 0-1 0
0: Without protection
1: With protection
Note: 1. Function codes will not lose after power loss till they are modified.
2. Function codes can be changed to default values see in 4.4.3.
3. Function codes maybe different as updated version. Please refer to the latest version.
4. In case of using communication function, the device needs to be repowered after the slave address is set.
4.3. Function Code Explanations
4.3.1. Code 00 – Pickup voltage. Code 01 – Rise time
They are starting control parameters under the voltage mode. Increasing the pickup voltage can
help to overcome the static-friction force during the starting; if bigger load inertia, you have to set
a longer rise time (as shown in Figure 4.2).

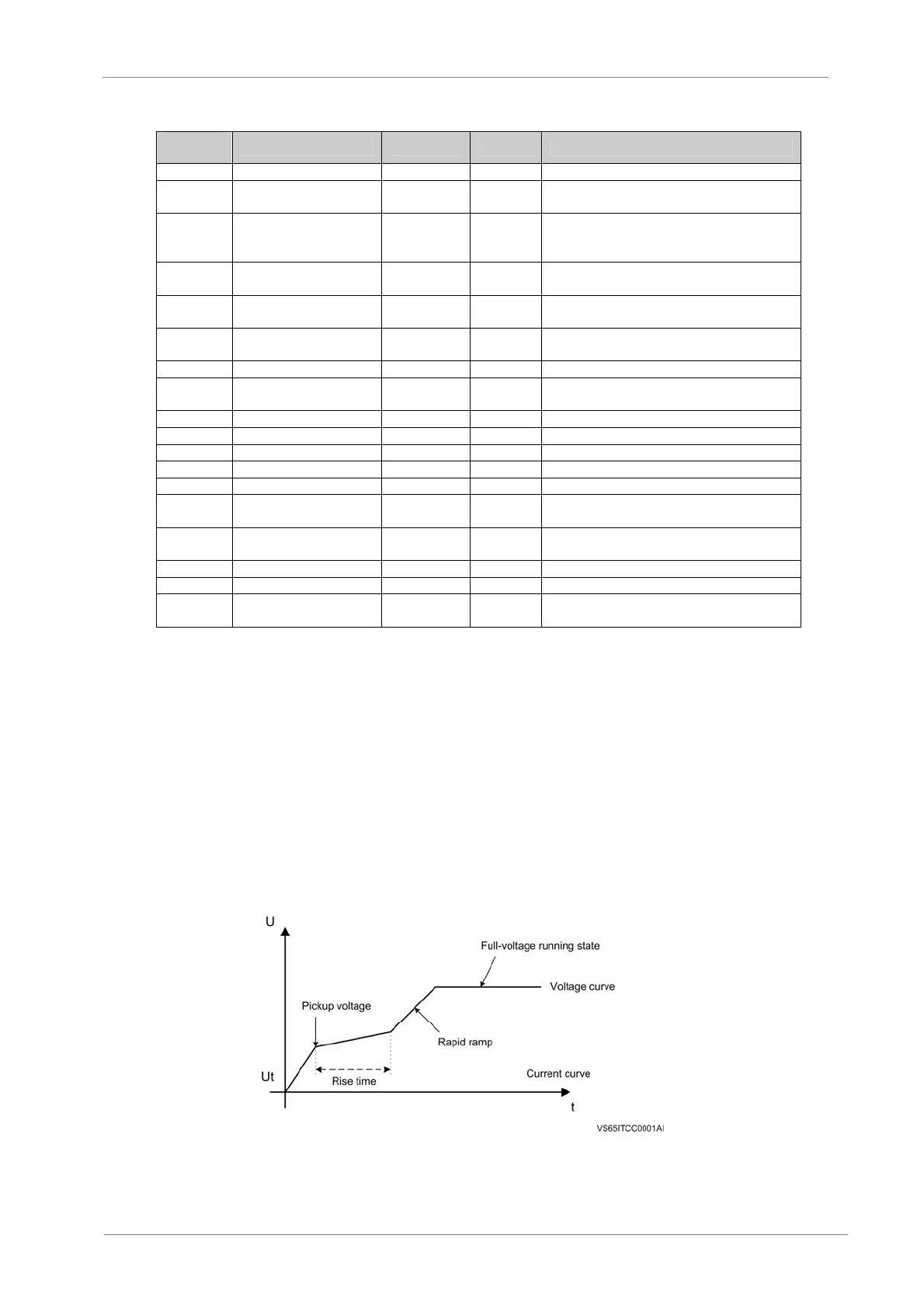

Figure 4.2 Starting ramp
