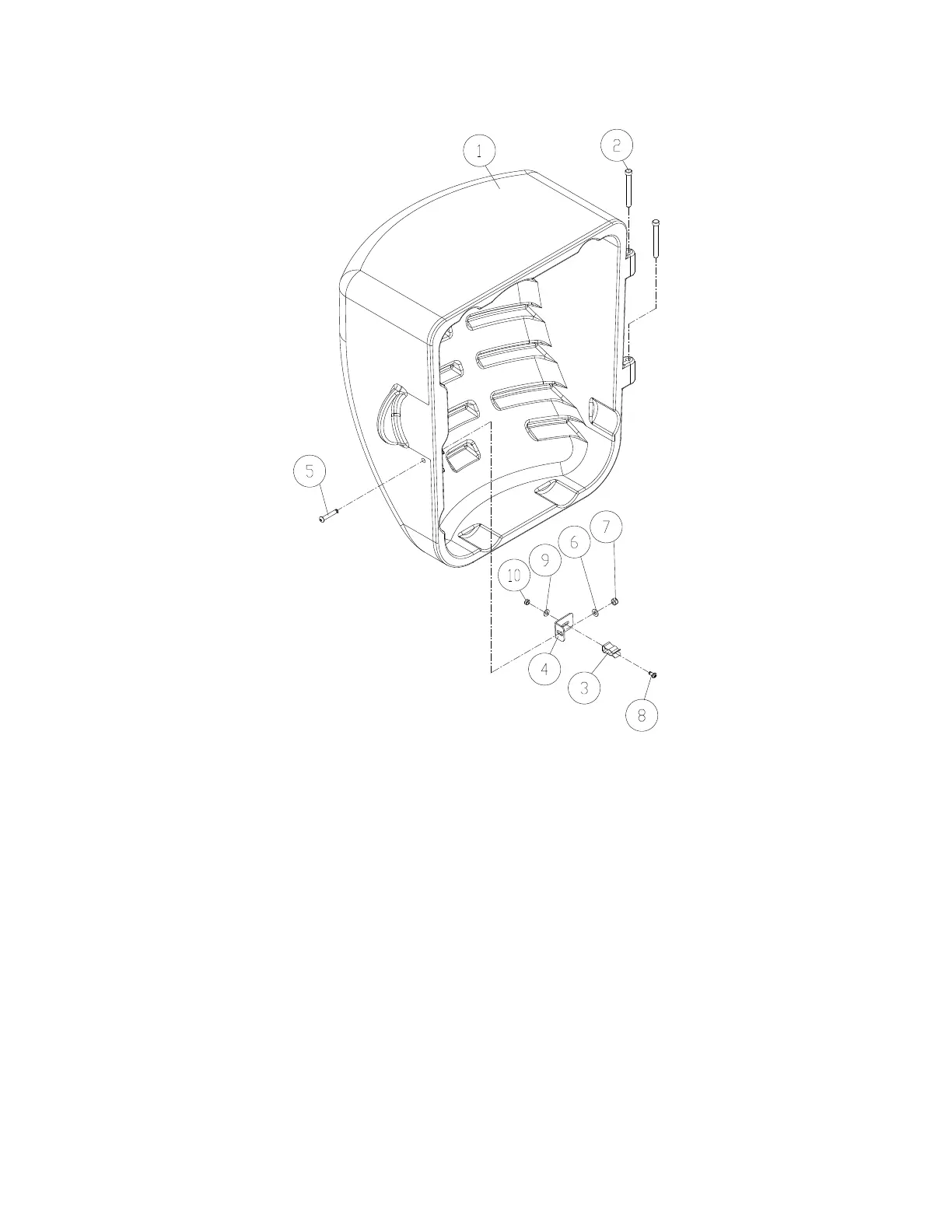

14.6.1 Motor Cover Assembly – Exploded View
14.6.2 Motor Cover Assembly – Parts List
Index No Part No Description Size Qty
.................. 6827044B ................... Motor Cover Assembly (includes #1 thru 10) .......... ...................................... 1
1 ................ PM2000B-401 ............ Motor Cover ............................................................. ...................................... 1
2 ................ PM2000B-402 ............ Hinge Pin ................................................................. ...................................... 2
3 ................ PM2000B-403 ............ Spring Clamp ........................................................... ...................................... 1
4 ................ PM2000B-404 ............ Clamp Holder .......................................................... ...................................... 1
5 ................ TS-2246302 ............... Socket Head Button Screw ..................................... M6-1.0 x 30L ................. 1
6 ................ TS-1550041 ............... Flat Washer ............................................................. 6.2 x 13 x 1.5T mm ....... 1
7 ................ TS-1541021 ............... Nylon Lock Hex Nut ................................................. M6-1.0 .......................... 1
8 ................ TS-1533032 ............... Phillips Pan HD Machine Screw .............................. M5-0.8 x 10L ................. 1
9 ................ TS-1550031 ............... Flat Washer ............................................................. 5.3 x 12 x 1.0T mm ....... 1
10 .............. TS-1540031 ............... Hex Nut ................................................................... M5-0.8 .......................... 1
