K2 – K3 Service Manual
Disconnect the amplifier power switch cable removing
the faston behind it:
It is now possible to remove the power supply board by
unscrewing it from the amplifier chassis, removing with
a Phillips PH 1 screwdriver the 7 screws plus the brass
stand-off as illustrated below:

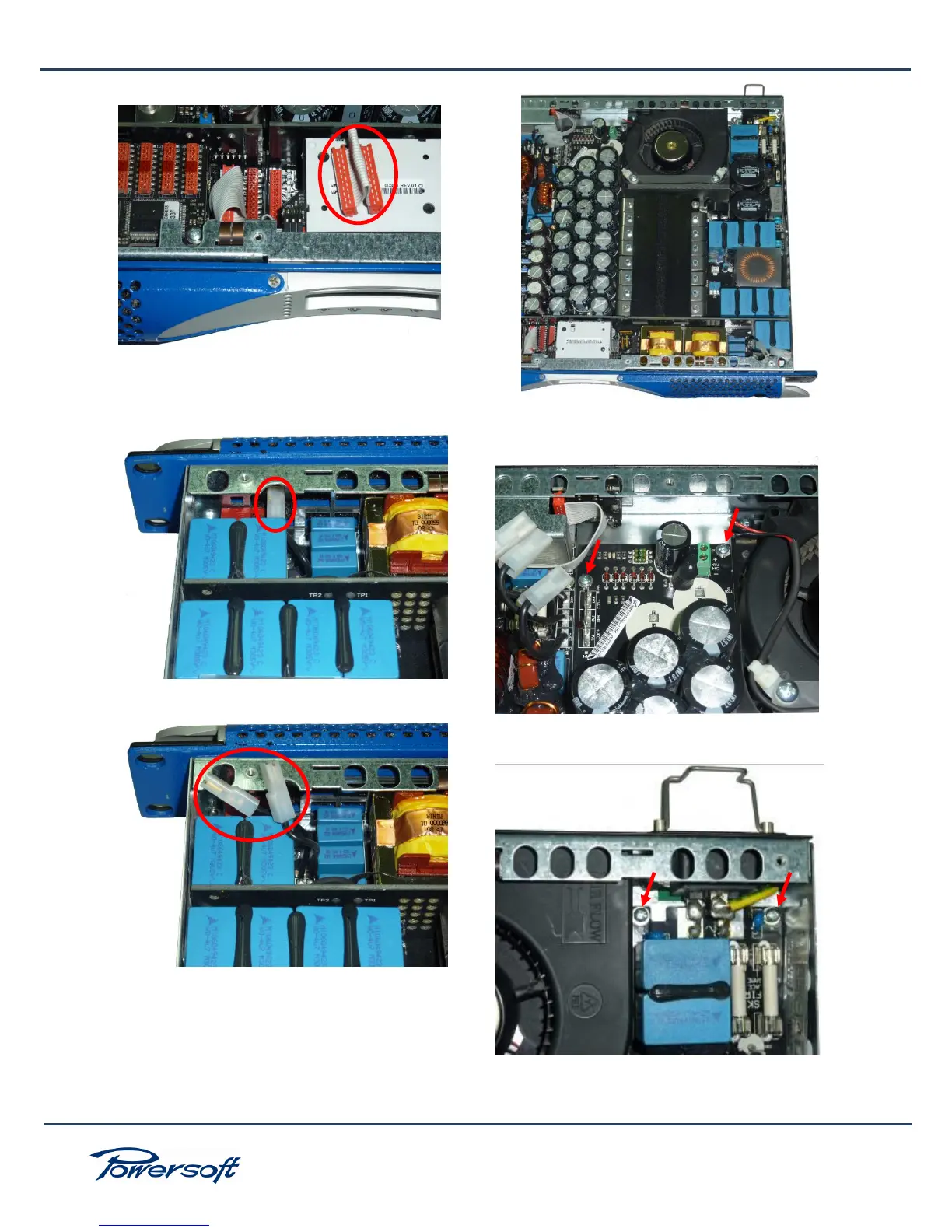

Overview of the 7 screws (1-7) and of the brass stand-off (8)
to unscrew for removing the power supply board
Removed flat cable
Amplifier power switch cable to be removed
Detail of screws number 1-2
Detail of screws 3 and 4
Faston of the amplifier power switch cable removed
