K2 – K3 Service Manual

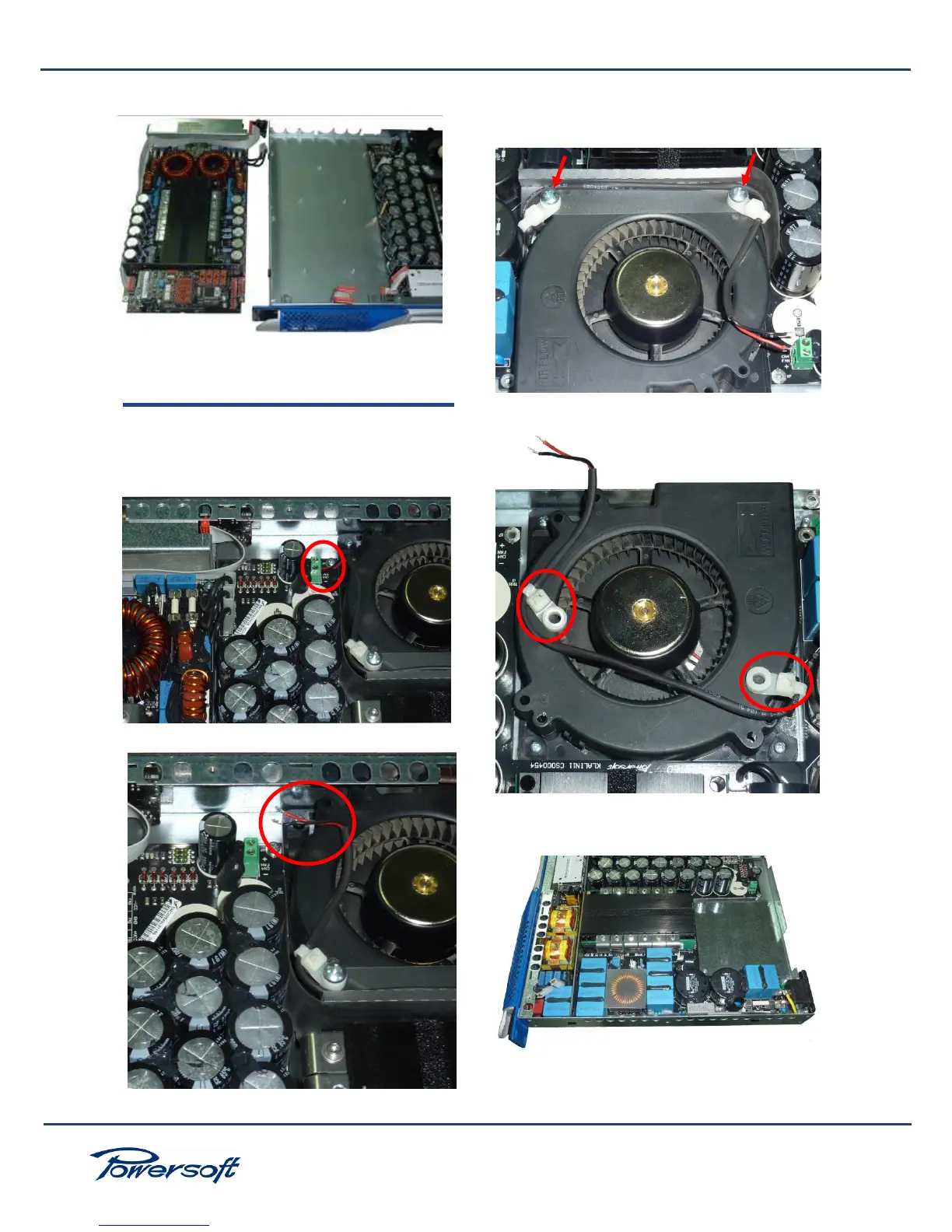

5. REMOVING THE FAN
Before starting to remove the fan please proceed in
discharging the power supply as explained in chapter 2.
Begin the fan disassembly by unscrewing the fans power
cables.
Remove the fan power cable holders:
Amplifier output board out of the amplifier chassis
Fan power cables to be disconnected
Disconnected fan power cables
Fan removed from the amplifier chassis
Removed fan power cable
Fan power cable holders to be removed
