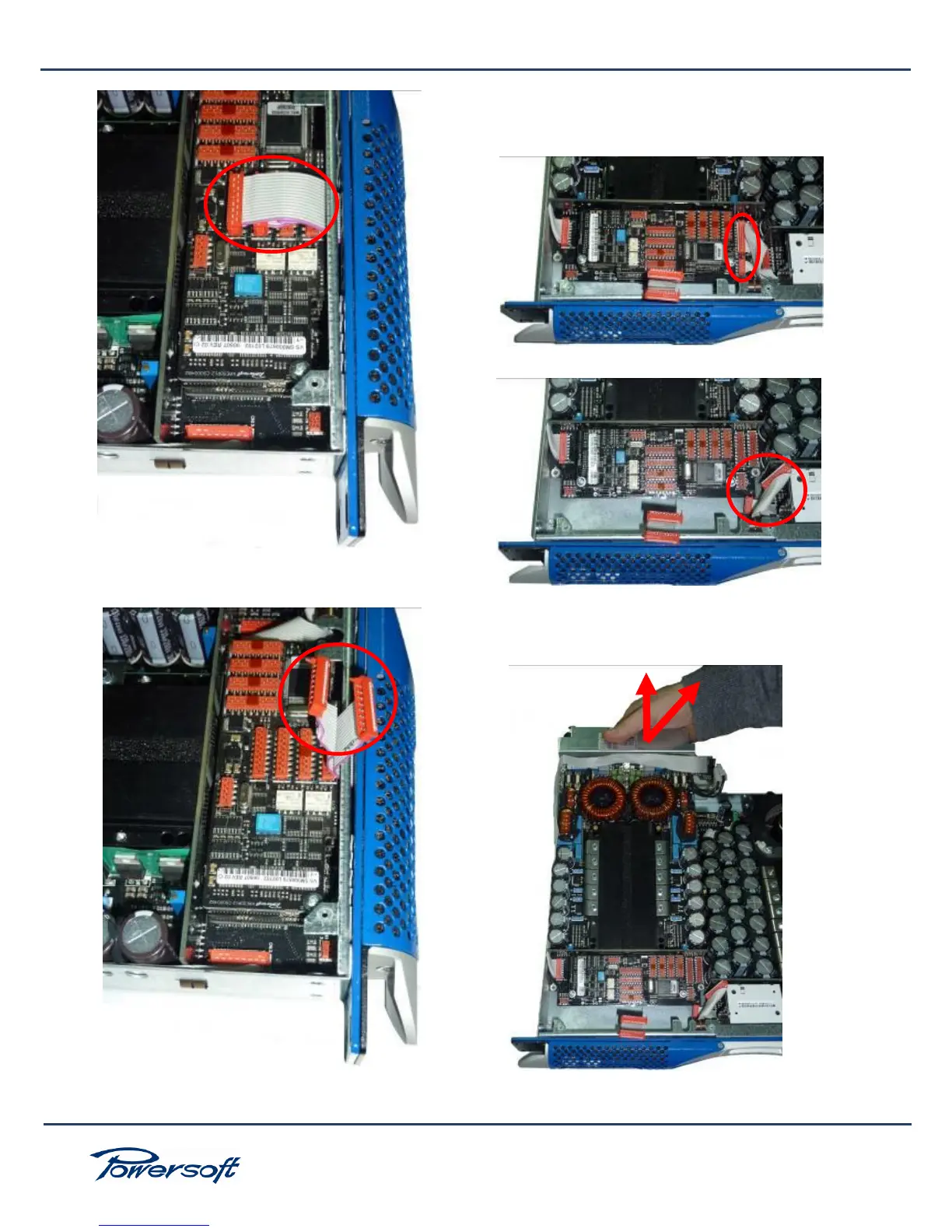

Pull back the amplifier output board to be able to unplug
the two flat cables of the control board on the other
hand masked by the chassis:
Now it is finally possible to remove the amplifier output
board from the amplifier chassis:
Lift and pull out the amplifier output board from the amplifier
chassis
KAESOP flat cable to unplug
KAESOP flat cables unplugged
Control board flat cables to unplug
Control board flat cables unplugged
