powersoft K2 Series - Remove Output Board Mounting Screws; Unplug KAESOP Board Flat Cables

10
K2 – K3 Service Manual

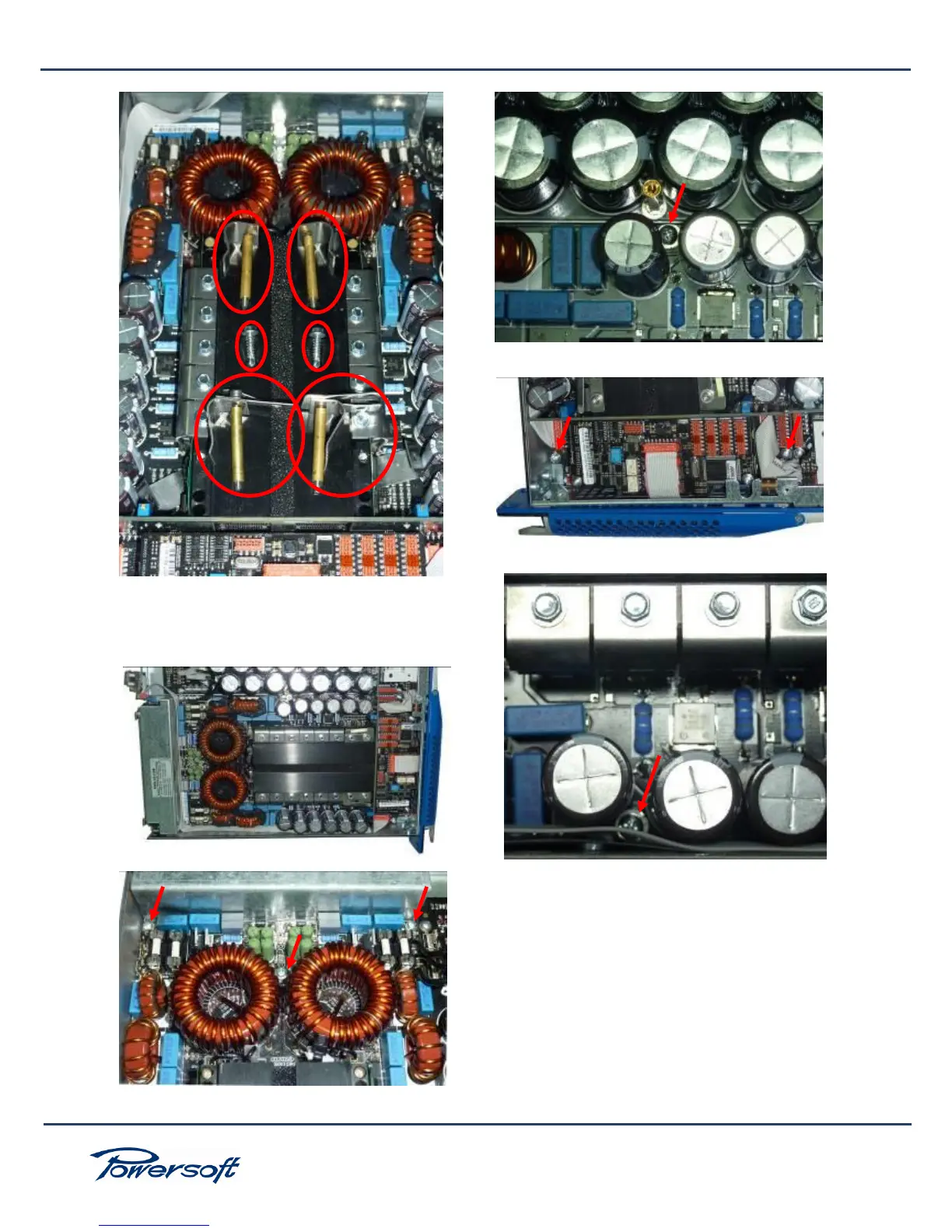

Now remove the amplifier output board by unscrewing
the 7 screws marked in the overview image below and
in the following images:
Once all the 7 screws have been removed, unplug the
two flat cables that connect the optional KAESOP board
(if installed) to the front panel RJ45 plugs:
1
2
3
4
5
6
7
Nuts unscrewed and removed
Screws 1, 2 and 3 to be removed
Amplifier output board overview
Screw 4 to be removed
Screw 5 and 6 to be removed
Screw 7 to be removed
