powersoft K2 Series User Manual

8
K2 – K3 Service Manual

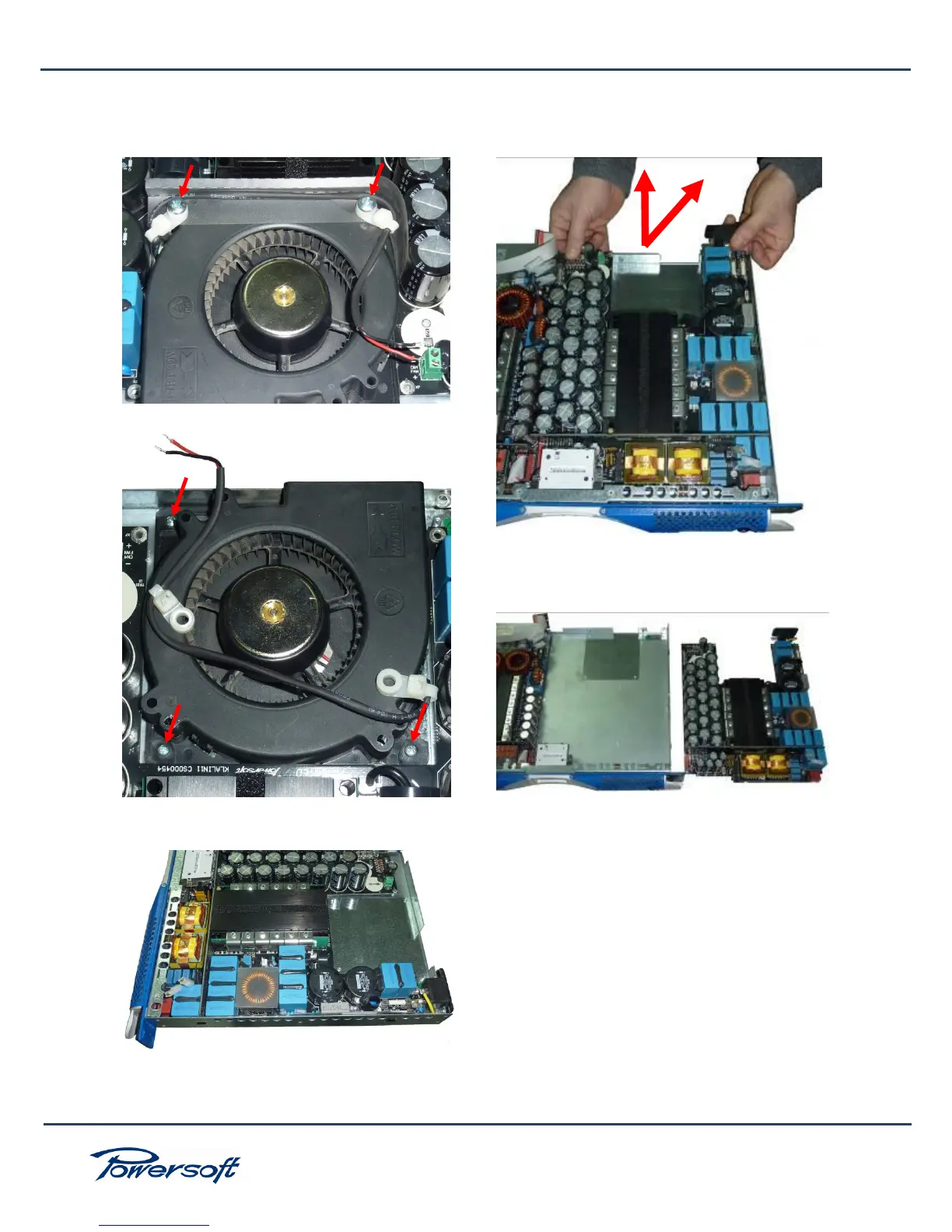

The power supply board will not be freed until the fan is
not removed from the amplifier chassis. Remove the fan
power cable and the fan screws:
Now it is finally possible to remove the complete power
supply board from the amplifier chassis:
Fan screws to be removed
Fan power cable holders to be removed
Fan removed from the amplifier chassis
Power supply board removed from the amplifier chassis
Lift and pull the power supply board to remove it
from the amplifier chassis
