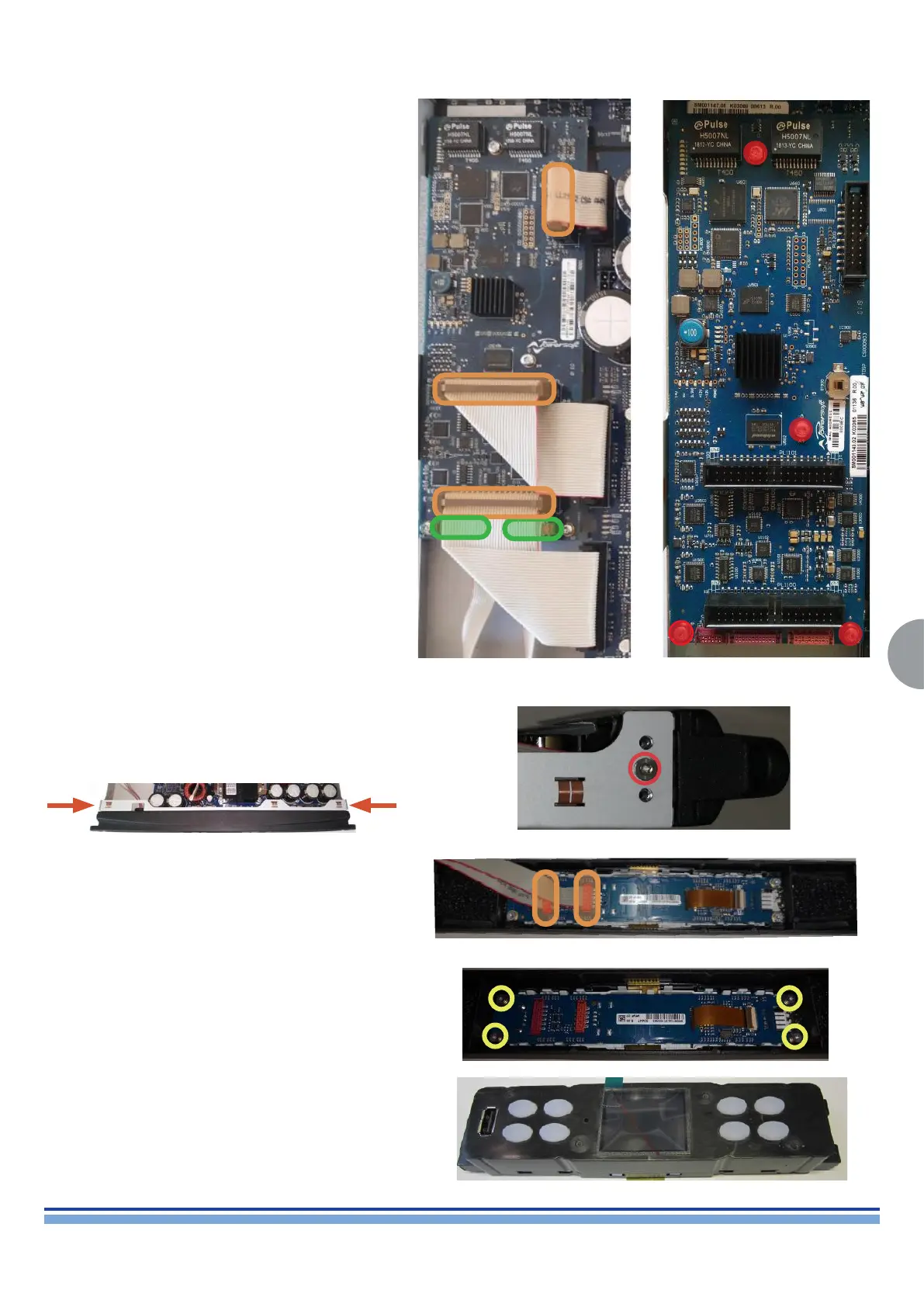

6.4 DSP Board Disassembling
Gently remove all the at cables connectors highlighted
in orange & green as indicated.
By means of a T10 Torx screwdriver, remove the 4 screws
highlighted in red.
Gently lift the DSP Board upwards the front of the
amplier,
It is now possible to remove the DSP Board from the
chassis.
6.5 Front Board Disassembling
By means of a T20 Torx screwdriver, remove the 2 screws
holding the front panel assembly to the rack ears, one on
each side.
By means of a T10 Torx screwdriver, remove the 4 Torx
screws highlighted in yellow.
It is now possible to remove the Front board from the
front panel.
Gently remove the 2 at cables highlighted in orange.
T-SERIES | SERVICE MANUAL
