Gently remove the Eprom (purple) and place in the new Main Board

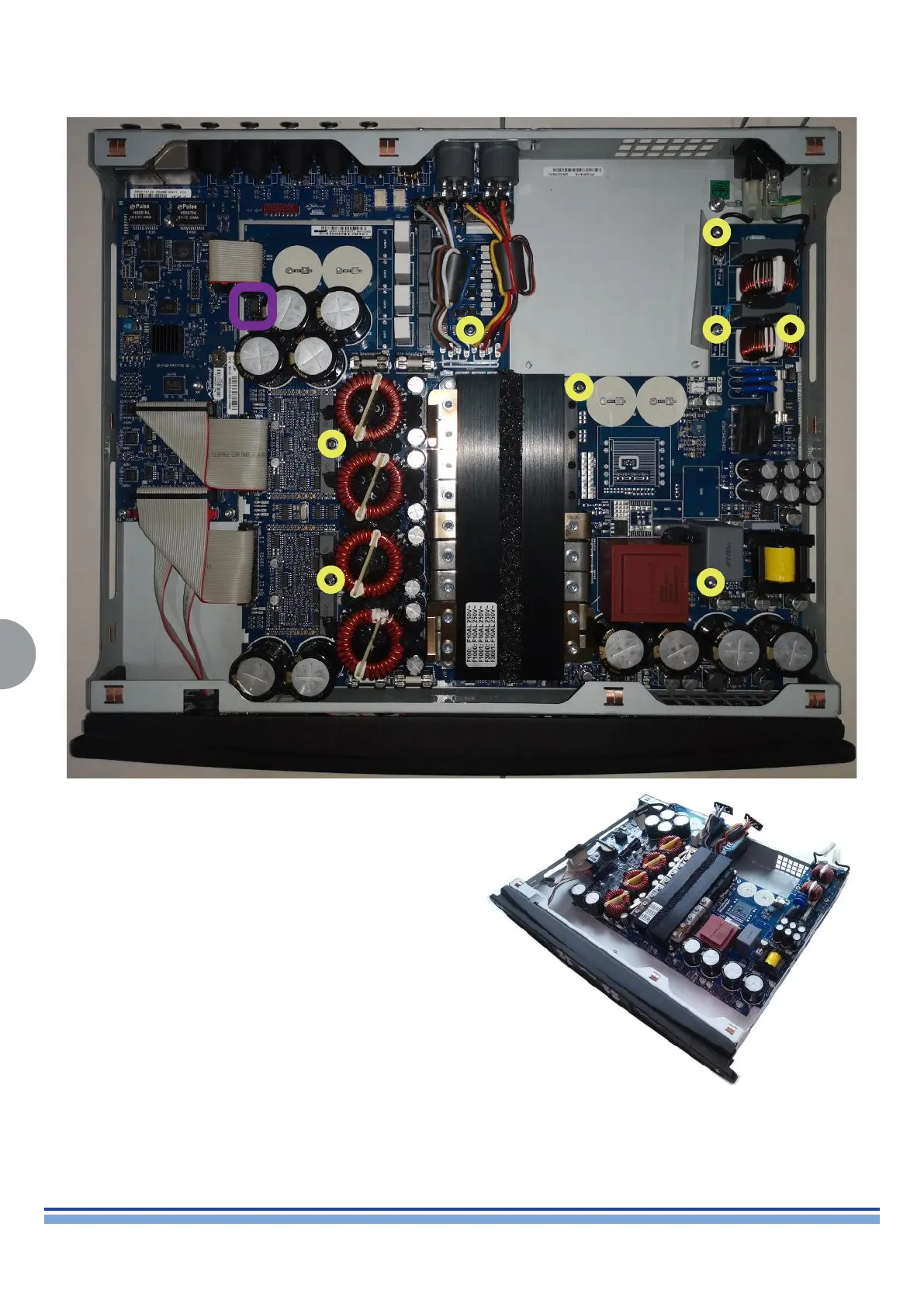

With a Thox 10 screwdriver, remove the 8 screws highlighted (yellow) in the picture below.
It is now possible to extract the Main Board from the chassis,
please do so by gently pivoting it towards the front of the amplier
by pulling upwards and outwards on the heatsink.
T-SERIES | SERVICE MANUAL
