Cable Number Cable Color Cable Number Cable Color
1
Gray
5
Yellow
2
Brown
6
Red
3
White
7
Black
4
Blue
8
Orange
2 31 5 64 7 8

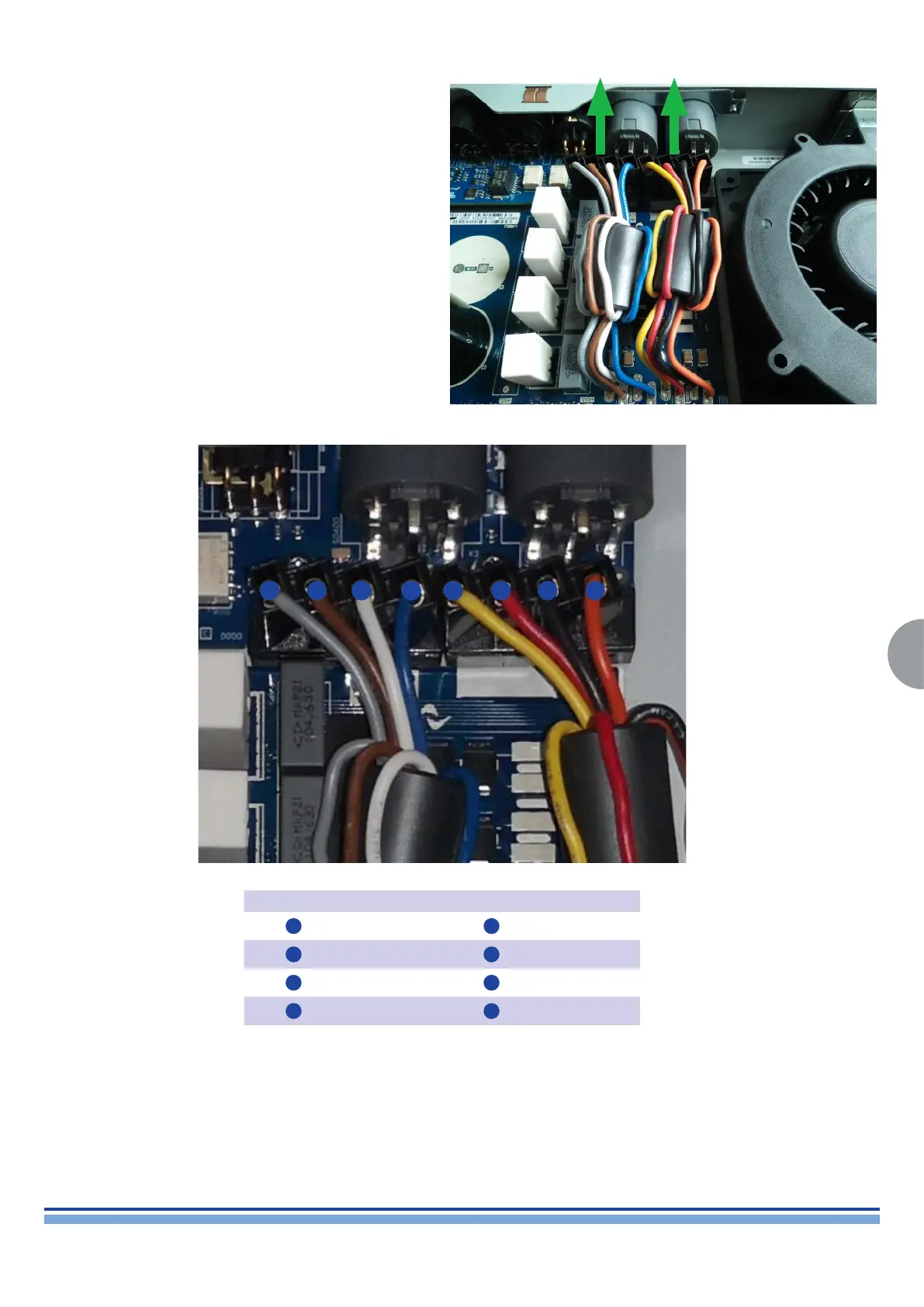

Focus your attention on the Output’s Fastons.
Pull the Fastons Connectors Upwards.
Refer to the following diagrams when reassembling the
amplier.
