Remote Monitor Panel
As an option, you can install Remote Monitor Panels (RMPs) to monitor the
operation of the UPS system from virtually any location within your facility, up to
500 feet from the UPS. Each RMP contains backlit status indicators and a local
horn. You can flush-mount or surface-mount an RMP on a desktop, wall, or
wherever you have a serial interface line. A maximum of two monitoring
accessories (RMPs, Relay Interface Modules (RIMs), or Supervisory Contact
Modules (SCMs)) can be installed. See Table 1 for the number of accessories
permitted. Figure 20 shows an RMP.

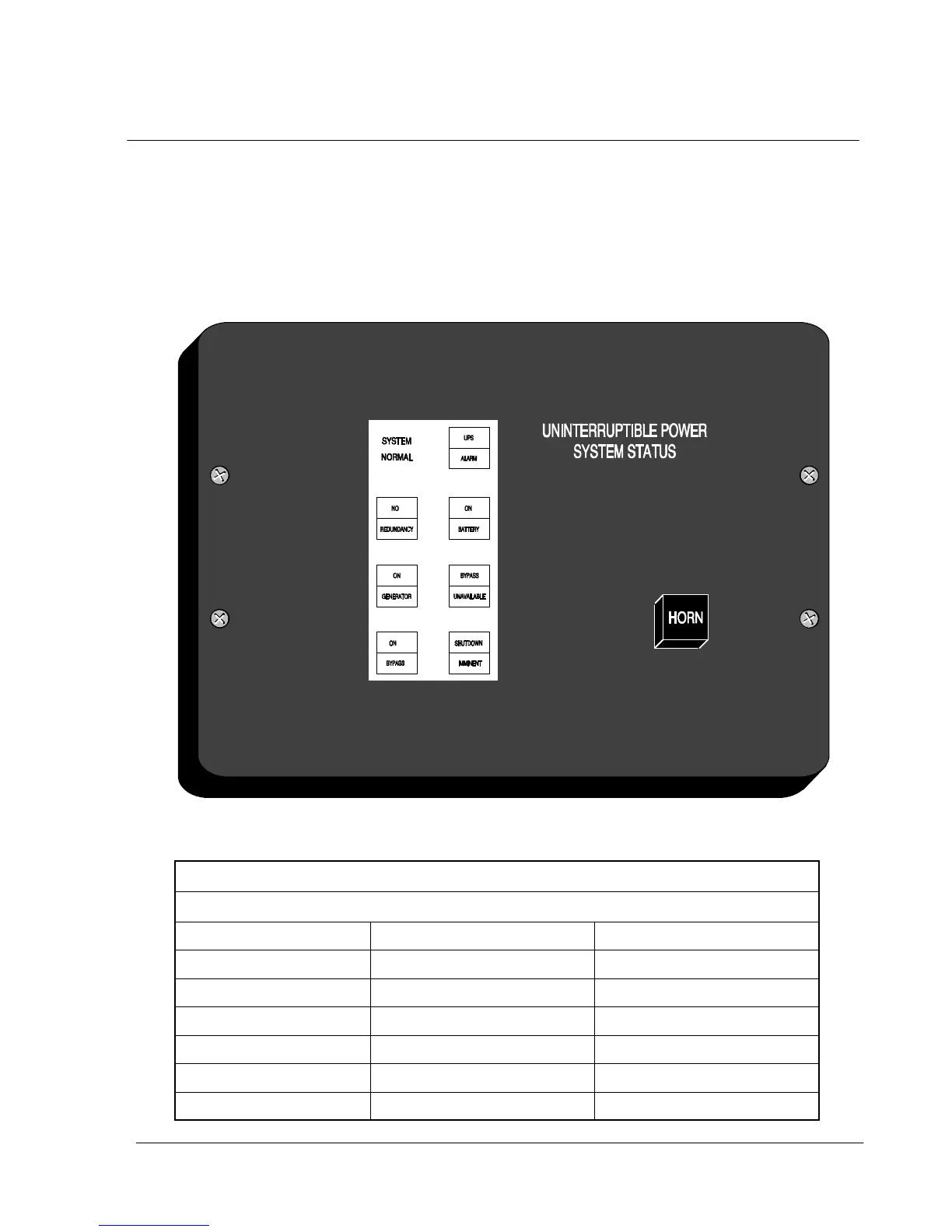

Figure 20. Remote Monitor Panel
Table 1. Optional Monitoring Accessories
Number and Type of Accessories Permitted
Remote Monitor Panel Relay Interface Module Supervisory Contact Module
2 — —
— 2 —
— — 2
1 1 —
1 — 1
— 1 1
