PPC 300 - The Printer User Interface

300 Card Printer – User Guide
8
THE PRINTER USER INTERFACE
Ethernet
USB 2.0 24v DC Input

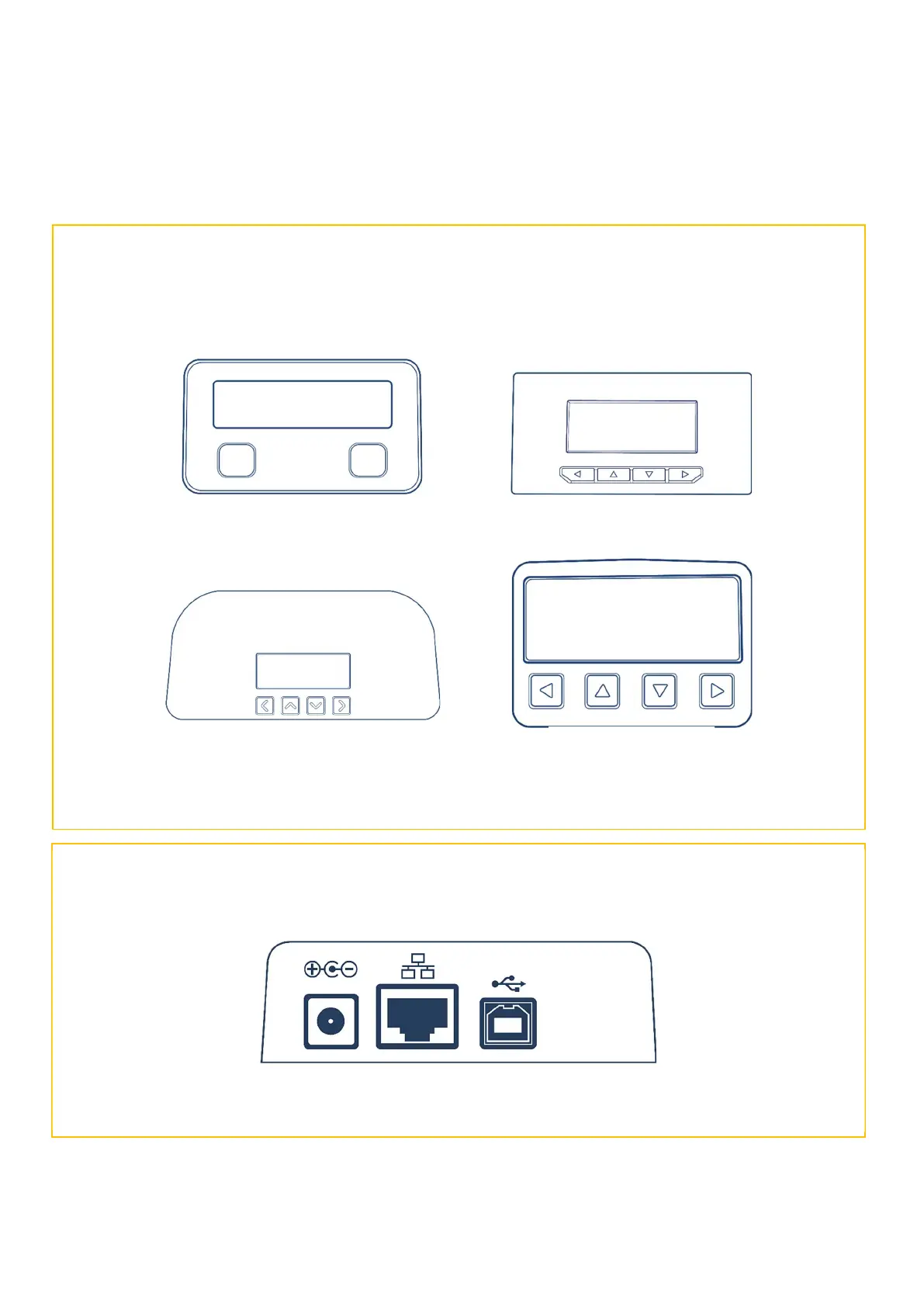

FRONT USER INTERFACE PANELS FOR COMPARISON ONLY (not to scale)
In each case, the front panel buttons are used (in conjunction with the front panel display) to navigate through the
various printer User and Maintenance menu options (please see pages 9 - 11 for details).
** NOTE: Printer menu options may differ depending on printer model.
300 Front Panel
360 Front Panel
D and K Front Panel
600 Front Panel
REAR USER INTERFACE
PANEL
300 Rear Panel
