PR electronics 2224 Manual

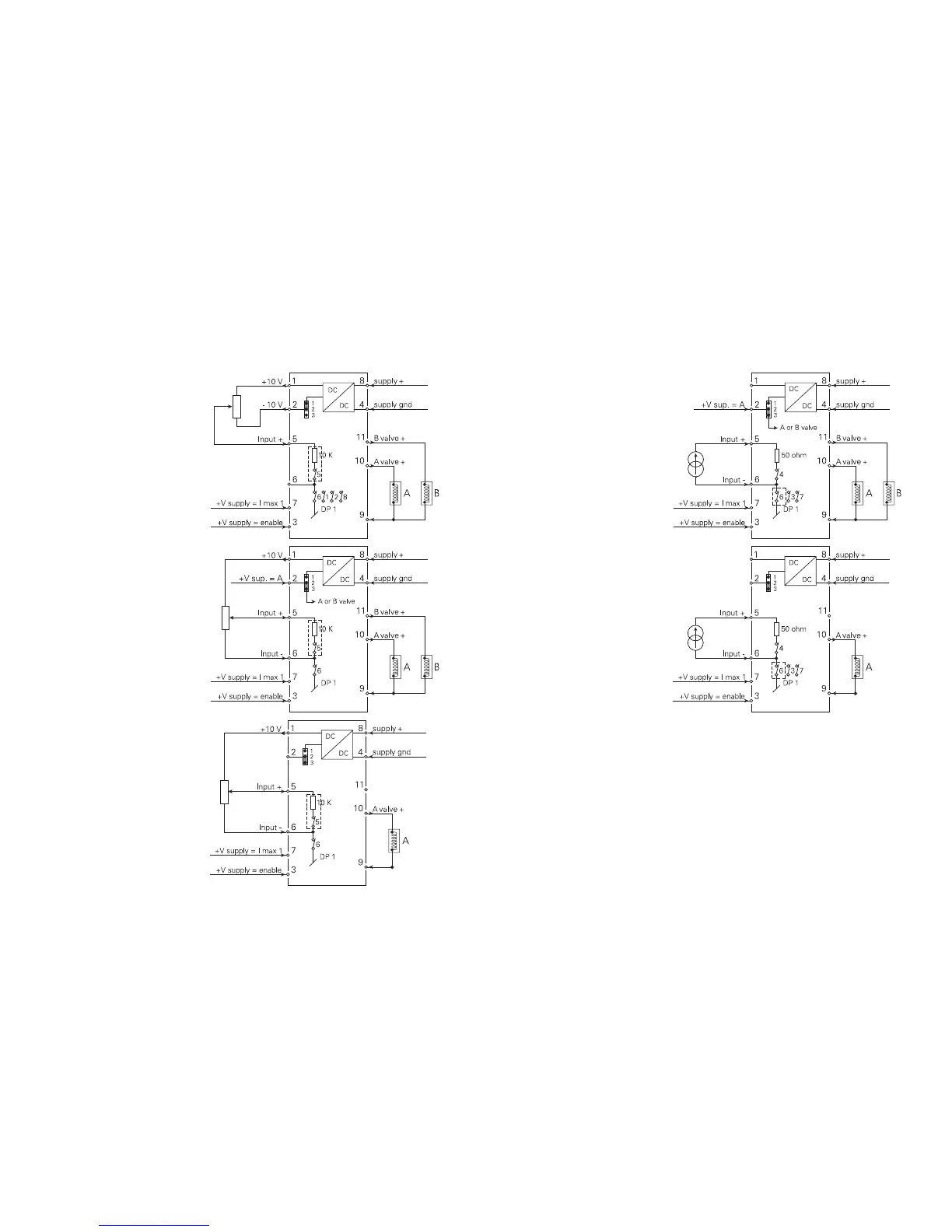

WIRING DIAGRAMS FOR
DC CURRENT INPUT
Double valve control (A/B
valves) from a 4...20 mA
input signal.
DIP-switch programming:
Function 1 or
Function 2.
Single valve control from
a 4...20 mA input signal.
DIP-switch programming:
Function 1.
29
WIRING DIAGRAMS FOR JOYSTICK /
POTENTIOMETER INPUT
Double valve control (A/B
valves) from +/-10 VDC
reference supply.
DIP-switch programming:
Function 2.
Double valve control (A/B
valves) from +10 VDC
reference supply.
DIP-switch programming:
Function 1 or
Function 2.
Single valve control from
+10 VDC reference supply.
DIP-switch programming:
Function 1.
28
