0.0. DEFAULT - Output percentage value of I
valve
is displayed.
At power ON, or if no keys have been activated for a period of 2 minutes,
the display returns to default.
1.0 VAL - Enter password.
1.1 PAS - Programming access.
Accepted password is valid until power off.
The password is 030.
2.0 CUA - Setting of currents for A valve.
2.1 LOA - Spring response for A valve.
The parameter is entered as a percentage of the I
valve
.
Valid selections are 0...99.9%.
2.2 IA1 - Current limit
Imax1.
The parameter is entered as a percentage of the I
valve
.
Valid selections are 0...99.9%.
2.3 IA2 - Current limit
Imax2.
The parameter is entered as a percentage of the I
valve
.
Valid selections are 0...99.9%.
3.0 CUB - Setting of currents for B valve.
Please see the setup of the A valve (2.0 CUA).
4.0 RAN - Setting of ramp parameters.
4.1 ON - Selection of on/off ramp.
1 = ramp enable, 0 = ramp disable.
Valid selections are 0 or 1.
4.2 UP - Setting of ramp time up.
The ramp time is set in seconds.
Valid selections are 0...10 s.
4.3 DO - Setting of ramp time down.
The ramp time is set in seconds.
Valid selections are 0...10 s.
35
PROGRAMMING / OPERATING
THE FUNCTION KEYS

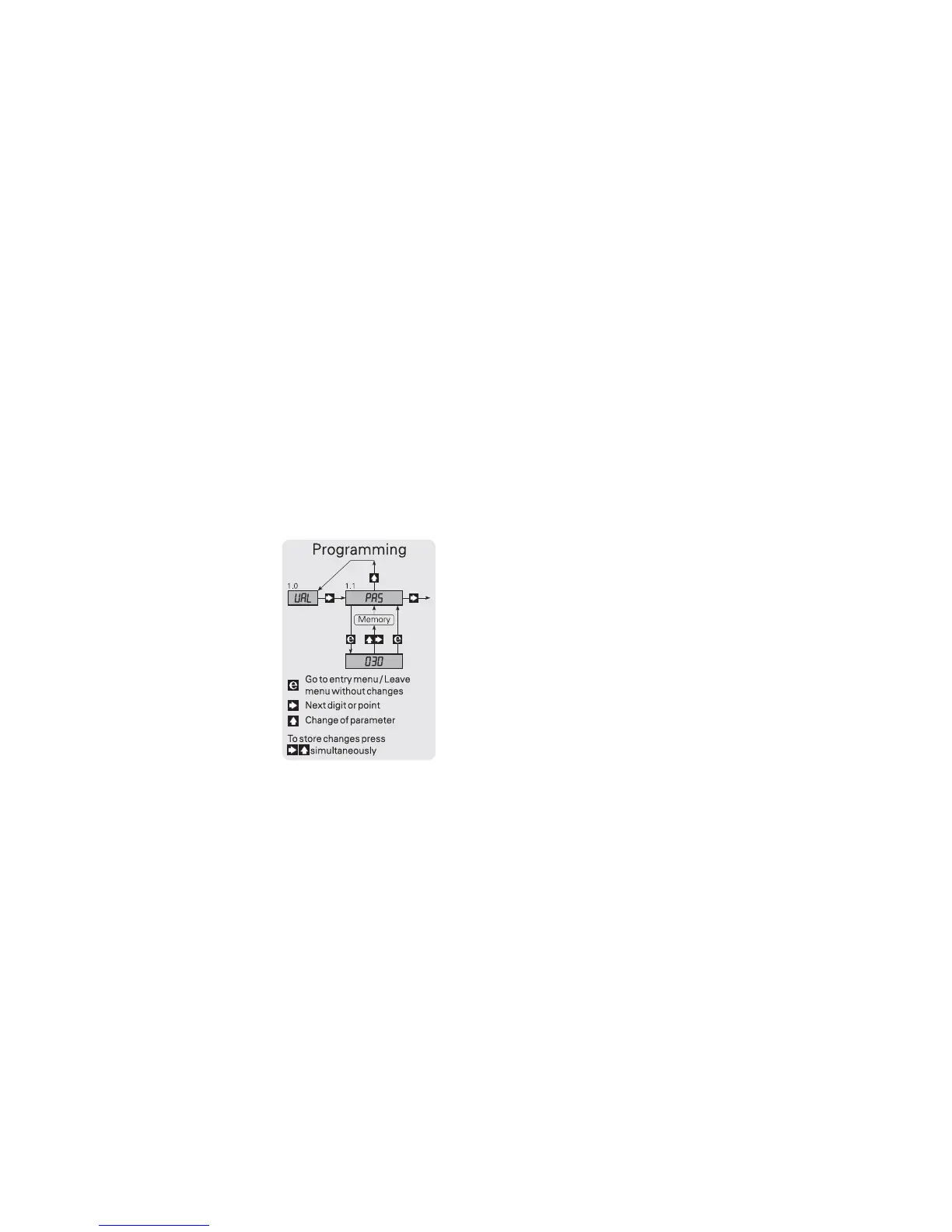

DOCUMENTATION FOR ROUTING DIAGRAM
General:
The programming is menu-controlled. The main menus are numbered in
level 0 (X.0), and the submenus are numbered in level 1 (X.1 to X.4). Each
submenu has an accompanying entry menu. The menus are structured in
such a way that the menus most frequently used are closer to the default
menu 0.0. Please note that programming is only possible when submenu
1.1 PAS has the value 030.
All changes are not permanently saved in the EEP rom, until you return to
menu 0,0.
Menus and submenus are selected by the
3 function keys
3, 1, and 2 as outlined
in the routing diagram.
Activating
2 in the submenu will display
the current value in the entry menu.
In entry menus, the digit that can be
changed will flash.
Active digit position is shifted by the
3
key, and the value is changed by the
1
key.
In parameter selection menus you switch
between the parameters by using the
1
key.
To store changes temporarily press
31
simultaneously.
To store changes permanently go to menu 0,0.
To return to the previous menu without changing the parameters - press
2.
34
