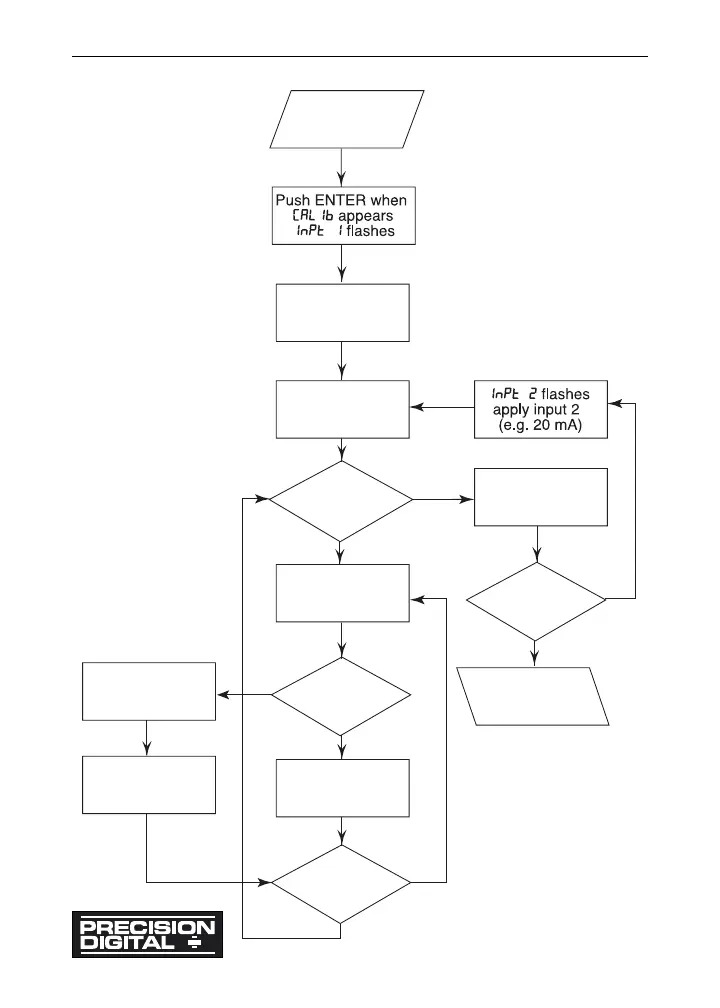

Figure 13: Two-point External Calibration Flow Chart
Model PD690 Universal Process Meter Instruction Manual
18
www.predig.com
Calibration
Complete!
Push ENTER
Apply
input 1 signal
(e.g. 4 mA)
Push ENTER
Is
entire flashing
display OK?
Push ENTER
Wait for
digit to flash
Has
input 2 been
calibrated
yet?
Is
the flashing
digit OK?
Push ENTER
Push
ENTER when OK
Wait for digit
to scroll
Is
entire display
flashing?
YES
YES
YES
YES
NO
NO
NO
NO
