C524, C524i Elliptical Fitness Crosstrainer
Page 75
Procedure 7.26 - Replacing a Ramp Mounting Bracket
Warning: Care must be taken when work is being performed in the area of the stairarms. Pinch
points exist between the stairarm and ramp and between the stairarm and crankarm,
when the rear covers are removed.
Procedure
1. Remove the front, top, left and right rear cover sections per Procedure 7.15.
2. Rotate both stairarms to the rear, so that they are resting on the floor to the rear of the EFX.

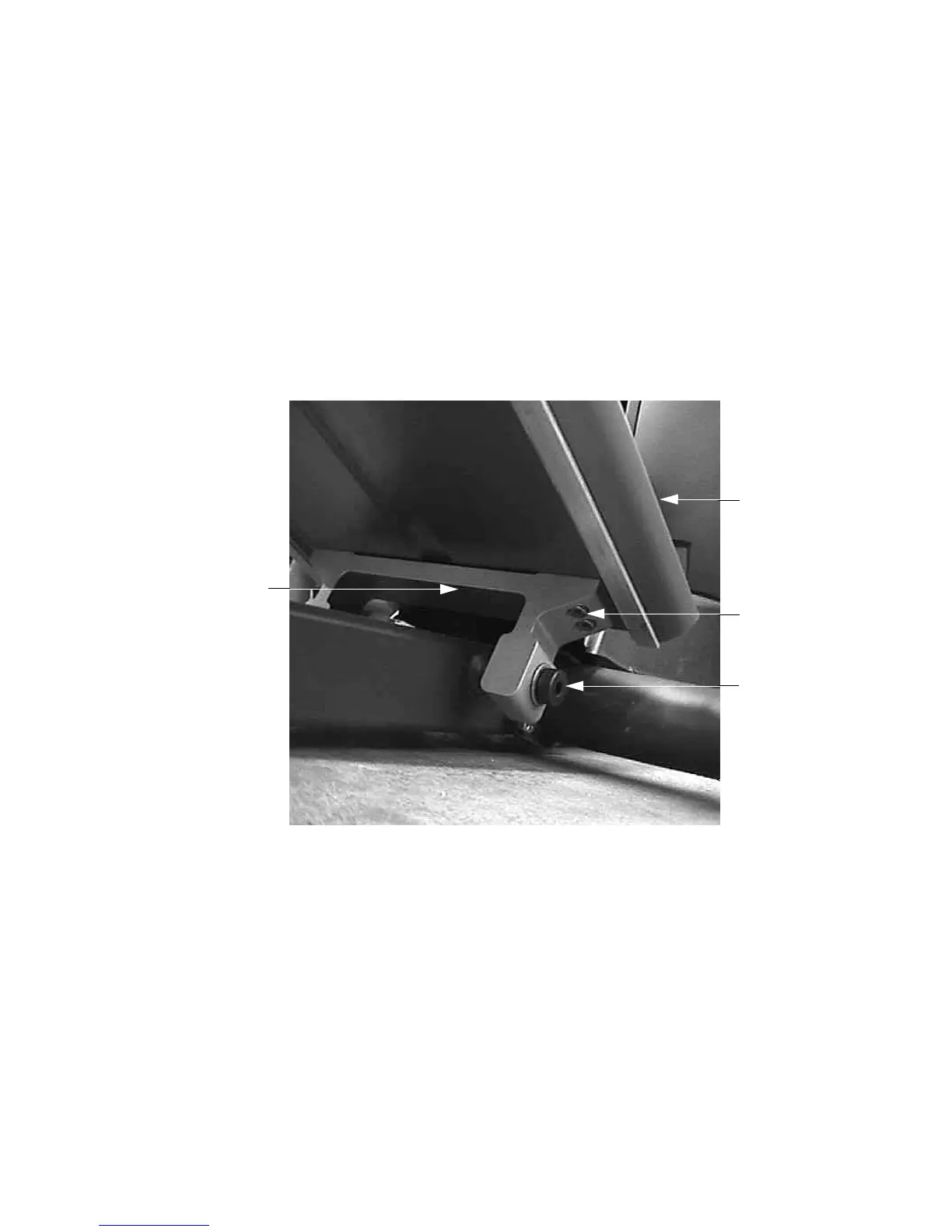

Diagram 7.23 - Ramp Mounting Bracket
3. Remove the four bolts that fasten the ramp to the rear ramp bracket.
4. Remove the four bolts that fasten the lift yoke to the ramp.
5. Slide the ramp off of the lift yoke and remove the ramp from the EFX.
6. Remove the two bolts, wave washers and shims that fasten the ramp mounting bracket to
the frame. Remove the ramp mounting bracket from the frame.
Ramp Bracket
Ramp
Mounting Bolt
Mounting Bolt
To Next Page
