5. Thread the cable down through the opening under the second pulley, as
shown in the following figure.

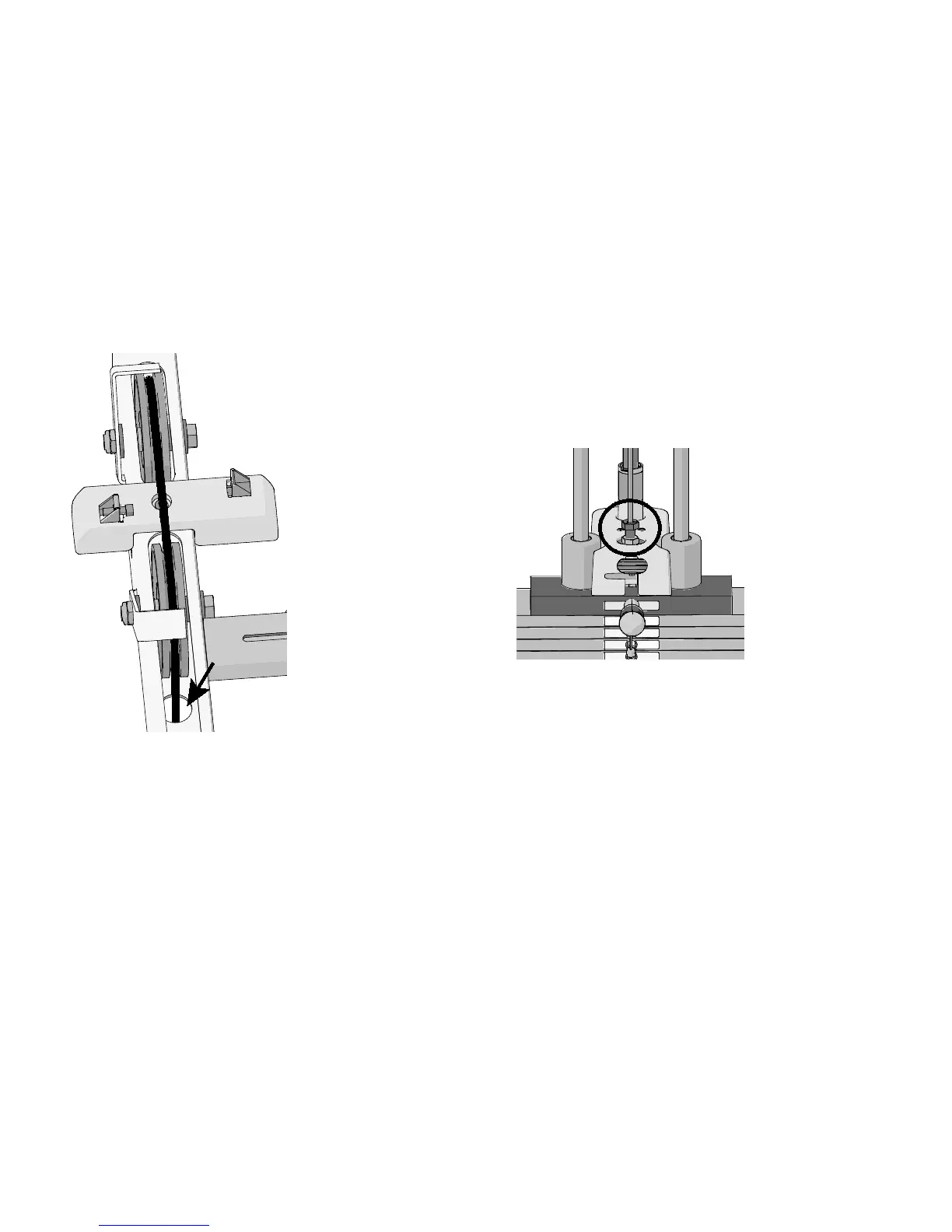

Figure 15: Cable route down through weight tower frame
6. Guide the cable down to the weight stack. Remove and discard the
temporary bolt threaded into the selector stem on the weight stack.
7. Insert the cable bolt into the stem and thread it at least 7 threads (turns).
The distance from the underside of the bolt head to the top of the weight
selector stem should be no more than 1¹₄-inch (32 mm).
Important: Make sure at least seven (7) threads on the cable bolt extend into
the selector stem.
Figure 16: Cable attachment into weight stack
