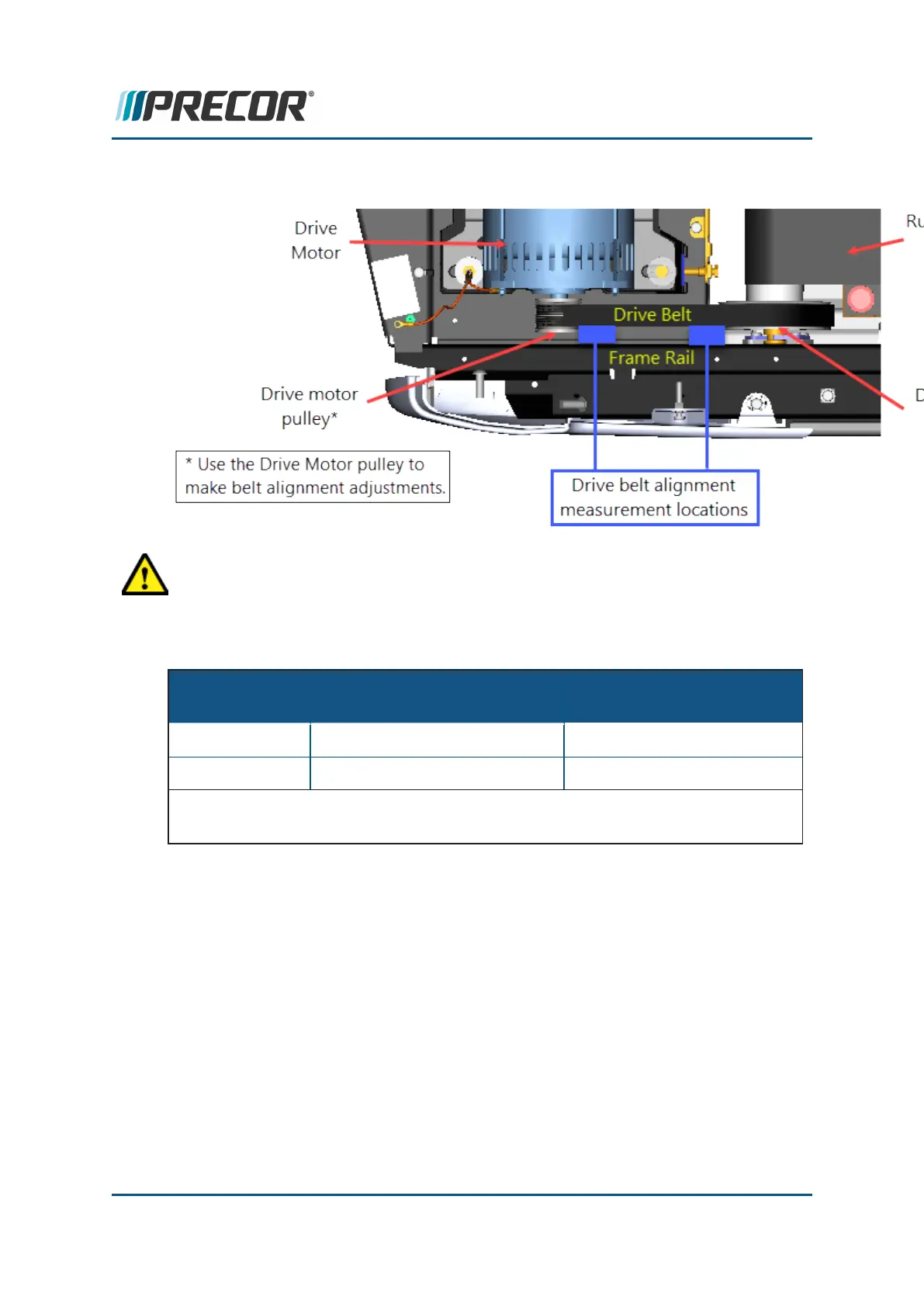

measured distances are the same.
CAUTION: A misaligned drive belt can cause high pitch belt noises, damage to the
belt, and possible drive motor pulley or drive roller pulley hardware damage.
5. Tension the drive belt to specification, see "Drive Belt Tension and Alignment Adjust-
ment" on page 57.
Drive Belt
Condition
(1)
Drive Belt
Tension Verification Belt Tension
New
(1)
110 lbs +/- 10 (50 kgs +/- 4.5) 100-120 lbs (45-54 kgs)
Used
(1)
85 lbs +/- 5 (39 kgs +/- 2) 80-90 lbs (36-41 kgs)
(1) New belt tension applies to new belt first time installations. Used belt tension
applies to reinstalling an existing belt or re-tensioning an existing used belt.
6. Complete the running belt installation by verifying the running belt alignment and
tracking, see "Running belt alignment and tracking adjustment" on page 66.
7. Reinstall the hood cover, see "Covers and Panels Replacement" on page 80.
8. Do the Operation Verification tests (see "Operation Verification" on page 23) and
return to service.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 129
6 Replacement Procedures
Drive Belt Replacement
