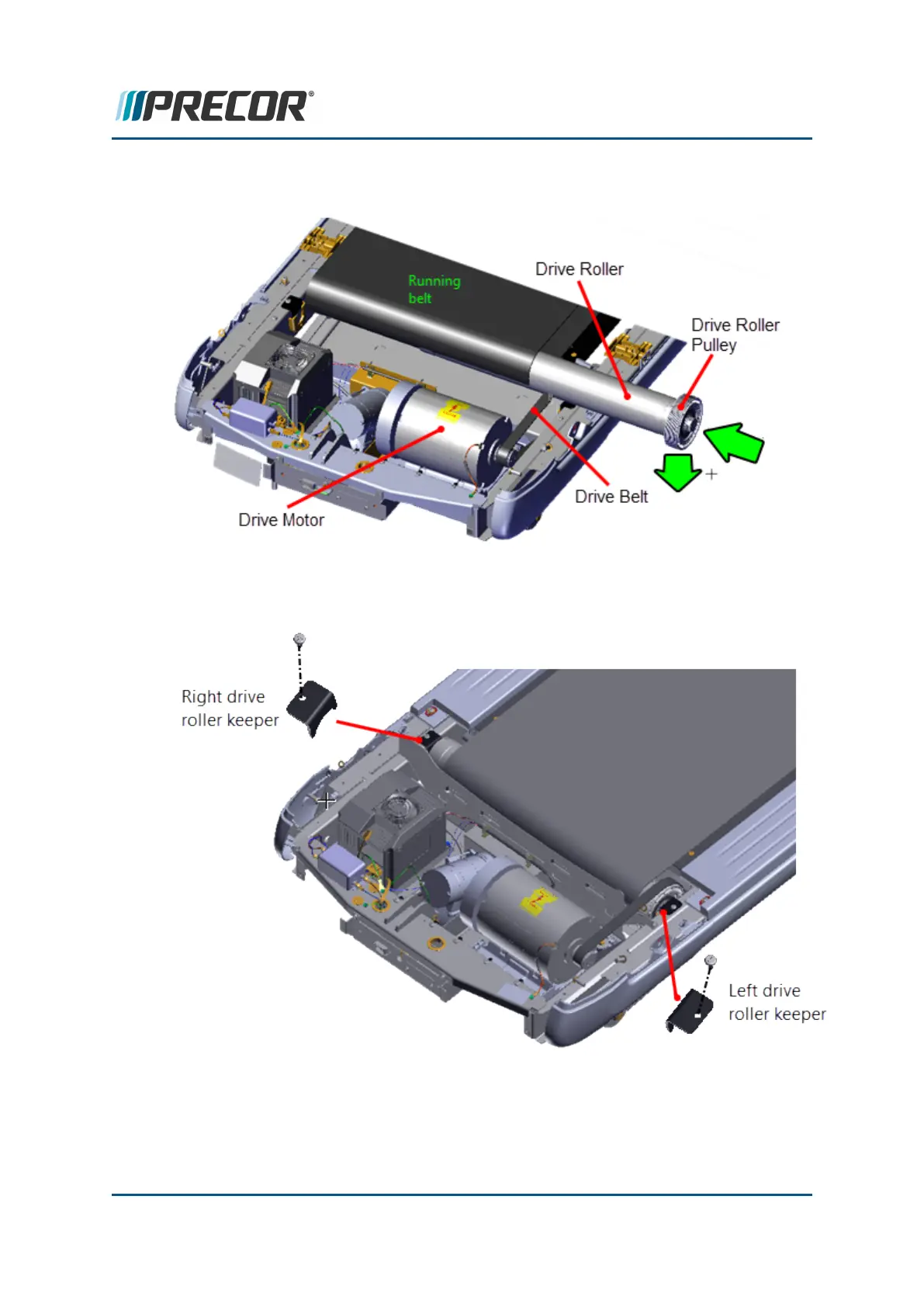

1. Place the Drive Roller thru the Running Belt and then set the Roller back into position
in the mounting brackets.
2. Reinstall the left and right Roller Keepers and secure using the #3 screw fasteners
(one fastener per Keeper).
3. Center and square the running belt onto the Take-up and Drive rollers and tension to
specification, see "Running Belt Tension and Tracking Adjustment" on page67. Do
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 172
6 Replacement Procedures
Drive Roller Replacement
