not verify tracking or apply power at this step in the process, the running belt tracking
will be verified after the Drive Belt is installed.
Note: 1) The running belt tension adjustment is performed with the drive pulley:
removed.
2) Tension the running belt to specification prior to adjusting the Drive Belt ten-
sion.
4. Install the drive belt. Place the Drive Belt onto the Roller pulley and then walk the belt
onto the Drive Motor pulley.

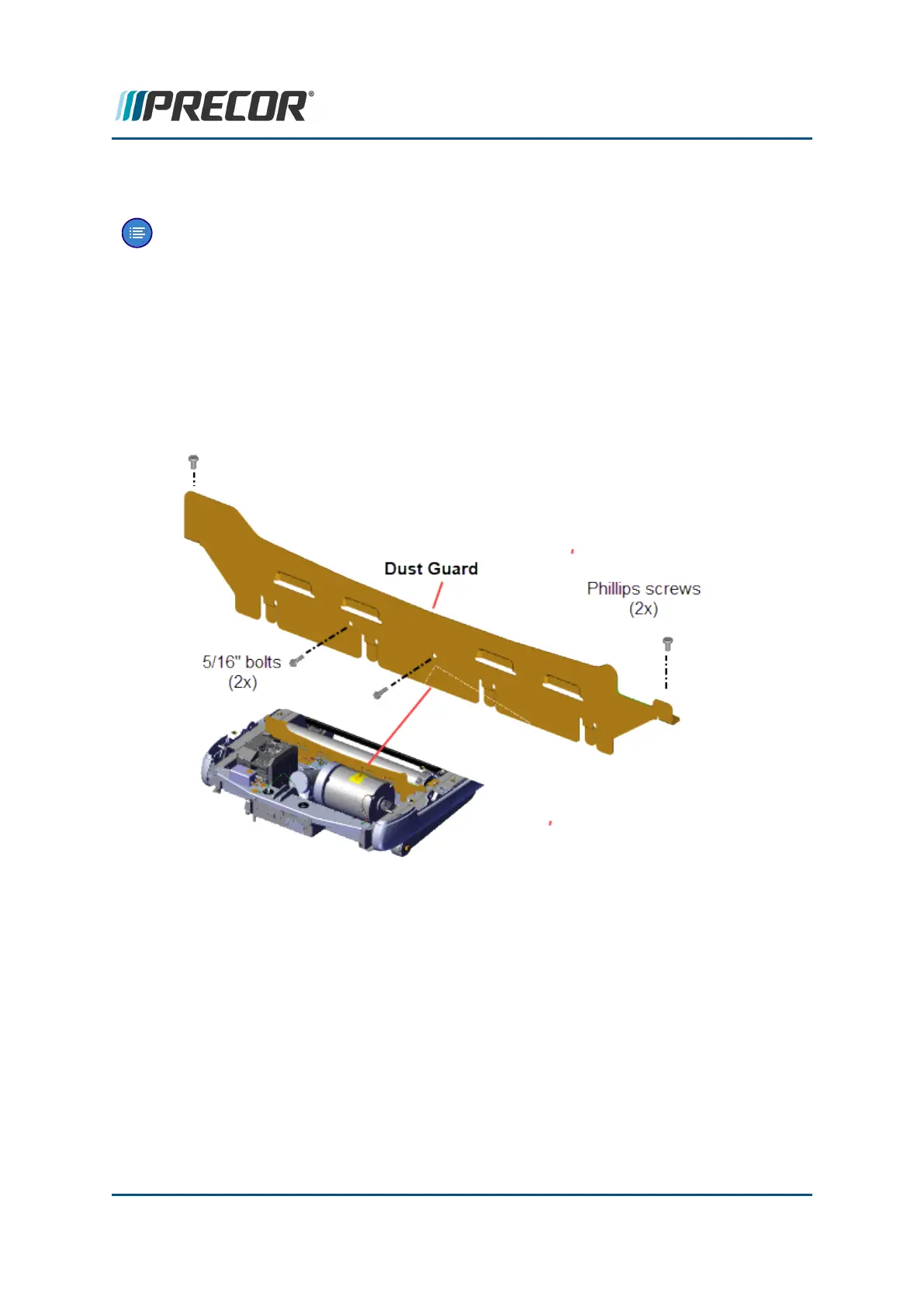

5. Reinstall the Dust Guard and secure using the two #3 Phillips and two 7/16" hex head
fasteners. Make sure to insert the left Dust Guard bracket through the Drive Belt pul-
ley before securing the fasteners.
6. Make sure the Drive Belt pulley alignment is correct and then tension the Drive Belt to
specification. see "Drive Belt Tension and Alignment Adjustment" on page58.
7. Connect the power cord and switch the ON/OFF circuit breaker to ON.
8. Operate the treadmill and verify the running belt tracking, see "Running Belt Tension
and Tracking Adjustment" on page67.
9. Reinstall the hood cover, see "Covers and Panels Replacement" on page86, and
left/right Landing Trim covers, see "Covers and Panels Replacement" on page86.
10. Do the Operation Verification tests (see "Operation Verification" on page24) and
return to service.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 173
6 Replacement Procedures
Drive Roller Replacement
