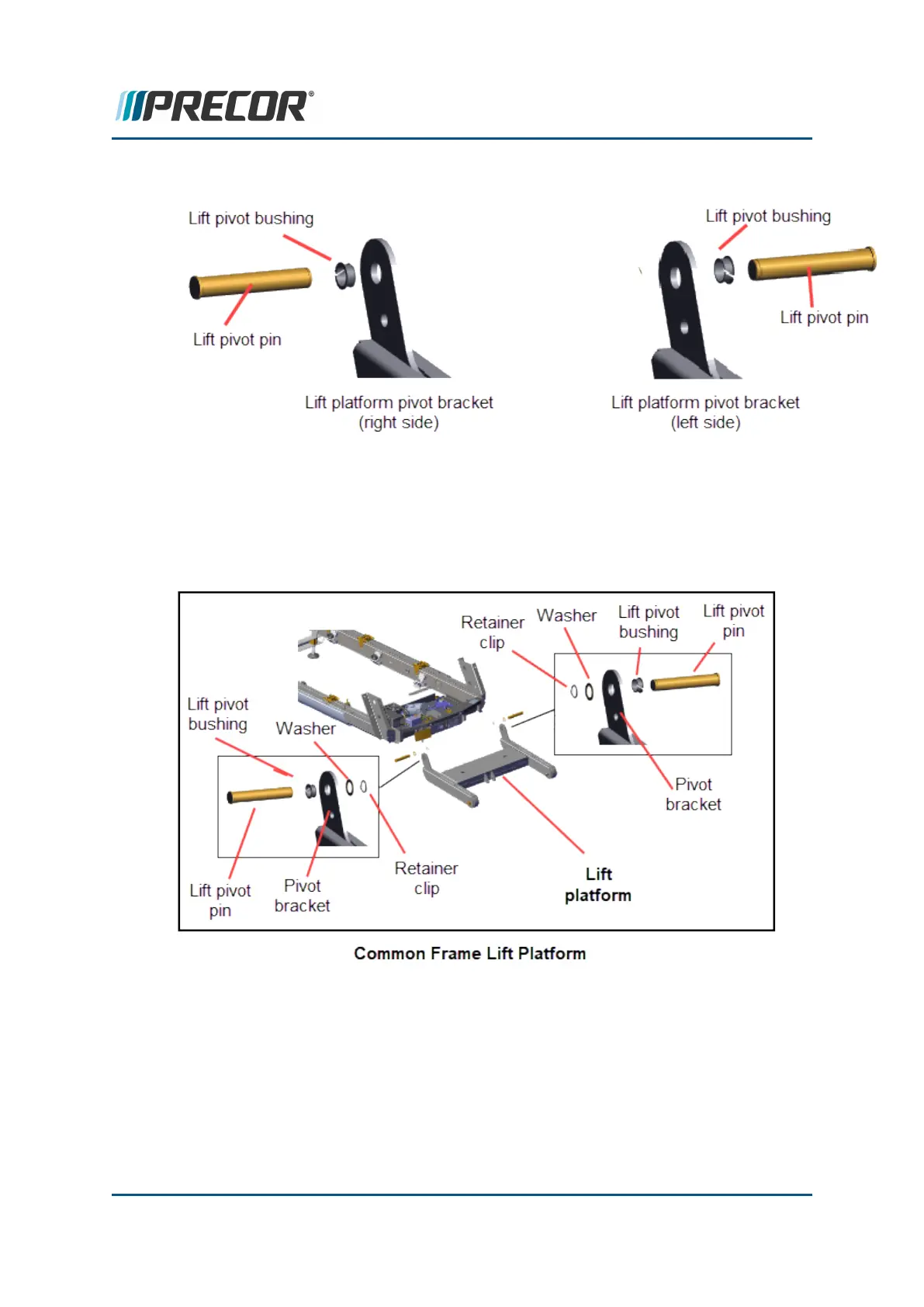

2. Common Frame configurations:
3. Insert the left and right lift pivot pins into the frame rail and stop at the inside edge of
the frame rail. Then place the lift platform into position and slide the left and right lift
pivot pins through the lift platform pivot brackets. Secure using the washers (2x) and
retainerclips (2x).
4. Legacy Frame configurations: Insert the left and right lift pivot pins into the frame rail
and stop at the inside edge of the frame rail. Then place the lift platform into position
and slide the left and right lift pivot pins through the lift platform pivot brackets. On the
left side, secure using the washer and hitch pin. On the right side secure using the
hitch pin.
Contact Precor Customer Support at support@precor.com or 800.786.8404 with
any questions.
Page 217
6 Replacement Procedures
Lift Platform Replacement
