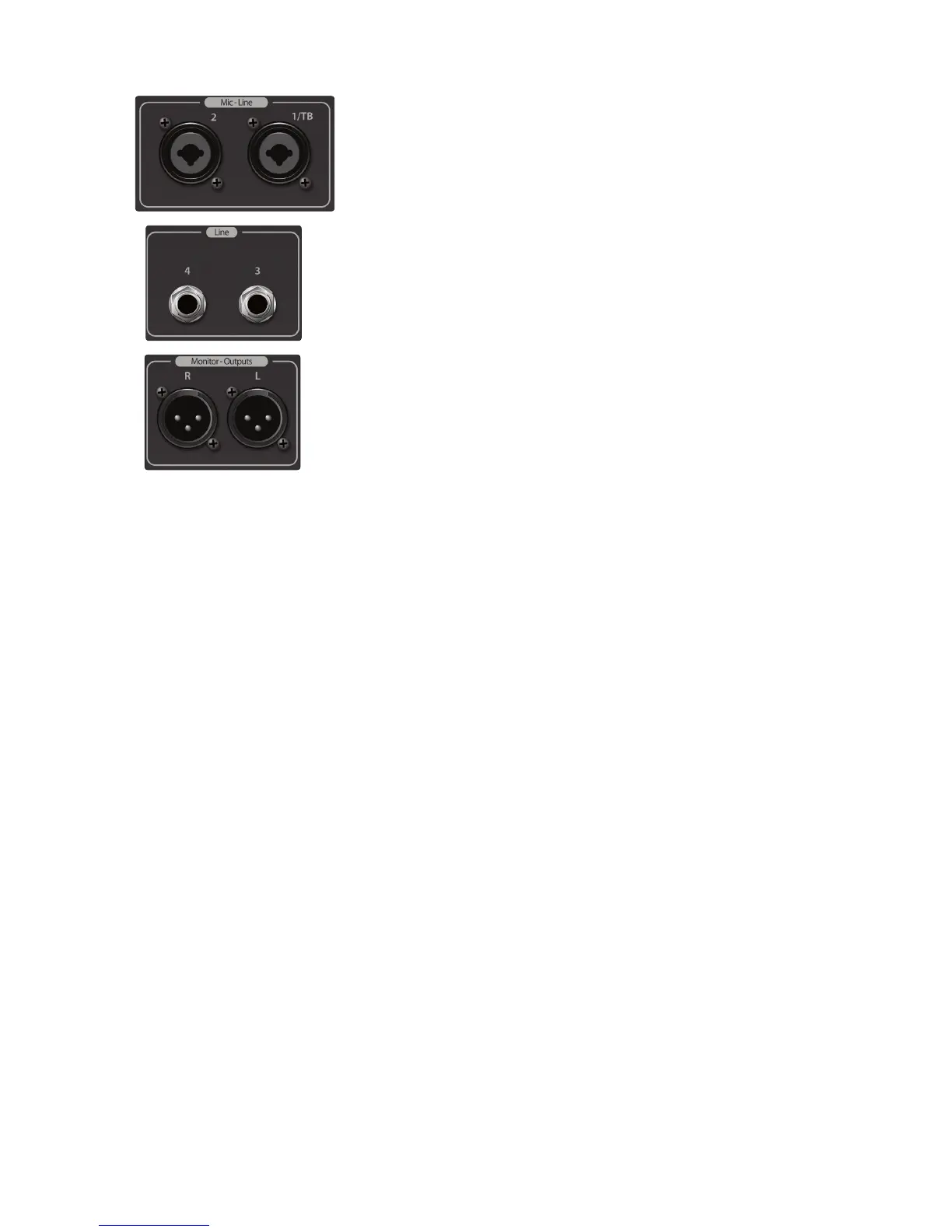

7. Mic/Line Inputs. These XLR-TRS combo jacks feed the microphone and
line inputs for the control surface. The XLR feeds through a recallable XMAX
preamp. The TRS input feeds the line-level input and bypasses the preamp
with a fixed signal to the analog-to-digital converter.
8. Line Inputs. TRS jacks provide two additional line inputs, perfect for 2-track
playback devices at front-of-house.
9. Monitor Outputs. Electrically balanced XLR-M jacks provide the monitor outputs
for the control surface. The level is controlled with the top-panel Monitor knob.
The source mirrors the headphone outputs.
