System Installation

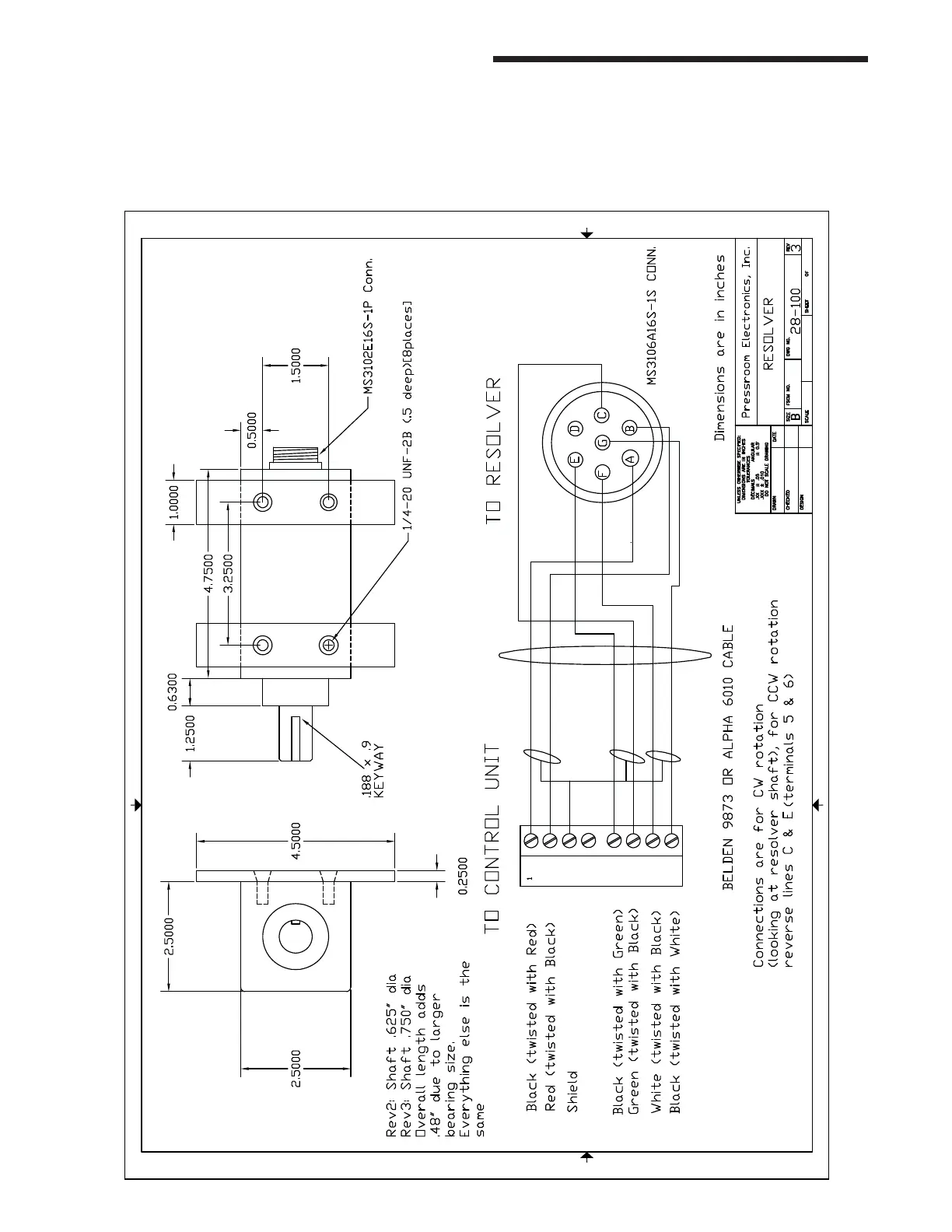

Resolver Dimensions & Wiring (#28-100R3)

Dimensions in inches

For millimeters multiply by 2.54

Note: Rev3 diameter shaft is from 9/2015 forward. Rev2 is up to 9/2015.
