Gobo Wheel Standard Configurations

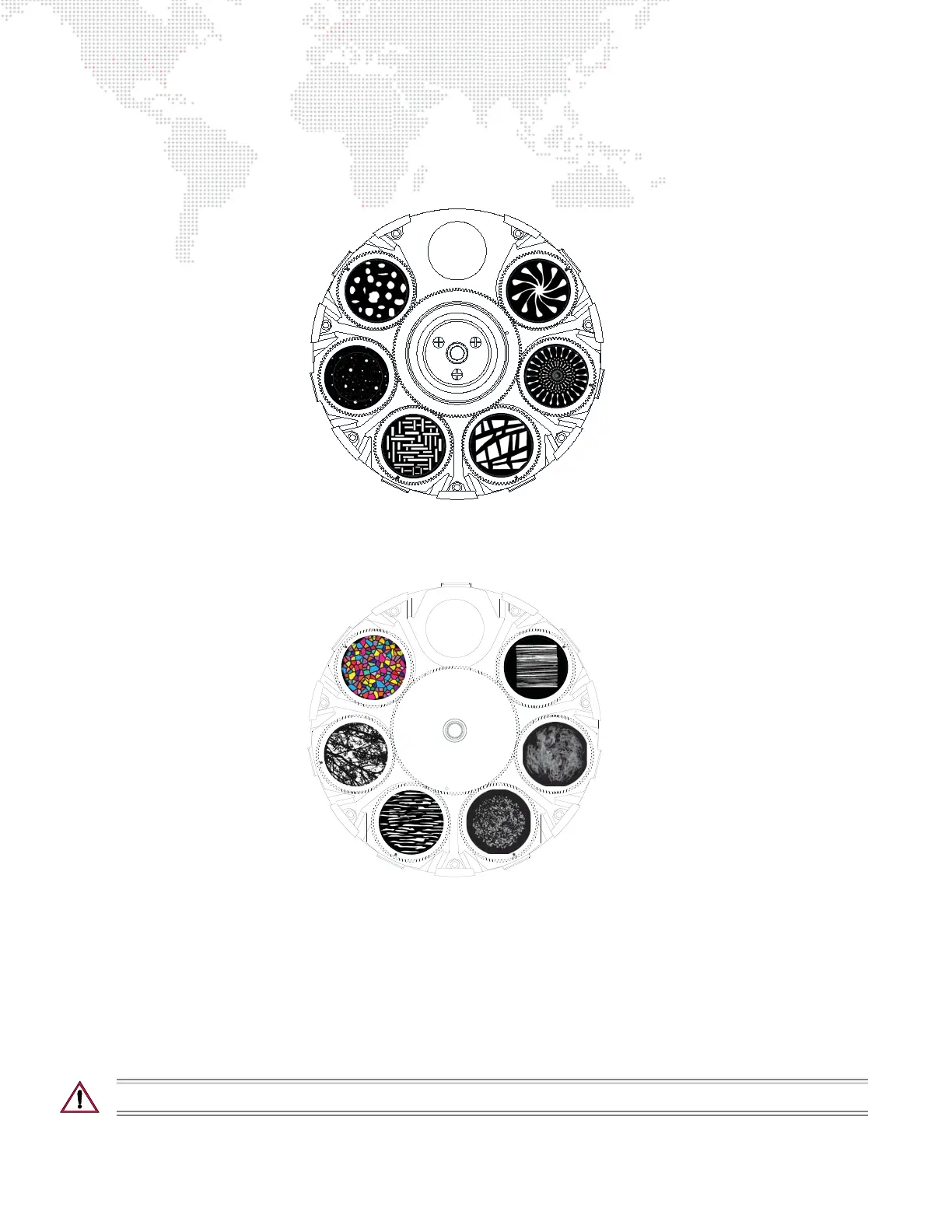

The following drawings show the standard Gobo Wheel configurations.
Figure 1-5: Gobo Wheel Standard Configurations
About Moiré Gobos
Moiré gobos contain two pieces of glass: one that is fixed and another that rotates. Since the two pieces of glass are
very close together, it creates an interesting interference effect (which is referred to as the "moiré"). Due to this
construction they do not contain sensors, and therefore cannot be calibrated to a certain orientation at startup as with
standard gobos.
CAUTION: Moiré gobo positions MUST be set using the menu system.
GOBO WHEEL 1
GOBO WHEEL 2
POSITION #1
JUST ROCKS
(17.1131.1007.01)
OPEN
POSITION #2
PIN HOLE BREAKUP
(17.1131.1002.00)
POSITION #3
SLITS
(17.1131.1001.00)
POSITION #4
SLATE WALL 4
(17.1131.1006.01)
POSITION #5
KALEIDOSCOPE MOIRÉ
(17.7101.0400.00)
POSITION #6
CLUBBED SPIRAL
(17.1131.1030.00)
OPEN
POSITION #1
CHICLETS
(17.1131.5000.00)
POSITION #2
OAK FOLIAGE 1
(17.1131.1010.00)
POSITION #3
CRACKLE LINEAR
(17.1131.1013.00)
POSITION #4
GHOST DUST
(17.1131.1022.04)
POSITION #5
FIREWATER ANIMATION
(17.7101.0401.00)
POSITION #6
STRAW 2
(17.1131.1022.03)
