Replacing a Gobo in Gobo Wheel 2
Due to the complex gear alignment, it is best to remove ALL gobos from the wheel even when replacing or swapping
only one gobo. This way all gobos can be re-installed at one time with the proper alignment. Recalibrating a single
gobo can be a difficult process.
Parts:
Standard or Custom Gobo(s), as required. (Refer to "Gobo Wheel Standard Configurations" on page 8.)
Tools:
#2 Phillips screwdriver
Cotton gloves or finger cots
WARNING: Remove power from luminaire before performing any maintenance procedures.
To replace a gobo:
Step 1. Remove power from luminaire.
Step 2. Remove R2/Designer Head Cover. (Refer to "Removing Head Covers" on page 69.)
CAUTION: Do not touch gobos with bare fingers. Wear cotton gloves or finger cots when handling.
Step 3. Using fingers, grasp frame of each gobo and pull out of wheel (Figure 4-10). Remove ALL gobos.

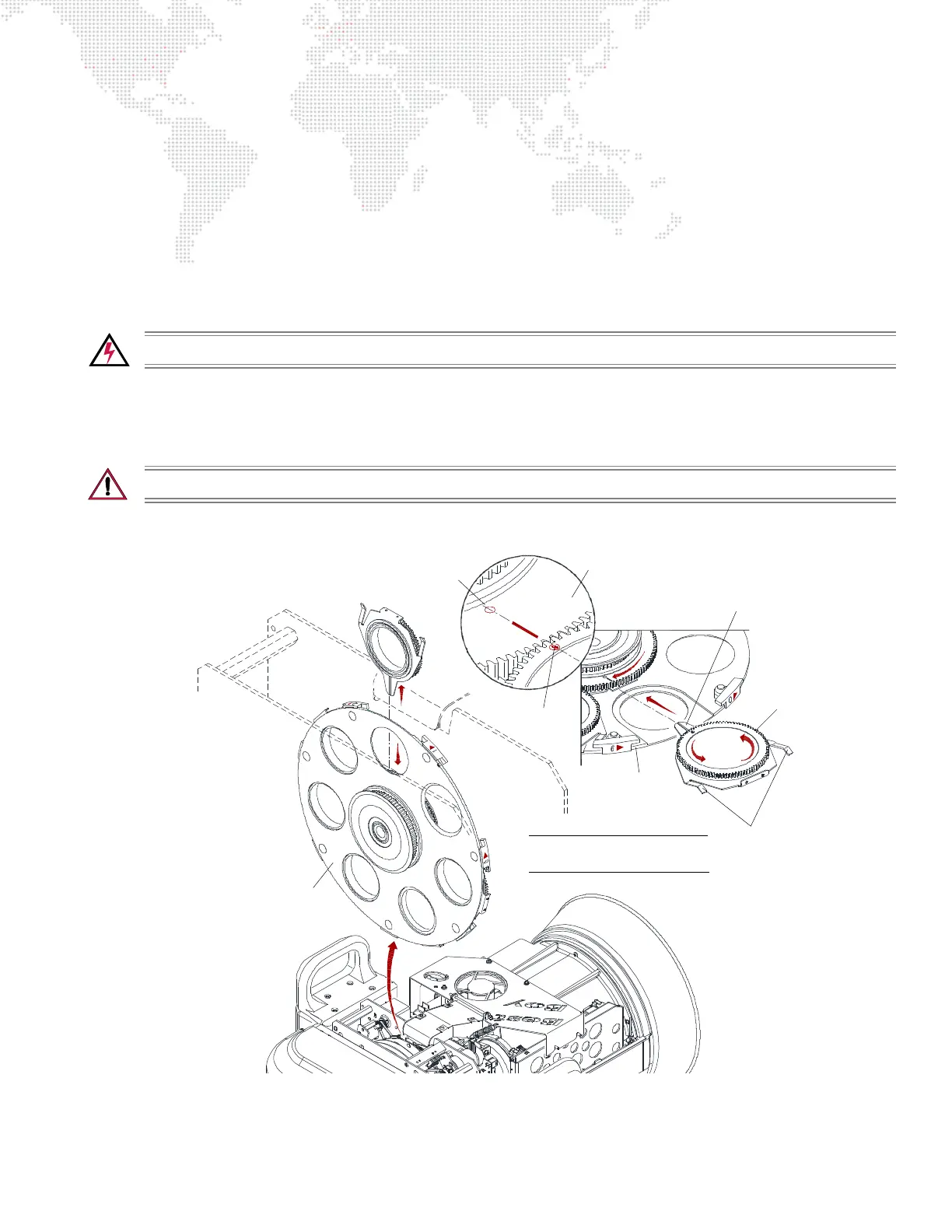

Figure 4-10: Replacing a Gobo (Wheel 2)
Gobo
Wheel
Sun Gear
Locking
Tongue
1
2
3
4
5
6
Note: Some components are
shown exploded for clarity.
Tab
Alignment
Mark
Magnet
Carrier Tab
