HP SPOT LUMINAIRE USER MANUAL
CAUTION: Allow lamp to cool before servicing.

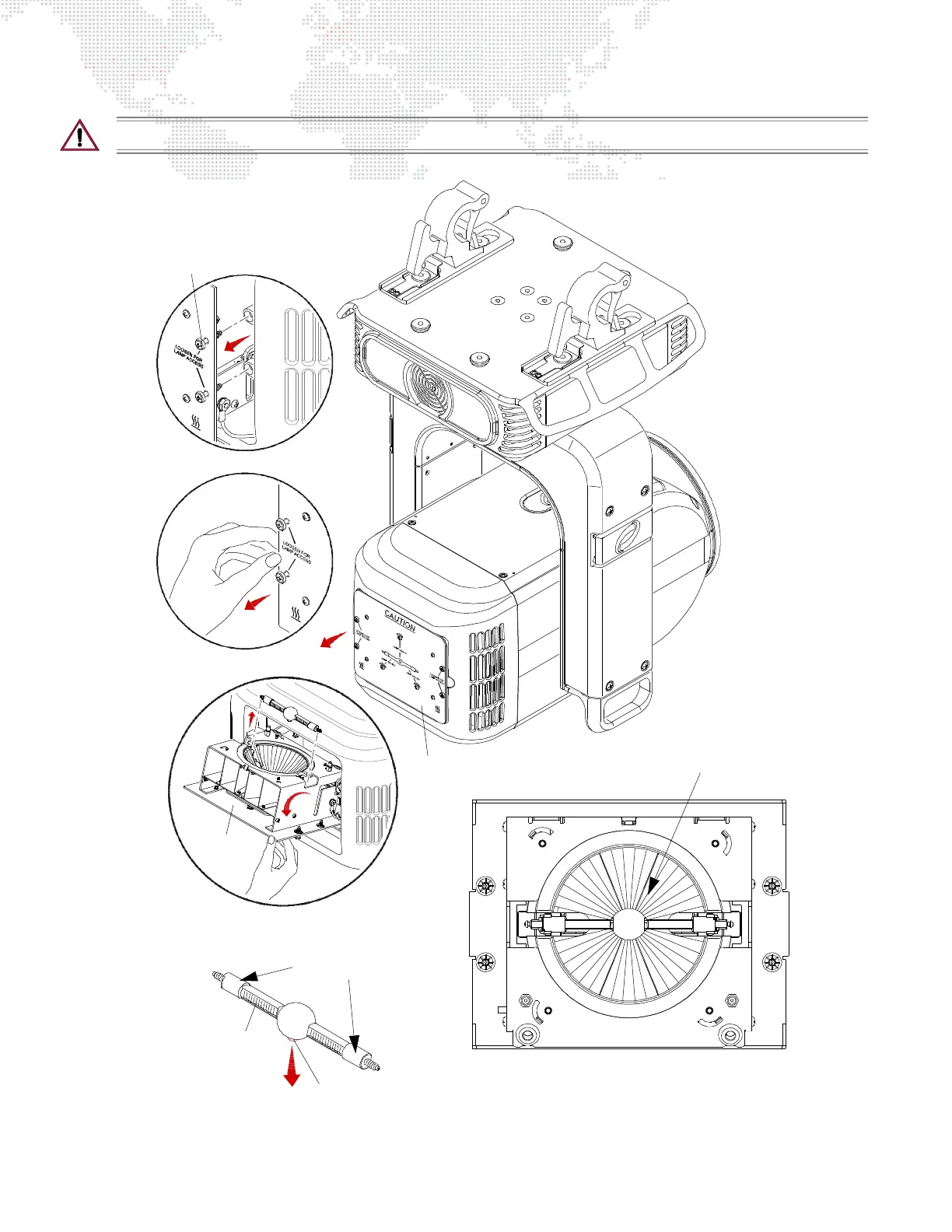

Figure 4-2: Replacing the Lamp
Lamp Box
Lamp
TOP VIEW
Captive Screw
(2 per side)
Pull lamp box out
using handles
Rotate lamp box
to access lamp
Lamp Box
Grip lamp at each
end to remove/install
Install lamp with nipple
facing rear of fixture
(towards reflector)
Nipple (install towards reflector)
