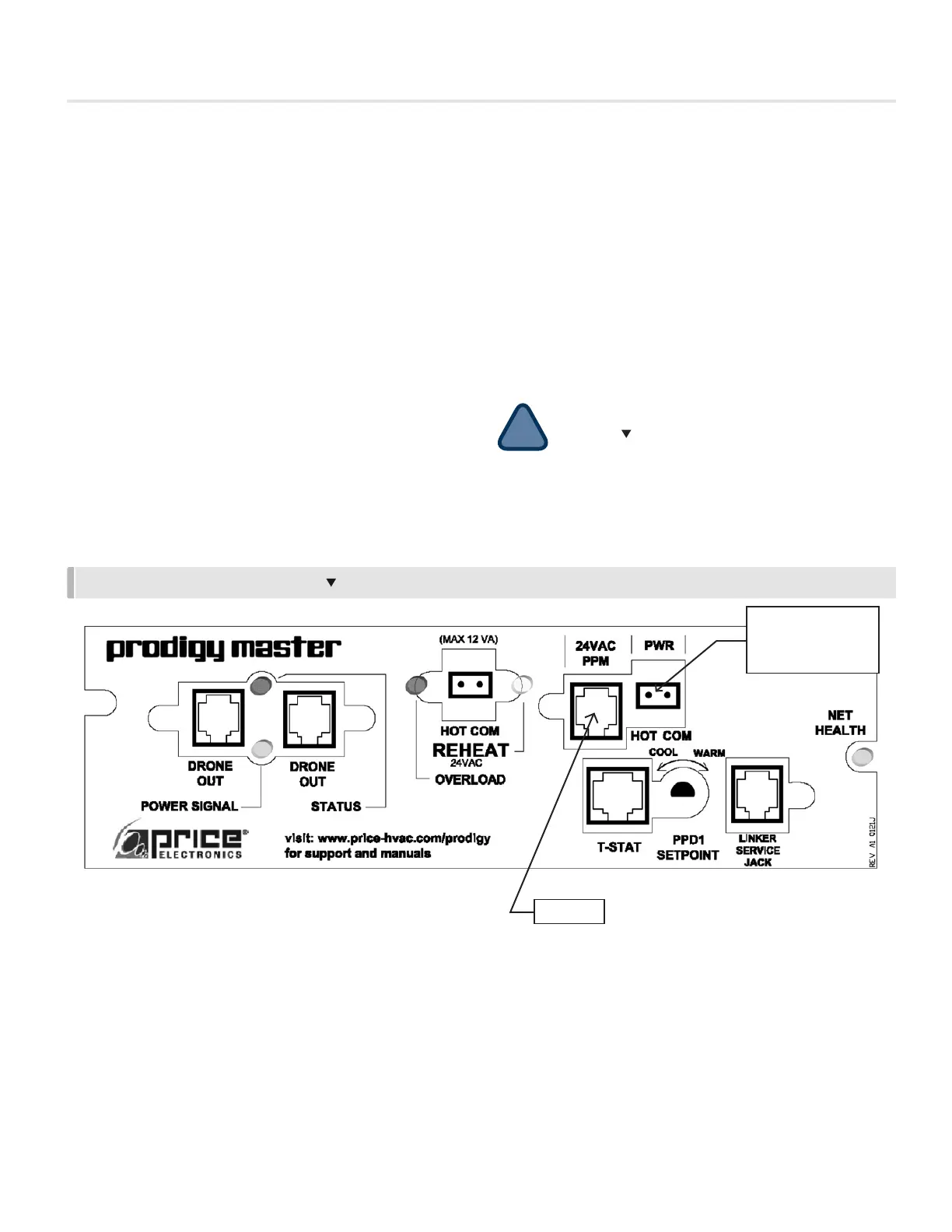

FIGURE 4 - MASTER JUNCTION PANEL
Power Supply to Master
All Prodigy Master units require a 24 VAC power supply and each draws 3.0 VA. There are three options for power:
1. Field Supplied 24 VAC
Connect 24 VAC and common lines to optional TP
(Terminal Plug). (One TP is supplied as a standard item in
the AUX HEAT output, and may be relocated for power
input if not required for AUX HEAT.)
2. TR115 / TR277 20 VA Transformer
Master units supplied with transformer mounted to
Prodigy Diffuser require field connection of primary power
supply and grounding. Secondary power supply will be
factory connected to pluggable 24 VAC PWR terminal
block.
See Mounting/Installation instructions on Page 9 if
transformer is shipped separately.
3. Price Power Module (PPM)
(See Mounting/Installation Instructions on Page 8)
Use a C35 (35’ Plenum rated snap-in cable) to connect
power output jack on PPM to power input jack on Prodigy.
Additional Prodigy Master Units can be powered by daisy-
chain connections if optional CS (Splitter Jack), is used.
See Page 8 for limitations.
HOT and COMMON 24 VAC polarity is critical and must be
consistent. 24 VAC COMMON must be EARTH ground in field
to ensure proper BACnet network communication.
NOTE
!
1. Field Supplied
and
2. Transformer
3. PPM
