Prima audison AP4.9 bit - Preset 0: Default: 2 Way Active Front + External Subwoofer

USER’S MANUAL
15
AP4.9 bit /
5
INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Mamory A: Acustic
Mamory B: Rhythm
*
Listening Point: Driver
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
= Max power suggested Loads: 280 W + SUBWOOFER
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
OUT 1 FRONT TW LEFT HI PASS Linkwitz 3000 Hz @12 dB 0 cm 70 W 130 W
OUT 2 FRONT TW RIGHT HI PASS Linkwitz 3000 Hz @12 dB 0 cm 70 W 130 W
PRE OUT SUB WOOFER LO PASS Linkwitz 80 Hz @12 dB 0 cm - -
OUT 4 FRONT WF RIGHT BAND PASS Linkwitz
80 Hz @12 dB
0 cm 70 W 130 W
3000 HZ @ 12 dB
OUT 3 FRONT WF LEFT BAND PASS Linkwitz
80 Hz @12 dB
0 cm 70 W 130 W
3000 HZ @ 12 dB
OUTPUT CONFIGURATION:
Out 1 (+) Out 4 (+) Out 3 (+) Out 2 (+) Out 1 (-) Out 4 (-) Out 3 (-) Out 2 (-)
WF
LEFT
FRONT
TW
LEFT
FRONT
WF
RIGHT
FRONT
TW
RIGHT
FRONT
to SUBWOOFER amplifier

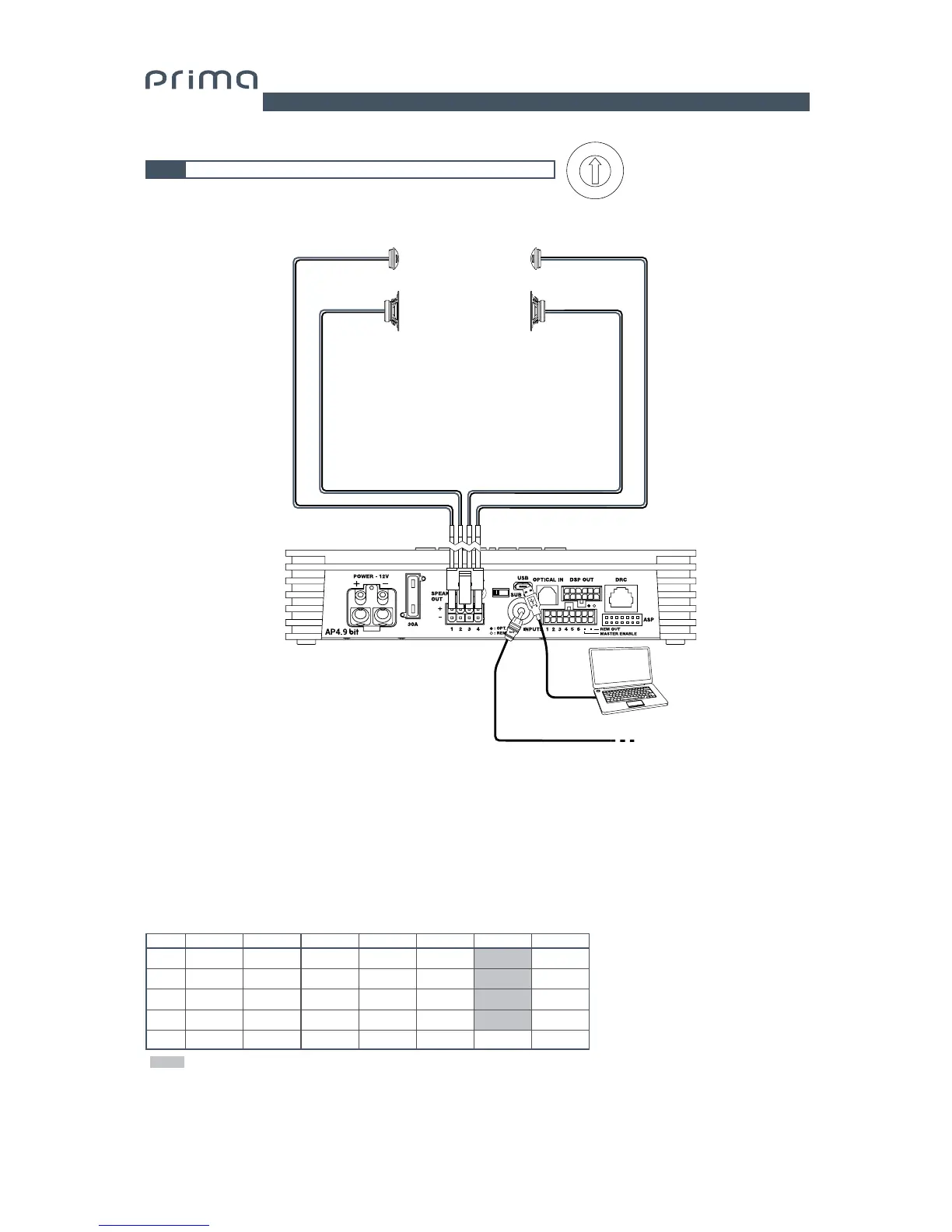

5.4.1 PRESET 0 DEFAULT: 2 WAY ACTIVE FRONT + EXTERNAL SUBWOOFER
1
2
3
4
5
6
7
0
