INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Mamory A: Acustic
Mamory B: Rhythm
*
Listening Point: Driver

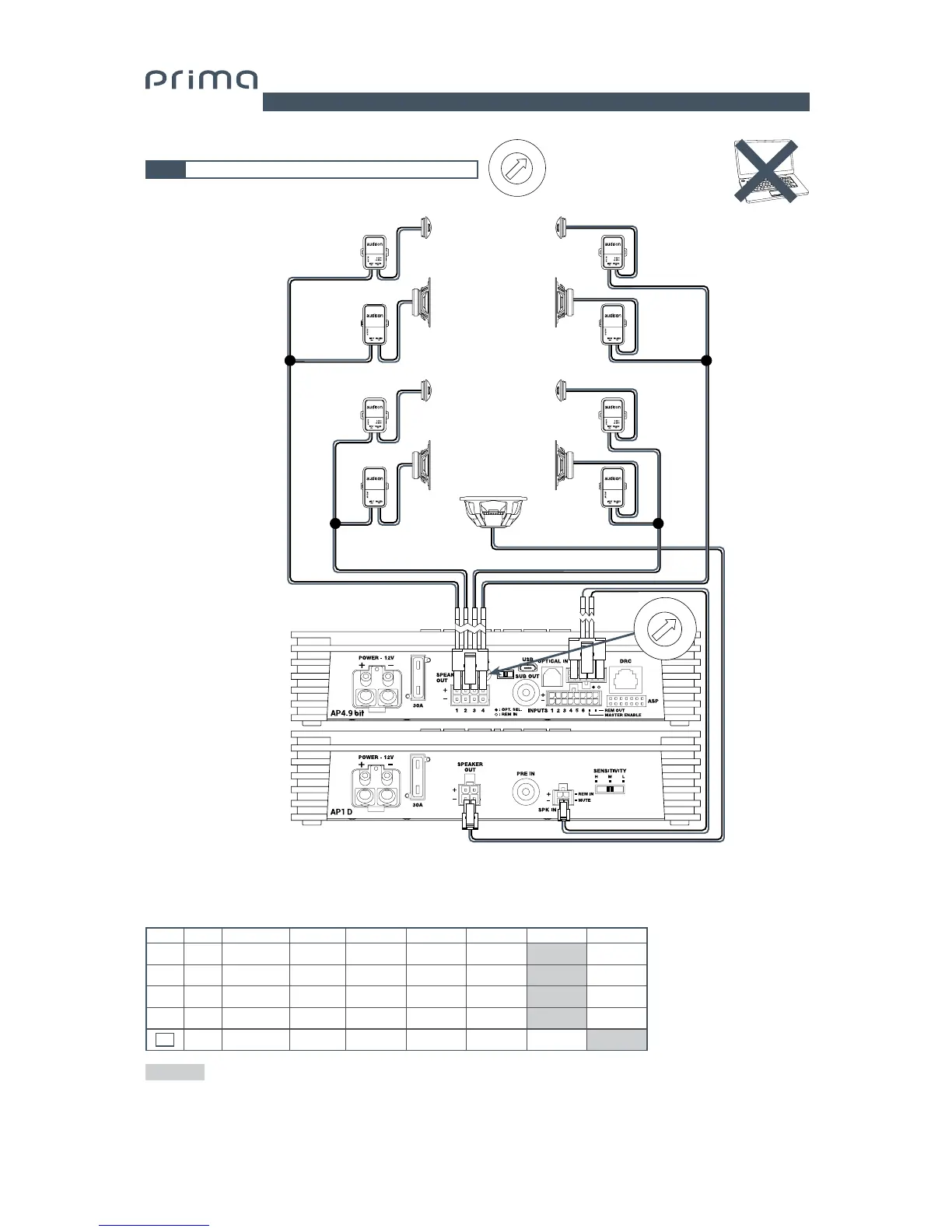

5.4.2 PRESET 1: FRONT + REAR + EXTERNAL SUBWOOFER
1
2
3
4
5
6
7
0
SUBWOOFER
REAR
LEFT
FRONT
LEFT
REAR
RIGHT
FRONT
RIGHT
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
1
2
3
4
5
6
7
0
AP TYPE OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
4.9 bit OUT 1 FRONT FULL LEFT HI PASS Linkwitz 80 Hz @12 dB 82,2 cm 70 W 130 W
4.9 bit OUT 2 FRONT FULL RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 70 W 130 W
4.9 bit OUT 3 REAR FULL LEFT HI PASS Linkwitz 80 Hz @12 dB 82,2 cm 70 W 130 W
4.9 bit OUT 4 REAR FULL RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 70 W 130 W
1 D OUT 1 SUB WOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm 280 W 520 W
OUTPUT CONFIGURATION:
= Max power at suggested loads: 800 W
Out 1 (+)
Out 1 (-)
Out 4 (+)
Out 3 (+)
Out 2 (+)
Out 1 (-)
Out 1 (+)
Out 4 (-)
Out 3 (-)
Out 2 (-)
To Next Page
