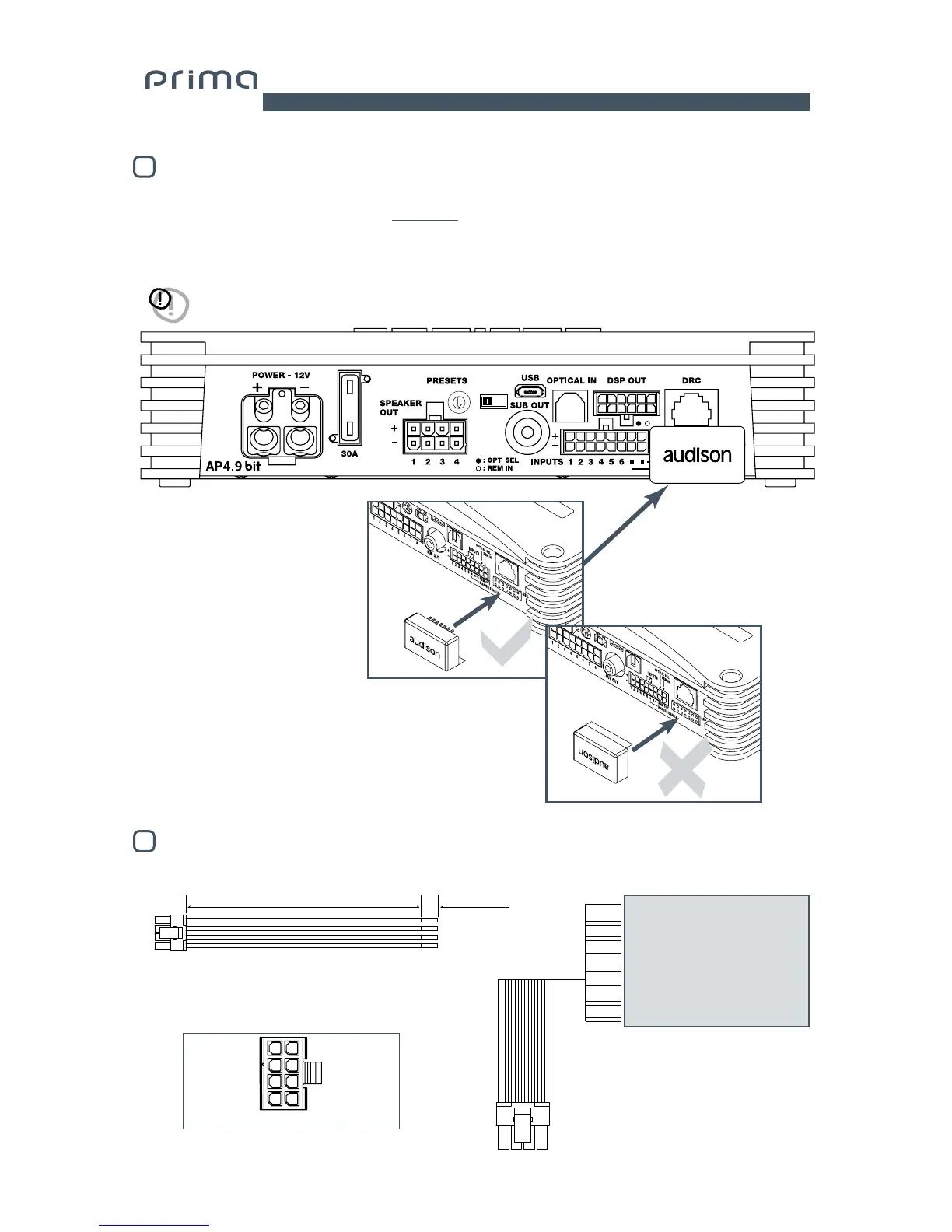

ASP AUTOMATIC SPEAKER PRESENCE
Input for ASP module if using signals coming from OEM sources. This module simulates the load of the OEM
factory system speakers, allowing proper interface allowing proper interfacing between the source amplified
outputs and the AP4.9 bit analog inputs.
(see sec. 7.3.4)
The ASP module is optional and is required only in some cases when installing with factory OEM sources.
WARNING: If interfacing AP4.9 bit with sources equipped with PRE OUT outputs, this module must not be used.
4
3
ASP
OK
ASP
NO
SPEAKER OUT.
AP4.9 bit comes with a 8 pole multipolar connector to manage the 4 power output channels.
4
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
1: white/black OUT 4 -
5: white OUT 4 +
2: white/black OUT 3 -
6: white OUT 3 +
3: white/black OUT 2 -
7: white OUT 2 +
4: white/black OUT 1 -
8: white OUT 1 +
OUT 4 - 1
OUT 3 - 2
OUT 2 - 3
OUT 1 - 4
5 OUT 5 +
6 OUT 4 +
7 OUT 3 +
8 OUT 2 +
200 mm / 7.87 in.
10 mm / 0.39 in
.
FRONT VIEW
