Prima audison AP4.9 bit - Drc

USER’S MANUAL
9
AP4.9 bit /
8
DRC.
Connection terminal for remote control of the functions (OPTIONAL) on AP4.9 bit. (see sec. 5.5 - sec. 9).

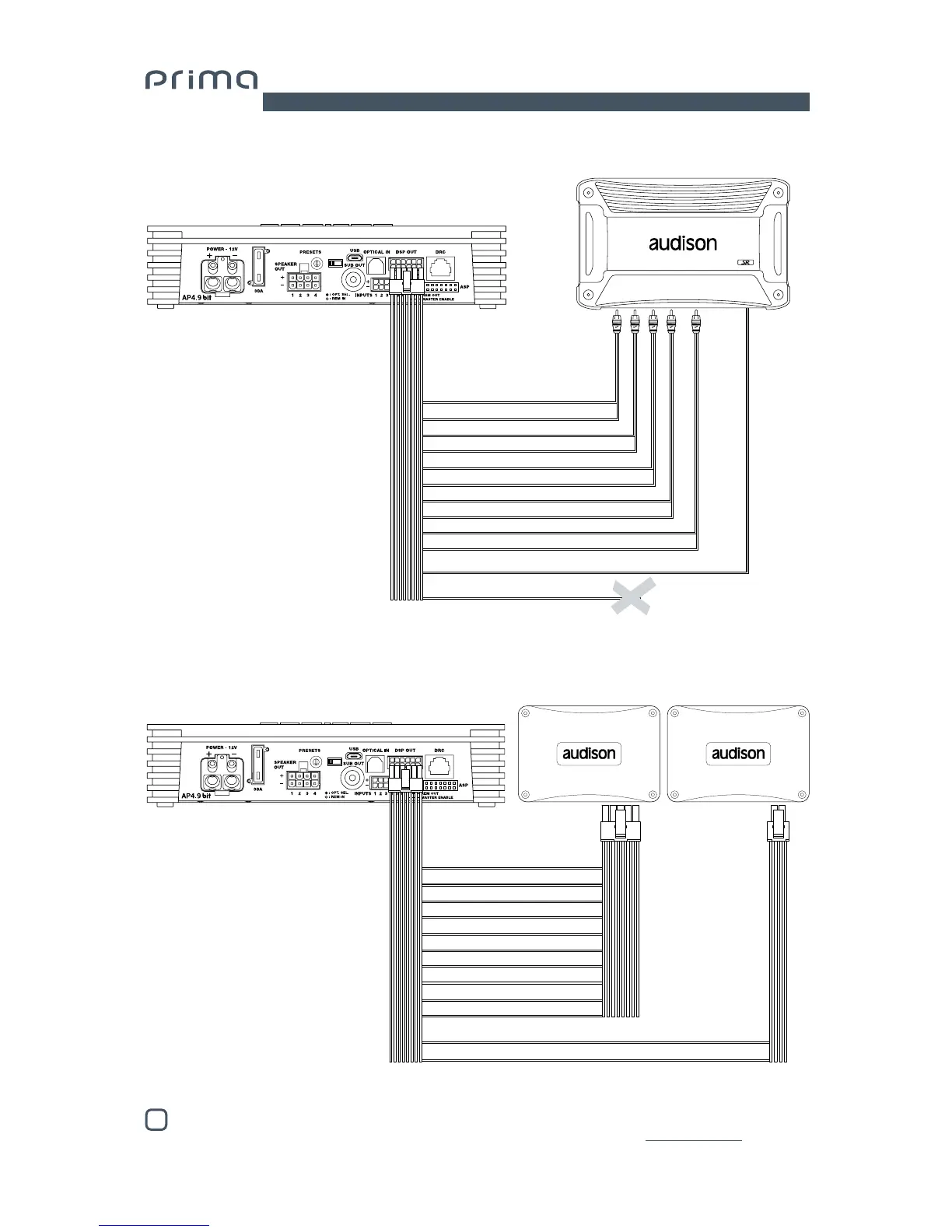

3. Audison AP4.9 bit + Audison AP4 D + AP1 D with connection through APL 2 (optional)
4
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
2. Audison AP4.9 bit + 5 channel Amplifier
CH1 CH2 CH3 CH4
SUB
REM IN
1: white OUT 5 +
7: white/black OUT 5 -
2: gray OUT 6 +
8: gray/black OUT 6 -
3: green OUT 7 +
9: green/black OUT 7 -
4: violet OUT 8 +
10: violet/black OUT 8 -
5: orange SUB +
11: orange/black SUB -
6: blue REMOTE OUT
12: blu/white MUTE
1 10
7 5
2 9
8 4
3 8
9 3
4 7
10 2
6 6
12 1
5
11
5 Channel Amplifier
AP4 D AP1 D
N. A.
