Prima audison AP4.9 bit - Preset 5: 3 Way Active Front + Rear + Subwoofer

USER’S MANUAL
20
AP4.9 bit /
5
MEMORY CONFIGURATION:
Mamory A: Acustic
Mamory B: Rhythm
*
Listening Point: Driver
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
PRE IN
LRLR
SENSITIVITY
IN A IN B
SPK IN
1234
ART

 

 
POWER - 12V
30A

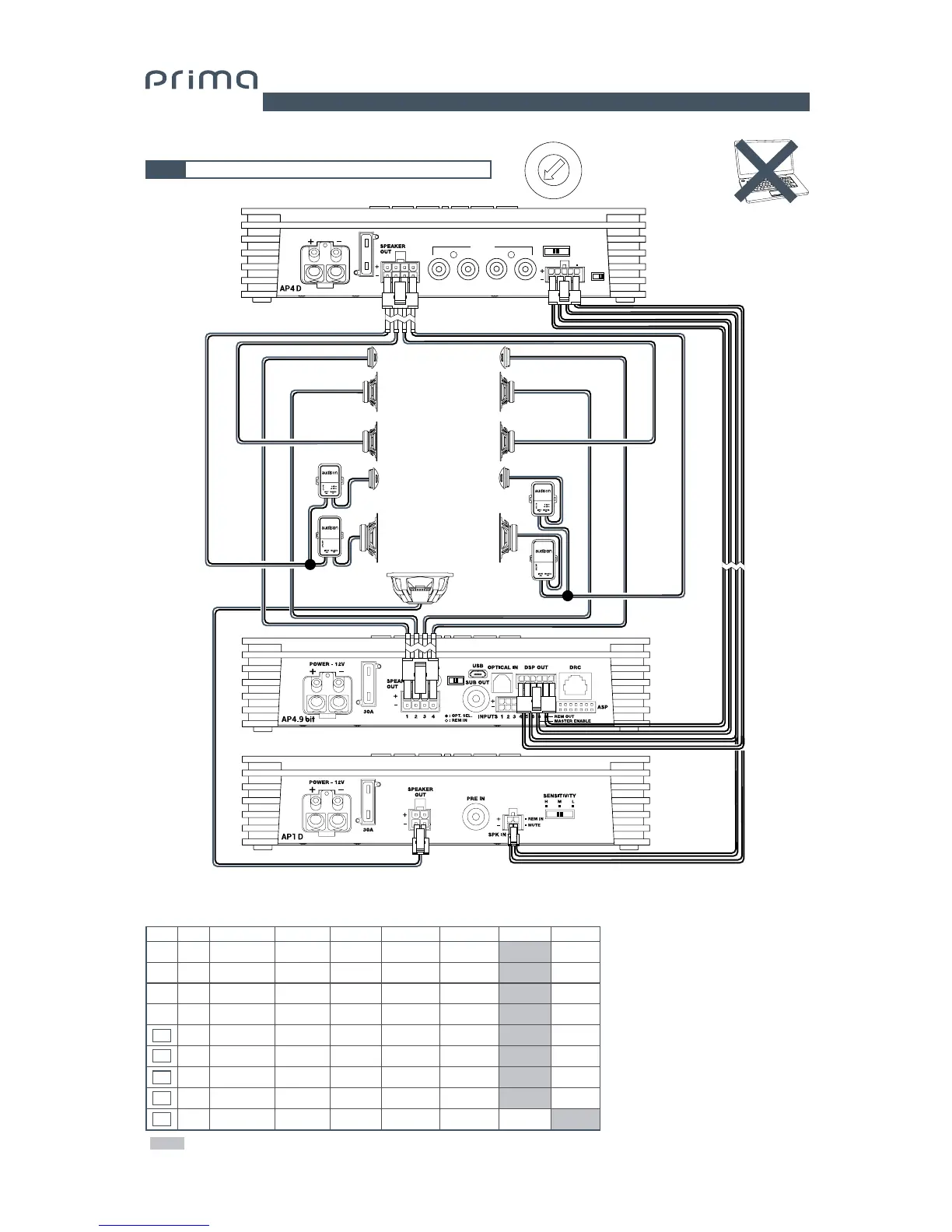

5.4.6 PRESET 5: 3 WAY ACTIVE FRONT + REAR + SUBWOOFER
1
2
3
4
5
6
7
0
Out 1 (+)
Out 1 (+)
Out 3 (+) Out 2 (+) Out 1 (+) Out 4 (+)
Out 4 (+) Out 3 (+) Out 2 (+) Out 1 (-)
Out 1 (-)
Out 3 (-) Out 2 (-) Out 1 (-) Out 4 (-)
Out 4 (-) Out 3 (-) Out 2 (-)
SUBWOOFER
REAR
LEFT
WF
LEFT
FRONT
MD
LEFT
FRONT
TW
LEFT
FRONT
WF
RIGHT
FRONT
MD
RIGHT
FRONT
TW
RIGHT
FRONT
REAR
RIGHT
INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Mamory A: Acustic
Mamory B: Rhythm
*
Listening Point: Driver
= Max power suggested Loads: 1080 W
OUTPUT CONFIGURATION:
AP TYPE OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
4.9 bit OUT 1
FRONT TW LEFT HI PASS Linkwitz 3000 Hz @12 dB 82,2 cm 70 W 130 W
4.9 bit OUT 2
FRONT TW RIGHT HI PASS Linkwitz 3000 Hz @12 dB 116,2 cm 70 W 130 W
4 D OUT 3 REAR LEFT HI PASS Linkwitz 80 Hz @12 dB 62,3 cm 70 W 140 W
4 D OUT 4 REAR RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 70 W 140 W
4.9 bit OUT 4 FRONT MD RIGHT BAND PASS Linkwitz
500 Hz @12 dB
116,2 cm 70 W 130 W
3000 HZ @ 12 dB
4.9 bit OUT 3 FRONT MD LEFT BAND PASS Linkwitz
500 Hz @12 dB
82,2 cm 70 W 130 W
3000 HZ @ 12 dB
4 D OUT 2 FRONT WF RIGHT BAND PASS Linkwitz
80 Hz @12 dB
116,2 cm 70 W 140 W
500 HZ @ 12 dB
4 D OUT 1 FRONT WF LEFT BAND PASS Linkwitz
80 Hz @12 dB
82,2 cm 70 W 140 W
500 HZ @ 12 dB
1 D OUT 1 SUBWOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm 280 W 520 W
APL 2 (optional)
