Prima audison AP4.9 bit - Preset 6: 2 Way Active Front + Rear + Subwoofer

USER’S MANUAL
21
AP4.9 bit /
5
5.4.7 PRESET 6: 2 WAY ACTIVE FRONT + REAR + SUBWOOFER
1
2
3
4
5
6
7
0
INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Mamory A: Acustic
Mamory B: Rhythm
*
Listening Point: Driver
= Max power suggested Loads: 1320 W
AP TYPE OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
4.9 bit OUT 1
FRONT TW LEFT HI PASS Linkwitz 3000 Hz @12 dB 82,2 cm 70 W 130 W
4.9 bit OUT 2
FRONT TW RIGHT HI PASS Linkwitz 3000 Hz @12 dB 116,2 cm 70 W 130 W
4.9 bit OUT 3
REAR LEFT HI PASS Linkwitz 80 Hz @12 dB 62,3 cm 70 W 130 W
4.9 bit OUT 4
REAR RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 70 W 130 W
1 D OUT 1 SUBWOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm 280 W 520 W
4 D OUT 3+ 4- FRONT WF RIGHT BAND PASS Linkwitz
80 Hz @12 dB
116,2 cm 260 W N. A.
3000 HZ @ 12 dB
4 D OUT 1+ 2- FRONT WF LEFT BAND PASS Linkwitz
80 Hz @12 dB
82,2 cm 260 W N. A.
3000 HZ @ 12 dB

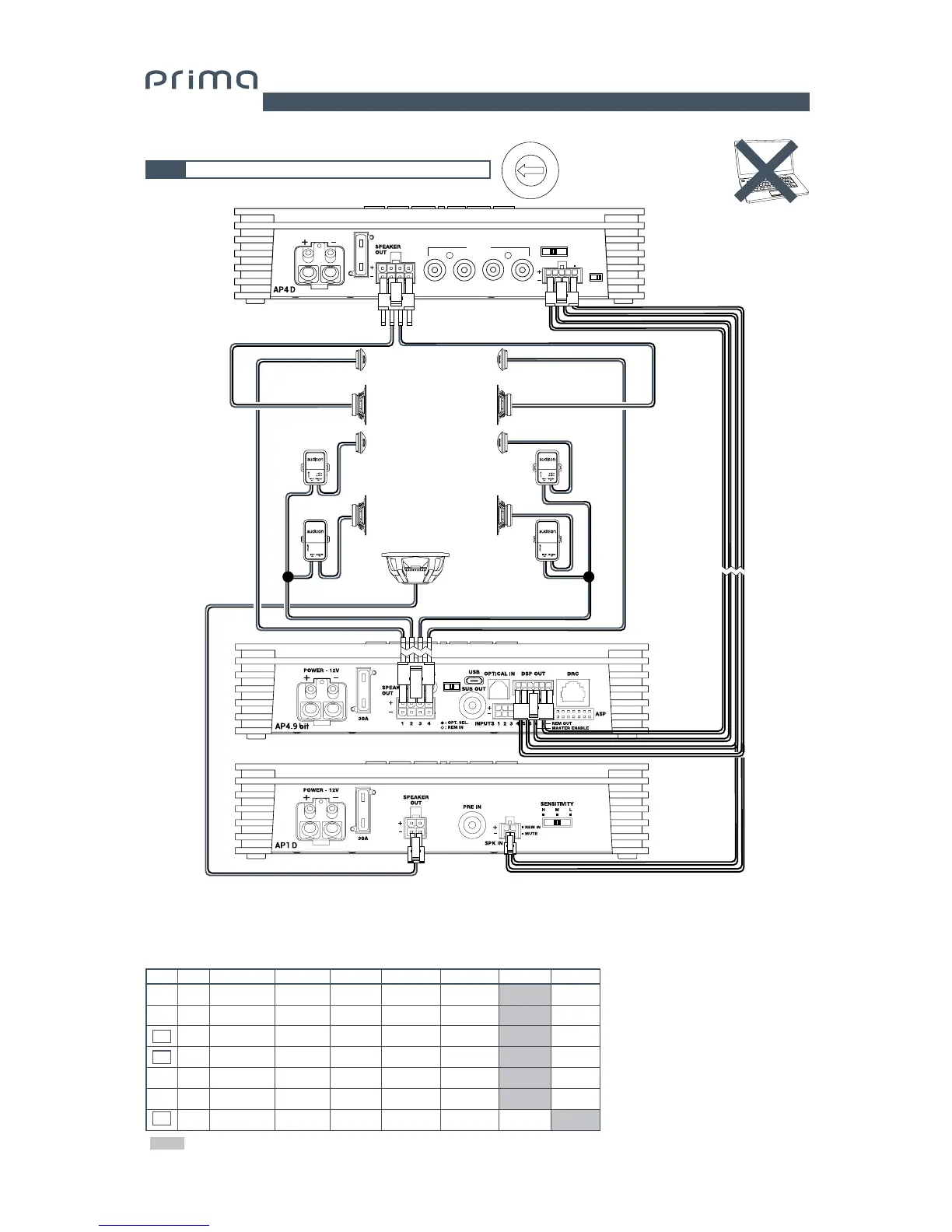

OUTPUT CONFIGURATION:
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
PRE IN
LRLR
SENSITIVITY
IN A IN B
SPK IN
1234
ART

 

 
POWER - 12V
30A
Out 1 (+)
Out 1 (+)
Out 1 (+) Out 3 (+)
Out 4 (+) Out 3 (+) Out 2 (+) Out 1 (-)
Out 1 (-)
Out 2 (-) Out 4 (-)
Out 4 (-) Out 3 (-) Out 2 (-)
SUBWOOFER
REAR
LEFT
WF
LEFT
FRONT
MD
LEFT
FRONT
TW
LEFT
FRONT
WF
RIGHT
FRONT
MD
RIGHT
FRONT
TW
RIGHT
FRONT
REAR
RIGHT
APL 2 (optional)
