Prima audison AP4.9 bit - Preset 2: Front + Bridge Subwoofer

USER’S MANUAL
17
AP4.9 bit /
5
INPUT CONFIGURATION:
Master input: Front + Rear
Aux input: In1 + In 2
Optical: S/P-DIF PCM 96kHz/24 bit max
MEMORY CONFIGURATION:
Mamory A: Acustic
Mamory B: Rhythm
*
Listening Point: Driver
0
1
2
3
4
5
6
7
UPGRADE
OFF ON
5.4.3 PRESET 2: FRONT + BRIDGE SUBWOOFER
1
2
3
4
5
6
7
0
= Max power suggested Loads: 400 W
OUTPUT TYPE CUT FILTER FILTER TYPE CUT FREQUENCY TIME ALIGNMENT
*
POWER @ 4Ω POWER @ 2Ω
OUT 1 FRONT LEFT HI PASS Linkwitz 80 Hz @12 dB 82,2 cm 70 W 130 W
OUT 2 FRONT RIGHT HI PASS Linkwitz 80 Hz @12 dB 116,2 cm 70 W 130 W
OUT 3 + 4 - SUBWOOFER LO PASS Linkwitz 80 Hz @12 dB 121,8 cm 260 W N. A.

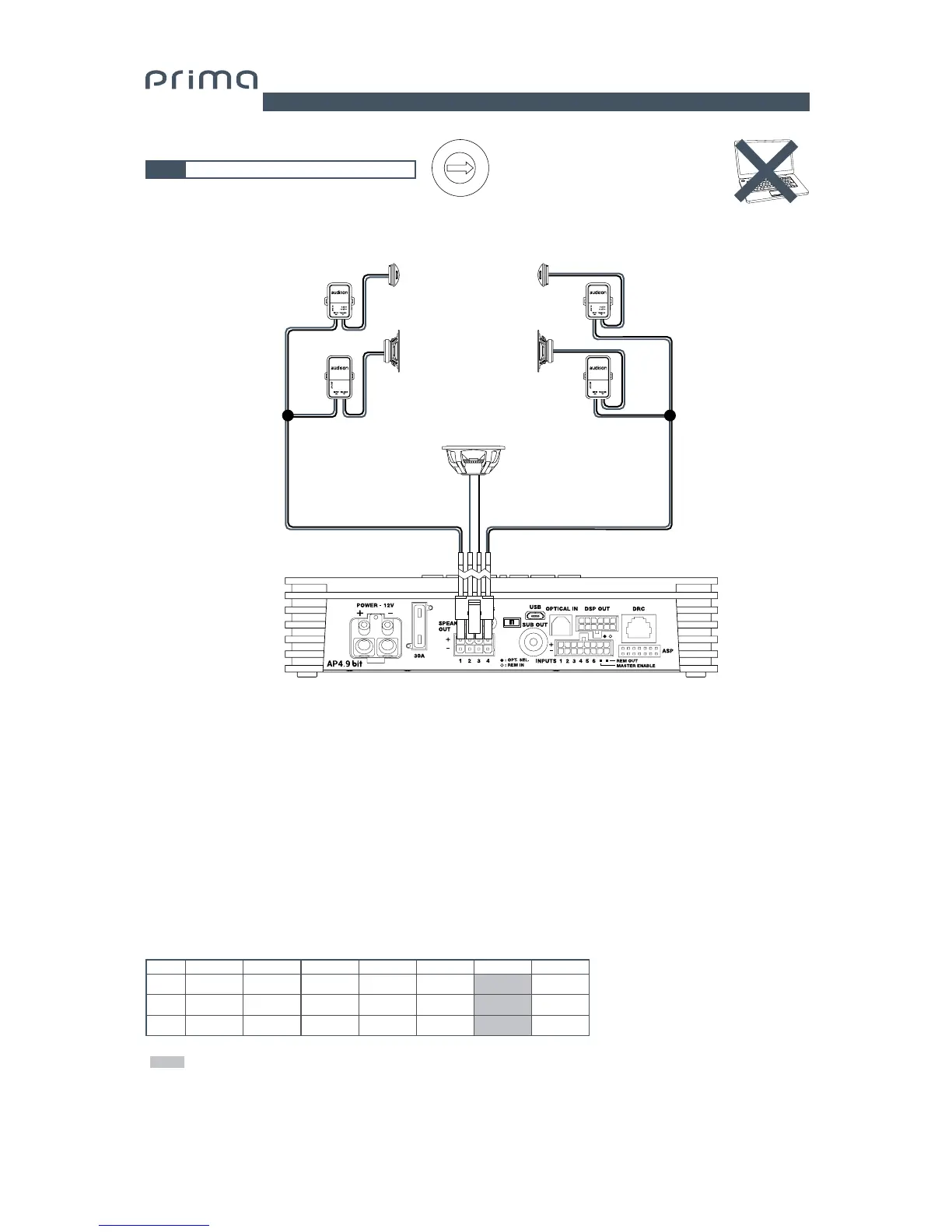

OUTPUT CONFIGURATION:
SUBWOOFER
Out 1 (+) Out 2 (+) Out 3 (+) Out 1 (-) Out 2 (-) Out 4 (-)
FRONT
LEFT
FRONT
RIGHT
