In the first window that appears (“Select power source”, image 23) please check your power source, with AC power units
(5A or 14A) or with a battery. If you use a battery, please insert in the “Battery parameters” area to the right the battery
capacity in Ampere and the charge status. Then click OK.
page 37

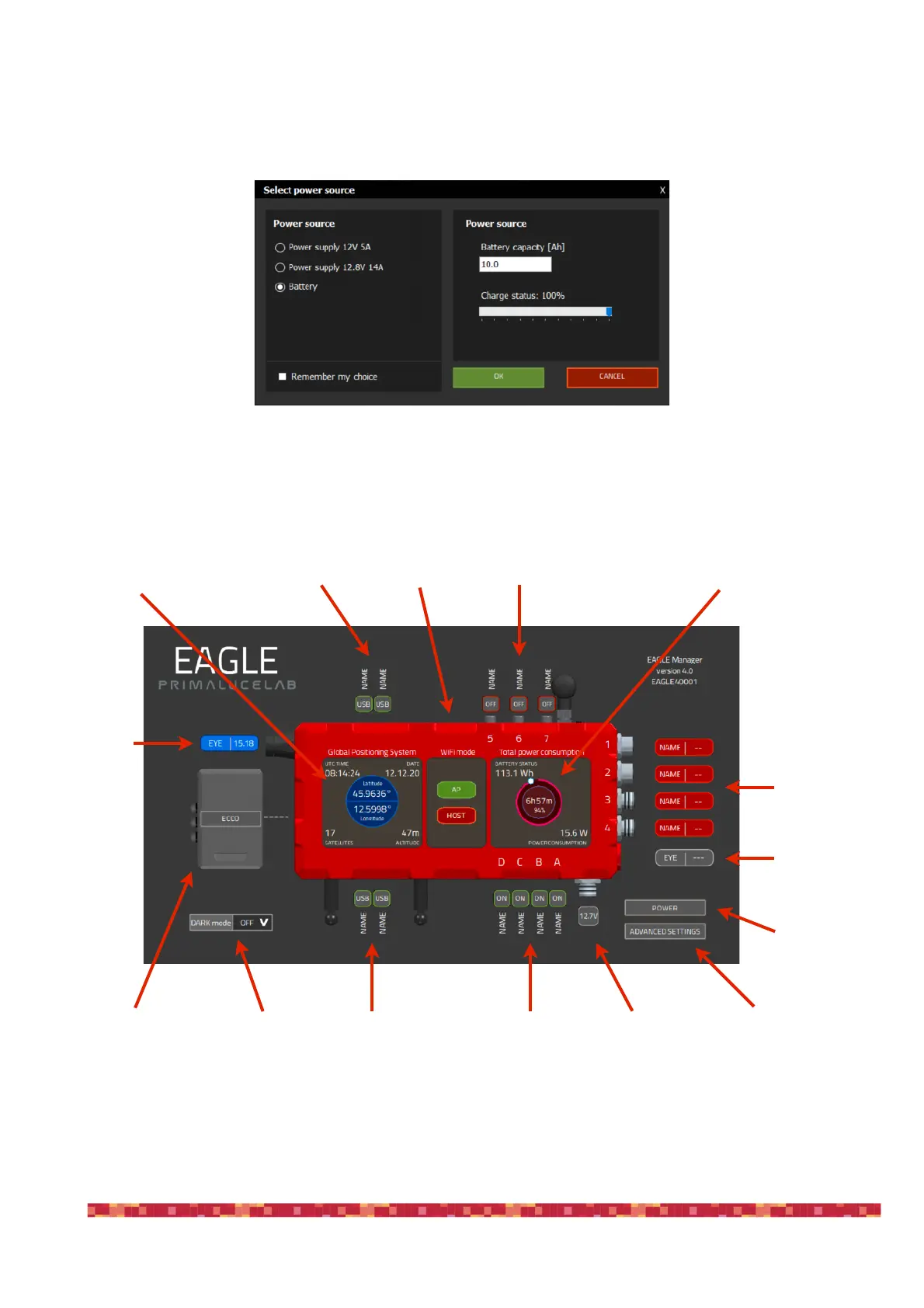

Image 23: setting the EAGLE power source
USB 3.0
ports
USB 2.0
ports
USB 3.0
ports
0-12V power
out ports
12V power
OUT ports
GPS
sensor
Power consumption
and battery life
12V power
IN port
EAGLE Manager
settings
Remote ON /
OFF switch
Image 24: EAGLE Manager interface
Optional
ECCO module
DARK
mode
EYE rear
sensor
EYE front
sensor
WiFi
mode
