-!connect or disconnect every power out port of EAGLE
Leaving power connected to your devices (for example, mount, camera, filter wheel, etc.) allows you to activate them re-
motely when you turn on the entire system. Each port shows the current consumption that can also be monitored over
time.

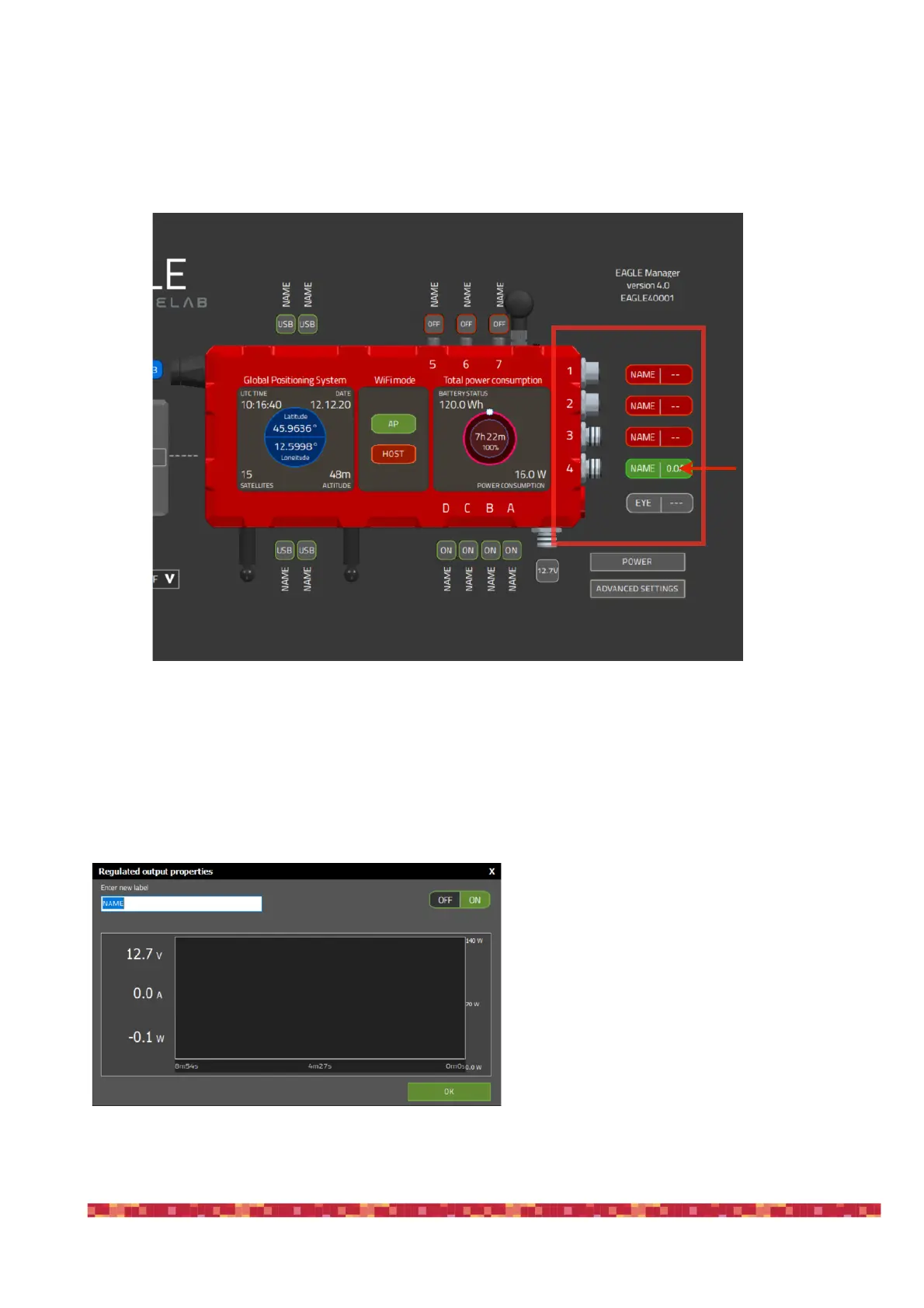

Click with the left mouse button (or a single tap on the screen of tablet or smartphone used for remote control) on one of
the 12V power out ports to activate it, the port will become green and it will power the connected device. Click with the
right mouse button (or a 2 finger tap on the screen of tablet or smartphone used for remote control) on one of the 12V
power out ports to see advanced options of the selected power out port (image 26).
Here you can insert the name of the port in the field
“Enter new label”, check for power consumption of the
connected device and check for power consumption
(Watt) in time. Click OK button to confirm and exit from
the window.
