ADVANCED CONNECTING
This chapter explains the fully possibilities of how
to connect the SPA21 to the other components in
your system.

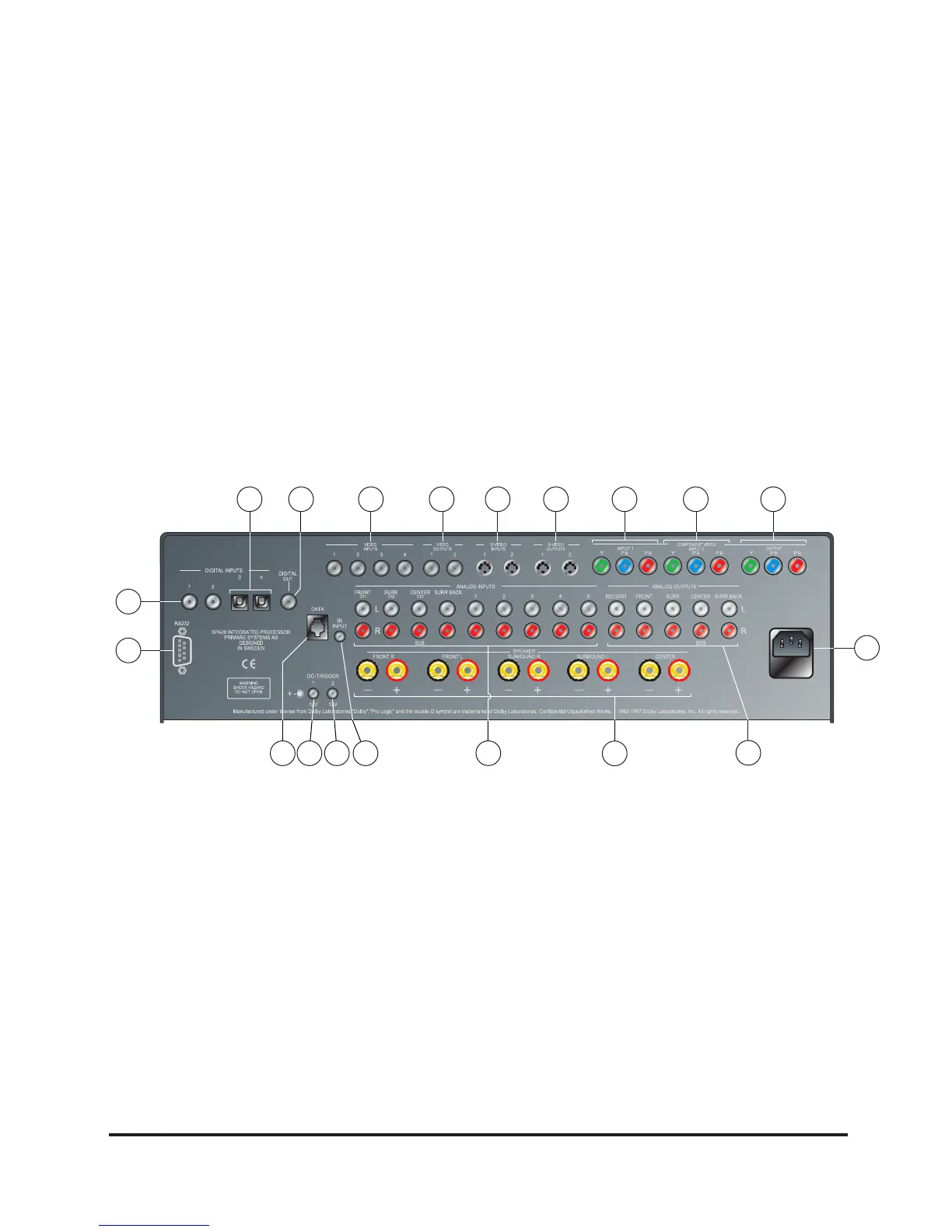

Back panel connections
A. RS232 input
B. Digital SPDIF inputs
C. Digital optical TOSlink inputs
D. Digital SPDIF. output
E. Composite video inputs
F. Composite video outputs
G. S-Video inputs
H. S-Video outputs
I. Component video input 1
J. Component video input 2
K. Component video output
L. Main power input and fuse
M. Analog RCA outputs
N. Speaker outputs
O. Analog RCA inputs
P. External IR-input
Q. 12V DC-trigger, controlled by
the menu option.
R. 12V DC-trigger, controlled by
the standby-function.
S. Data input
A
B
C D E F G H I J K
L
MNOPQRS
